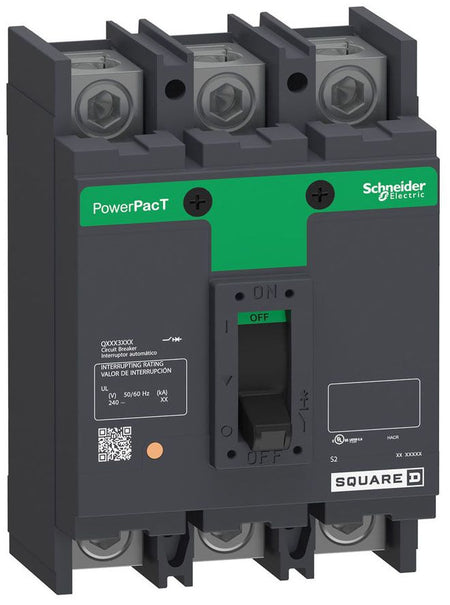

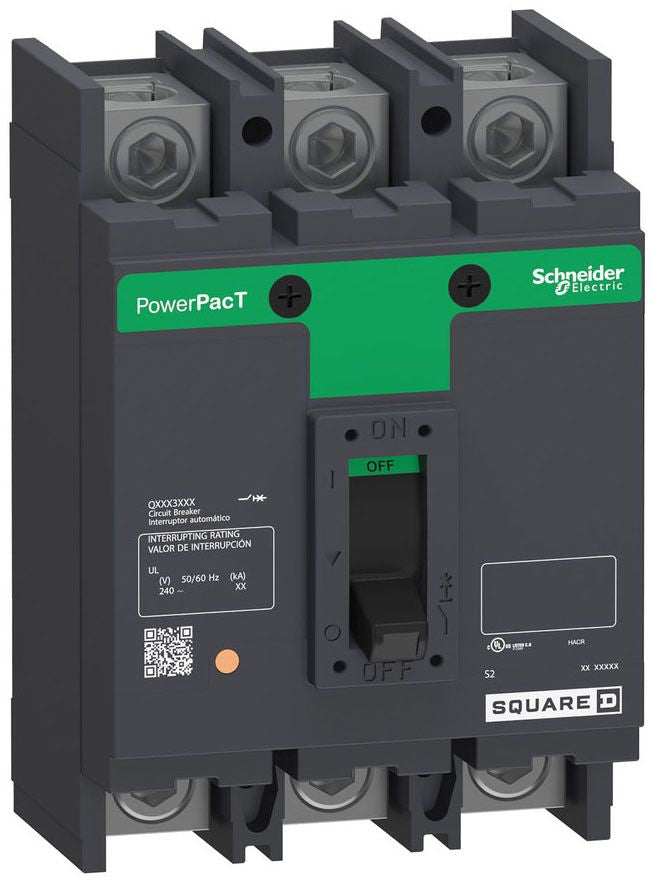

Square D QGL32225 PowerPact Q-Frame Molded Case Circuit Breaker – 225A – 3 Pole – 240V – 65kAIC – Thermal Magnetic – Unit Mount – Lugs

The Square D QGL32225 is a high-performance PowerPact Q-frame molded case circuit breaker designed for heavy-duty power distribution in panelboards and switchboards. It provides reliable overload and short-circuit protection using a thermal magnetic trip system and is rated for high interrupting capacity up to 65kA at 240VAC. Its unit mount design with line and load lugs ensures secure installation in industrial and commercial electrical systems.

Electrical Ratings

• Current Rating: 225 A
• Voltage Rating: 240 VAC
• Maximum AC Voltage: 240 V
• Frequency: 50/60 Hz
• Phase: 3 Phase
• Poles: 3 Pole
• Interrupting Rating: 65 kA @ 240 VAC (UL/CSA/NOM)
• Interrupting Rating (IEC): 10 kA / 5 kA @ 240 VAC

Protection and Function

• Trip Technology: Thermal Magnetic
• Trip Function: Long-Time and Instantaneous
• Protection Type: Overload and Short-Circuit Protection
• Trip Mechanism: Fixed thermal and magnetic settings
• Application: Power distribution protection in panelboards and switchboards

Configuration and Function

• Series: PowerPact Q (QG Frame)
• Model: QGL32225
• Frame Type: Q Frame
• Mounting Type: Unit Mount
• Connection Type: Line lug / Load lug
• Phase Connection: ABC
• Sub-category: Non-interchangeable trip molded case breaker

Mechanical and Physical Characteristics

• Dimensions: 4.5 in (W) × 3.93 in (D) × 6.47 in (H)
• Wire Range: 4 AWG to 300 kcmil (Copper/Aluminum)
• Terminal Type: Line lug and load lug
• Compact industrial molded case construction
• Designed for panelboard and switchboard integration
• Heavy-duty industrial enclosure design

Standards and Certifications

• UL Listed
• CSA Certified
• CE Certified
• NOM compliant
• RoHS compliant
• Manufacturer: Schneider Electric / Square D
• UNSPSC: 39121601
