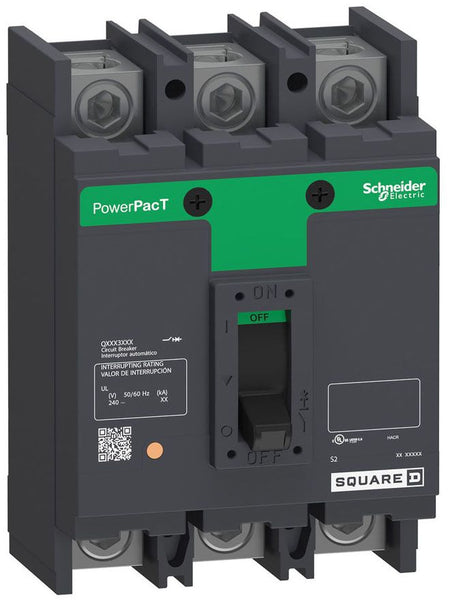

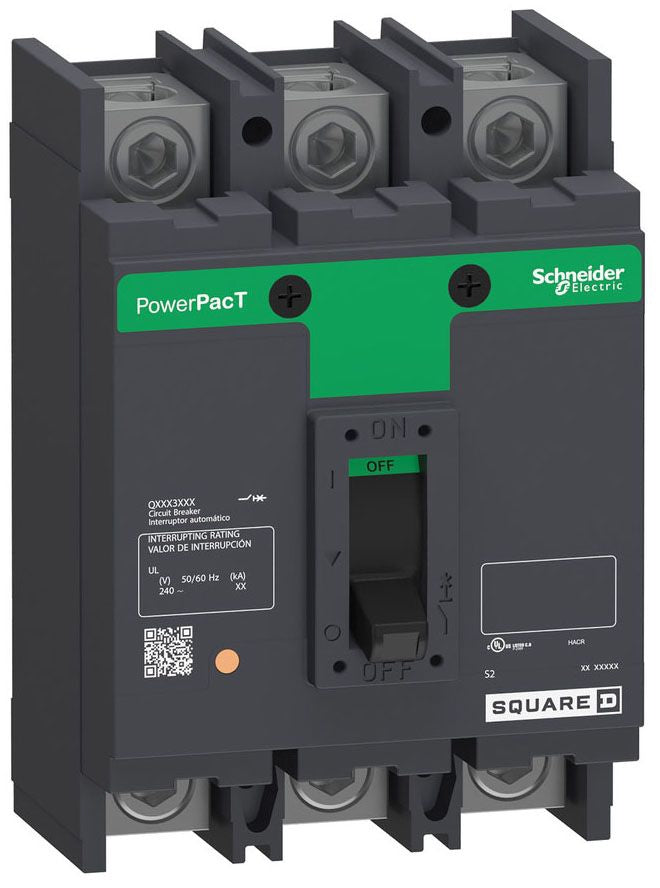

Square D QGP32225TM PowerPact Q-Frame Molded Case Circuit Breaker – 225A – 3 Pole – 240V – 65kAIC – Thermal Magnetic – Unit Mount – Lugs/Stud Terminals

The Square D QGP32225TM is a PowerPact Q-frame molded case circuit breaker designed for high-capacity power distribution systems in industrial and commercial applications. It provides reliable overload and short-circuit protection using a thermal magnetic trip system and is rated for high interrupting capacity up to 65kA at 240VAC. With dual-end lug/stud termination and unit mounting design, it supports flexible installation in panelboards and metering/power distribution equipment.

Electrical Ratings

• Current Rating: 225 A
• Voltage Rating: 240 VAC
• Frequency: 50/60 Hz
• Phase: 3 Phase
• Poles: 3 Pole
• Interrupting Rating: 65 kA @ 240 VAC
• Breaking Capacity Code: G

Protection and Function

• Trip Technology: Thermal Magnetic
• Trip Function: Long-Time and Instantaneous (Fixed)
• Protection Type: Overload and Short-Circuit Protection
• Application: Power distribution systems, panelboards, switchboards, metering equipment

Configuration and Function

• Series: PowerPact Q (QG Frame)
• Model: QGP
• Catalog Number: QGP32225TM
• Mounting Type: Unit Mount
• Terminal Type: Lug (Off End) / Stud (On End)
• Phase Connection: ABC
• Sub-category: Standard trip molded case breaker
• Equipment Compatibility: Panelboards, switchboards, Meter-Pak systems

Mechanical and Physical Characteristics

• Dimensions: 4.5 in (W) × 3.93 in (D) × 6.47 in (H)
• Wire Range: 4 AWG to 300 kcmil (Aluminum/Copper)
• Construction: Molded case thermal magnetic breaker
• Installation: Unit-mounted, bottom-of-panel compatible
• Compact industrial-grade design for high fault duty applications
• RoHS compliant construction

Standards and Certifications

• UL Listed
• CSA Certified
• IEC Compliant
• RoHS Compliant
• Manufacturer: Schneider Electric / Square D
• UNSPSC: 39121601
