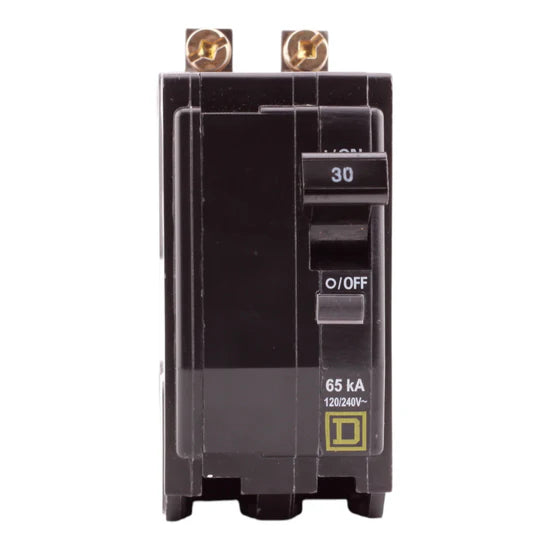

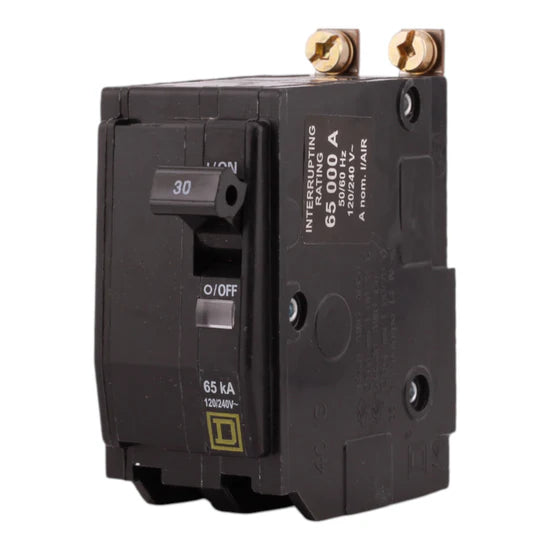

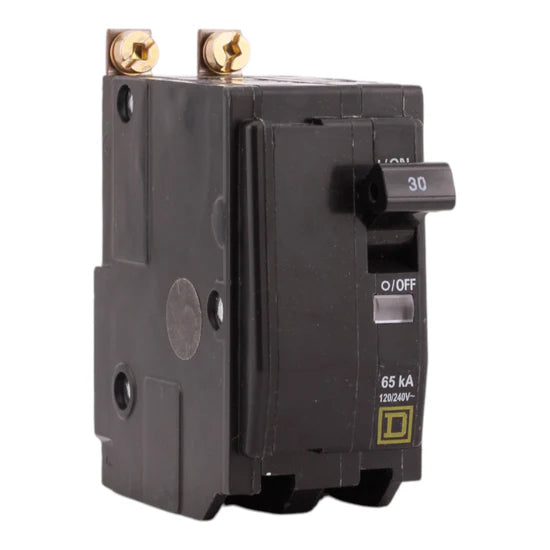

Square D QHB230 30A 2-Pole Standard Breaker – Bolt-On – 120/240V

The Square D QHB230 bolt-on circuit breaker delivers reliable 30A, 2-pole standard protection for 120/240V circuits in QO loadcenters. Designed for residential and commercial applications, it features a high 65kA interrupt rating for enhanced safety and robust overcurrent protection.

Voltage and Rating

• Amperage: 30 Amps
• Poles: 2-Pole
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 65 kAIC

Key Specifications

• Breaker Type: Standard
• Mounting Type: Bolt-On
• Product Range: QO
• Application: Residential and commercial branch circuit protection
• Connections Terminals: Pressure plate
• Wire Size Range: AWG 14–8 Cu/Al

Technical Specifications

• Tightening Torque: 40.7 lb-in
• Dimensions: Height: 3.0 in, Width: 1.5 in, Depth: 2.9 in
• Weight: 0.560 lbs
• Certifications: UL Listed, CSA Certified

Product Data

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: QHB230
  • UPC: 785901341642
