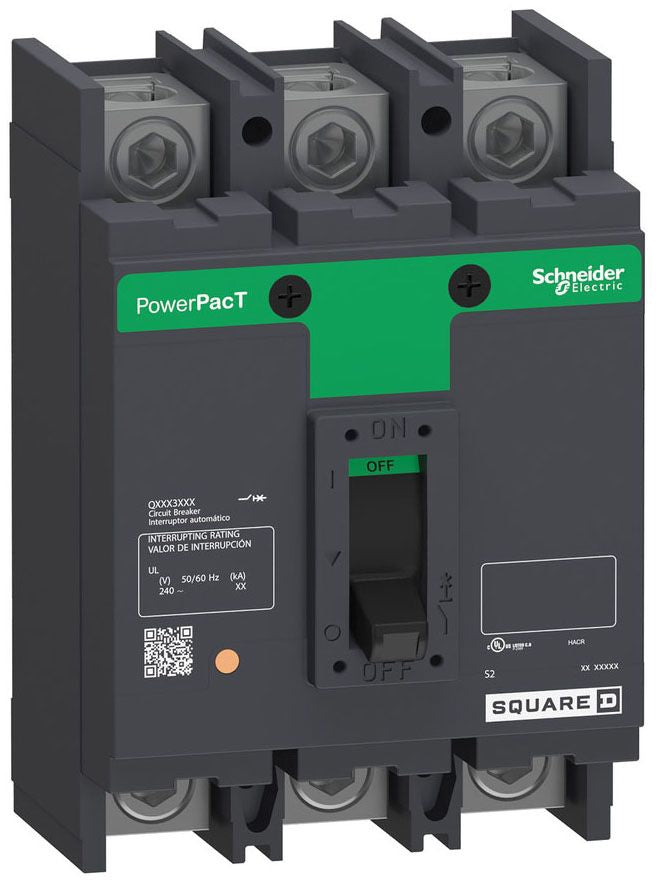

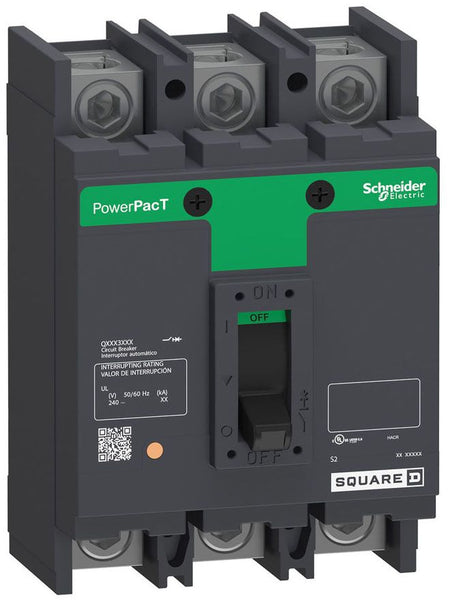

Square D QJL32070 PowerPact Q-Frame Molded Case Circuit Breaker – 70A – 3 Pole – 240V – 100kAIC – Feed-Thru – Thermal Magnetic

The Square D QJL32070 is a PowerPact Q-frame molded case circuit breaker designed for high-performance overcurrent protection in industrial and commercial power distribution systems. It provides reliable thermal magnetic protection with long-time and instantaneous trip functions. With a high interrupting rating and feed-thru construction, it is suitable for demanding 240VAC applications requiring strong fault protection and dependable switching performance.

Electrical Ratings

• Current Rating: 70 A
• Voltage Rating: 240 VAC
• Phase: 3 Phase
• Poles: 3 Pole
• Operational Voltage: 240 VAC systems
• Interrupting Rating: 100 kA @ 240 VAC (208Y/120VAC rating noted for system use)
• Continuous Current Rating: 80%

Protection and Function

• Trip Technology: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous
• Protection Type: Overload and Short-Circuit Protection
• Application: Power distribution and switching protection

Configuration and Function

• Series: PowerPact Q Frame
• Model: QJL32070
• Frame Type: Q Frame
• Connection Type: Feed-Thru
• Terminal Configuration: Line and load lugs
• Mounting Style: Unit mount / panelboard compatible
• Sub-category: Molded case breaker (3-pole)

Mechanical and Physical Characteristics

• Compact industrial molded case design
• Push-to-trip manual test function (integral feature)
• High-durability Q-frame construction
• Designed for panelboard and switchboard integration
• Feed-thru lug configuration for flexible wiring layout

Standards and Certifications

• UL Listed
• CSA Certified
• NOM compliant
• IEC certified
• Manufacturer: Schneider Electric / Square D
• UNSPSC: (not provided)
