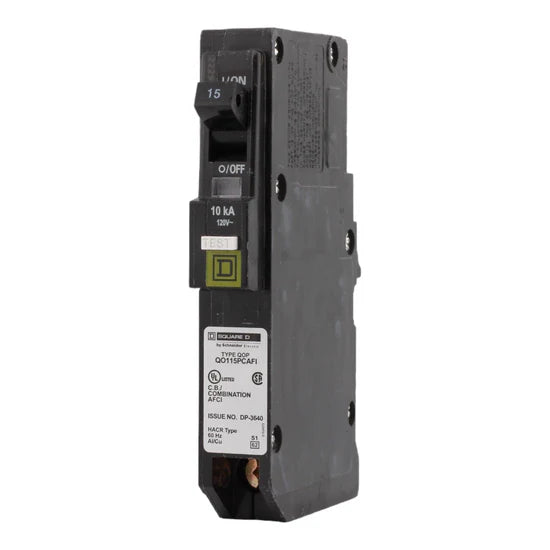

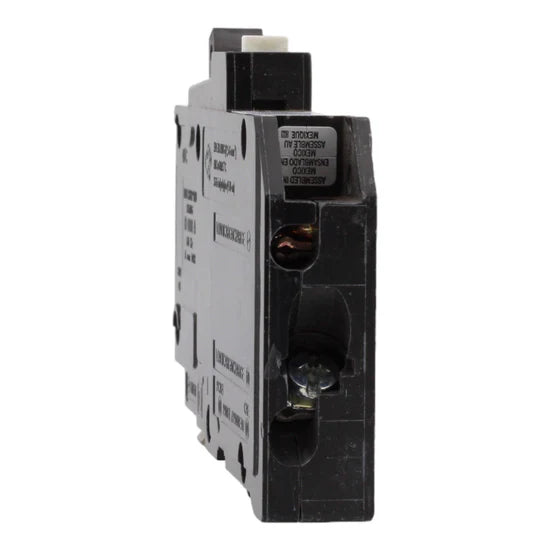

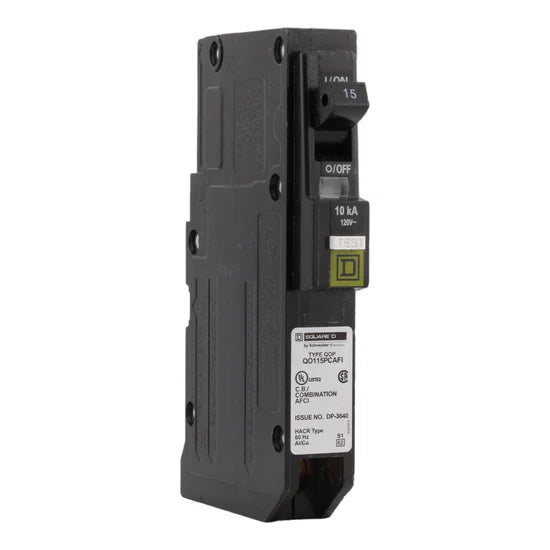

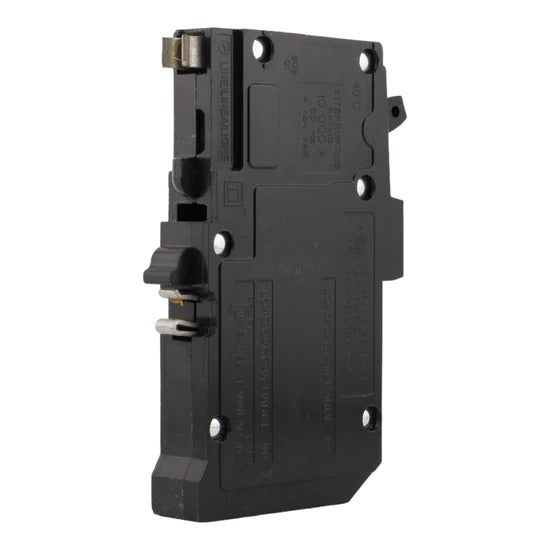

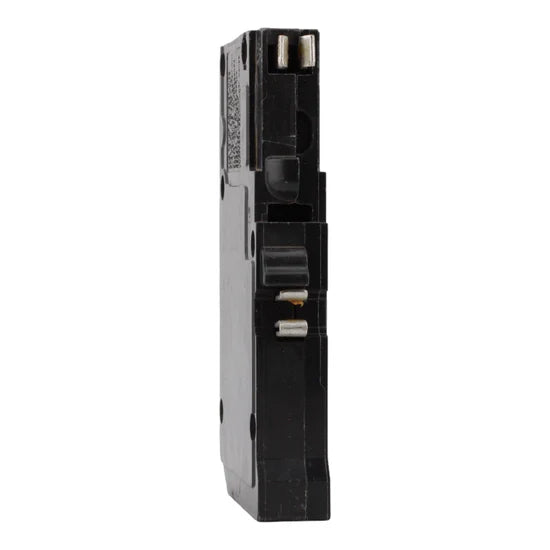

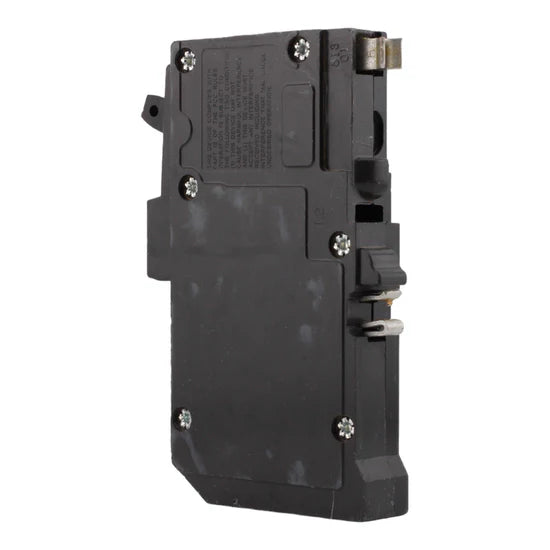

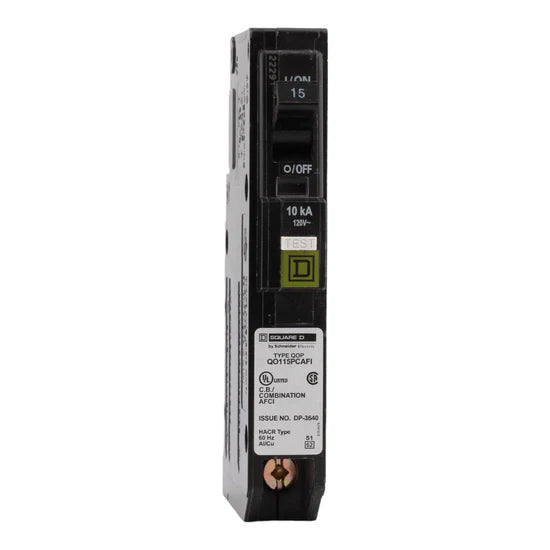

Square D QO QO115PCAFI 15A Single-Pole Arc-Fault Breaker – Plug-On Neutral – 120V AC

The Square D QO115PCAFI is a 15 amp, single-pole Arc-Fault Circuit Interrupter (AFCI) breaker designed for Square D QO load centers. It provides reliable protection by detecting arc faults in 120V circuits, helping to reduce the risk of electrical fires.

Featuring a plug-on neutral connection, installation is fast and efficient, while maintaining safe and accurate operation. This breaker includes long-time and instantaneous trip functions to ensure dependable protection for each branch circuit.

Voltage and Ratings

• Current Rating: 15 Amps
• Voltage Rating: 120 Volts AC
• Interrupting Capacity: 10 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Combination Arc-Fault (AFCI)
• Poles: 1-Pole
• Series: QO
• Mounting Type: Plug-On Neutral
• Application: Arc-fault protection
• Compatible Panels: Square D QO load centers

Technical Specifications

• Wire Size Range: #14–8 AWG
• Terminal Tightening Torque: 20 lb-in
• Connection Type: Plug-On Neutral
• Trip Functions: Long-time and instantaneous
• Operating Mechanism: Thermal-magnetic with AFCI protection
• Interrupt Rating: 10 kAIC

• Dimensions:

  • Height: 4.8 in
  • Width: 0.75 in
  • Depth: 2.9 in

• Weight: 0.5 lbs

• Certifications: UL Listed, CSA Certified, NOM Certified, IEC Certified

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: QO115PCAFI
• UPC: 785901062615
