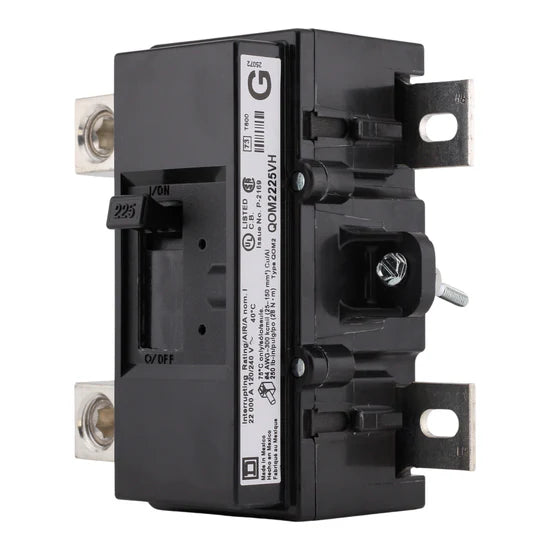

Square D QO QOM2225VH 225A 2P Thermal-Magnetic – Bolt-On – 120/240V

The Square D QO QOM2225VH is a 2-pole bolt-on main circuit breaker providing 225A overcurrent protection for 120/240V AC systems in QO load centers. Featuring thermal-magnetic trip and a 22kA interrupt rating, it ensures reliable protection and quick identification of tripped circuits with VisiTrip indication. Ideal for residential and light commercial applications, it supports high-capacity main service switching with durable lugs for line and load connections.

Electrical Ratings:

• Amperage: 225 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 22 kAIC

Key Specifications:

• Breaker Type: Standard Main Circuit Breaker (Thermal-Magnetic)
• Mounting Mode: Bolt-On

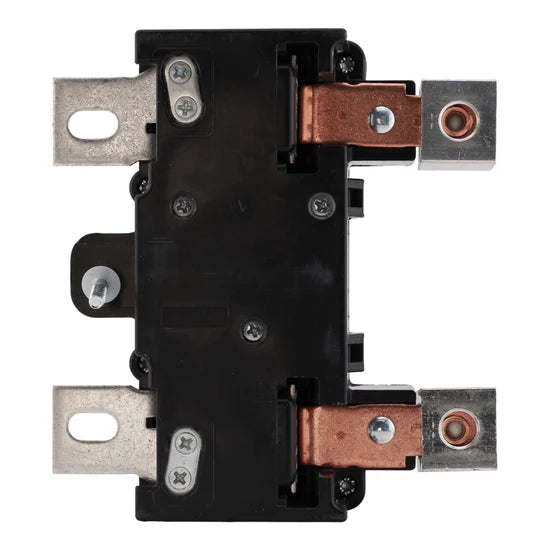

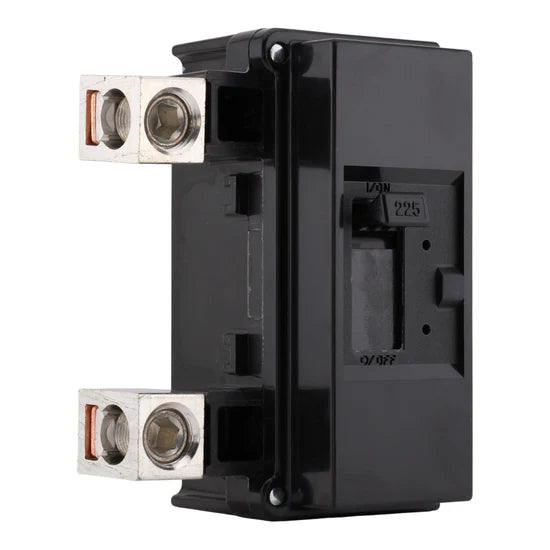

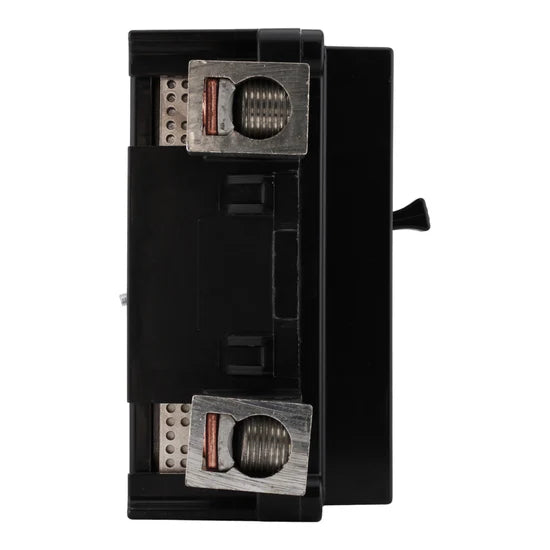

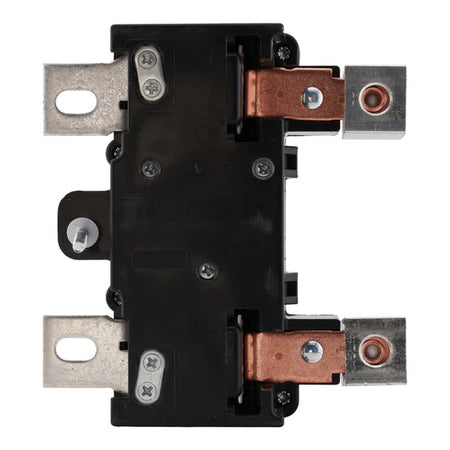

• Connections Terminals: Lugs (line and load side)
• Wire Size: AWG 4–300 kcmil Cu/Al
• Tightening Torque: 53.1 lb-in
• Number of Phases: 1 Phase

Dimensions & Weight:

• • Height: 5.6 in
  • Width: 3.6 in
  • Depth: 5.08 in
  • Weight: 2.668 lbs

Certifications:

• UL Listed
• CSA Certified

Product Data:

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Range: QO (for Square D QO load centers and equipment)
  • Model Number: QOM2225VH
  • UPC: 785901004073
