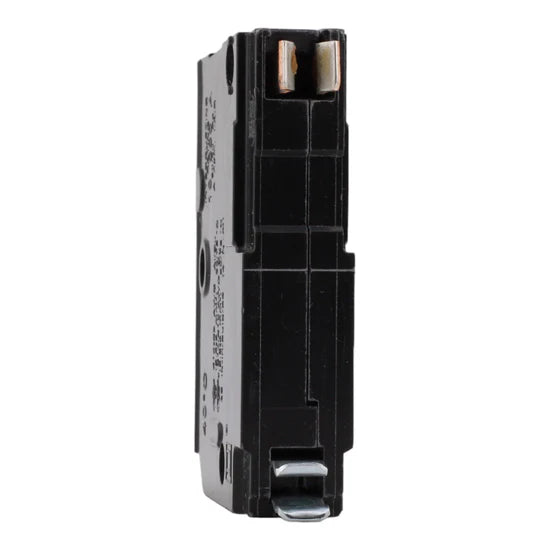

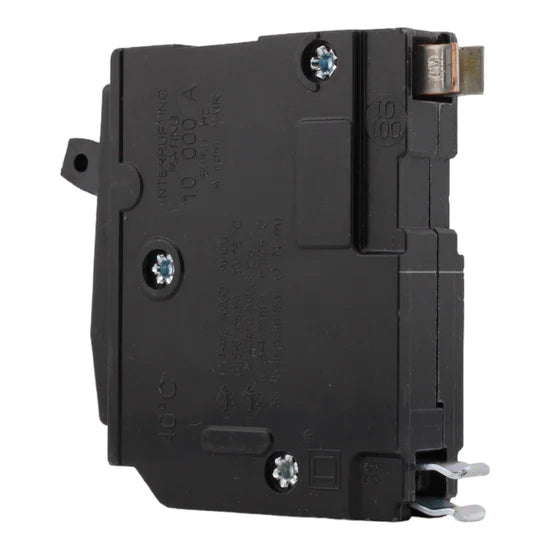

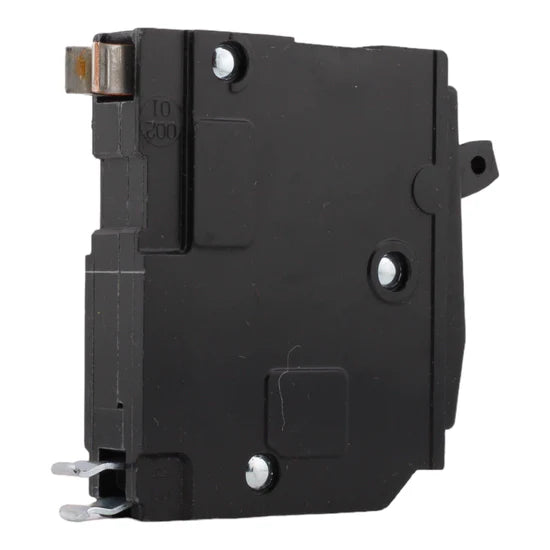

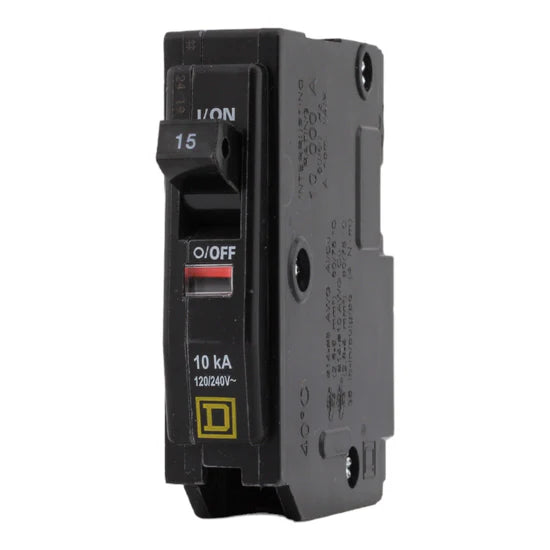

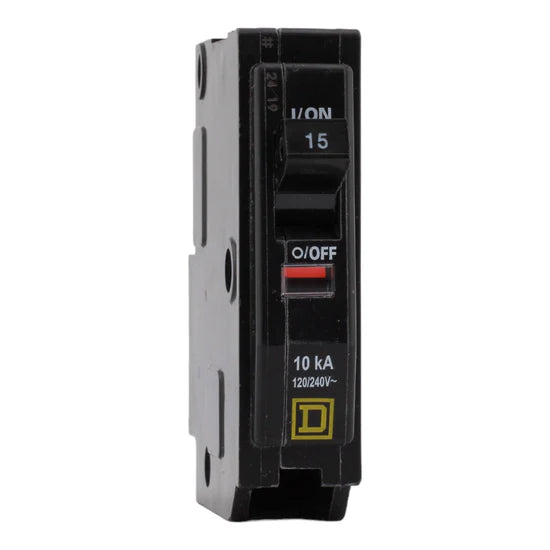

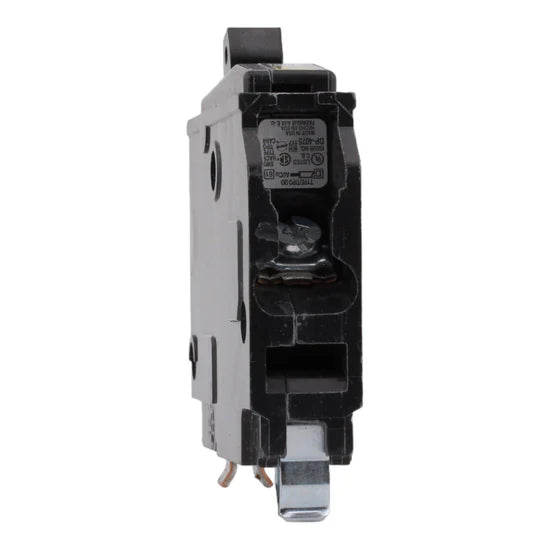

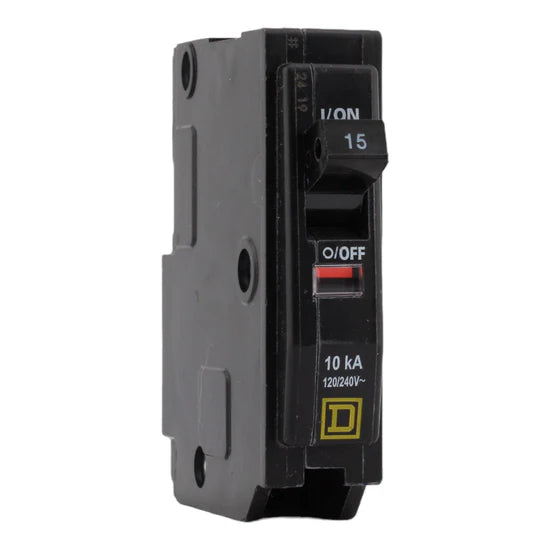

Square D QO115 15A 1‑Pole Miniature Circuit Breaker – Plug‑On Neutral – 120/240V

The Square D QO115 is a 15‑amp, single-pole miniature circuit breaker from Schneider Electric’s QO series. It provides reliable thermal-magnetic overcurrent protection and installs easily into QO load centers with its plug-on neutral design.

Voltage and Ratings

• Voltage Rating: 120/240 Volts AC
• Amperage Rating: 15 Amps
• Poles: 1‑Pole
• Interrupt Rating: 10 kA

Key Specifications

• Breaker Type: Miniature Circuit Breaker
• Mounting Type: Plug-On Neutral
• Series: QO
• Application: Overcurrent protection for branch circuits
• Compatibility: Square D QO load centers

Technical Specifications

• Operating Mechanism: Thermal-magnetic trip
• Wire Size Range: AWG 14–8 (Copper/Aluminum)
• Tightening Torque: 35.4 lbf.in (4 N.m)
• Dimensions (H × W × D): 3.0 × 0.7 × 2.9 in
• Weight: 0.3 lbs
• Certifications: UL Listed, CSA Certified

Product Data

• • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: QO115
  • UPC: 785901400066
  • Product Type: Miniature Circuit Breaker
