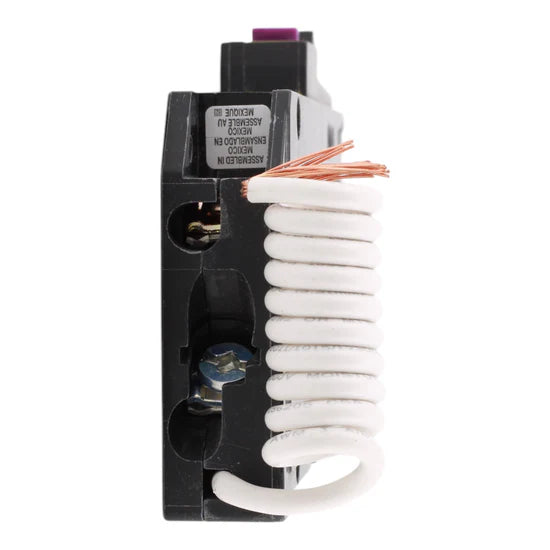

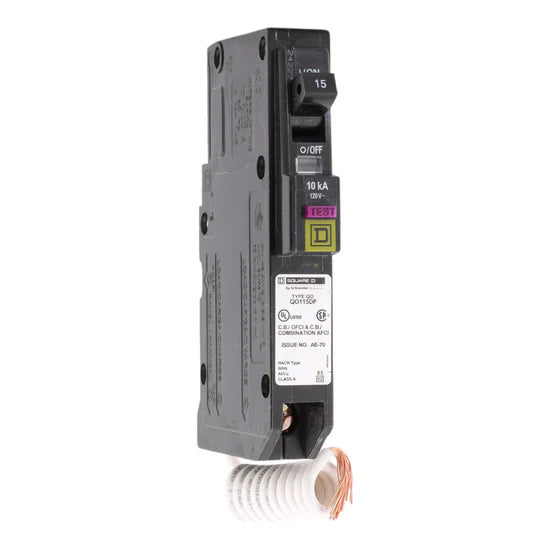

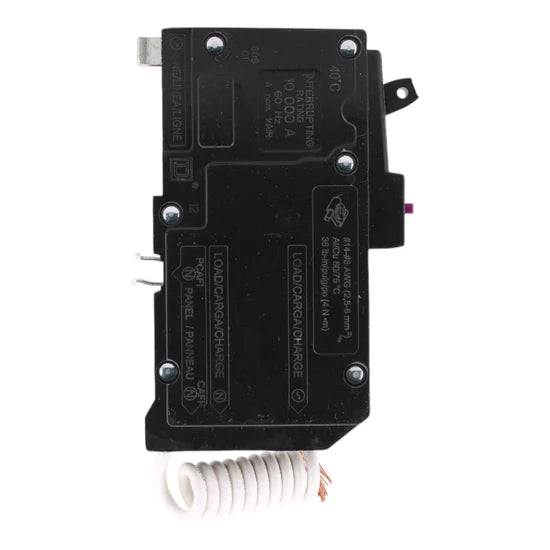

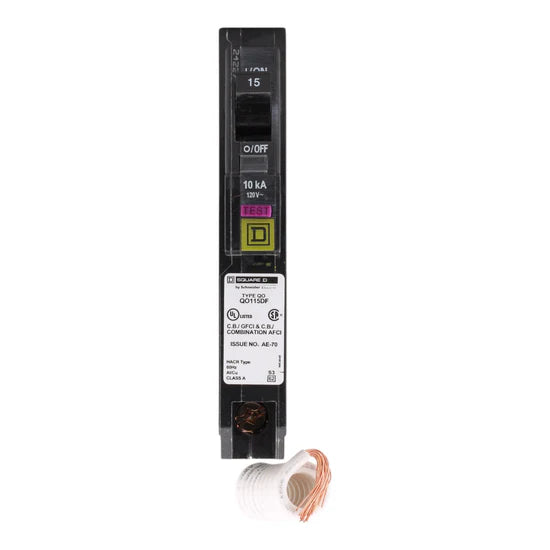

The **Schneider Electric Square D QO115DF 15 Amp dual-function circuit breaker delivers combined arc-fault and ground-fault protection for residential branch circuits. Designed for QO load centers, this breaker enhances electrical safety by detecting both series/parallel arc faults and ground faults. The pigtail neutral connection ensures reliable installation, while the VisiTrip indicator provides clear visual identification of a tripped breaker.
Voltage and Rating
- Amperage Rating: 15 Amps
- Voltage Rating: 120 Volts AC
- Interrupt Rating: 10 kA
Key Specifications
- Breaker Type: Dual Function AFCI/GFCI
- Number of Poles: 1-Pole
- Mounting Type: Plug-in
- Connection Type: Pigtail Neutral
- Compatibility: QO load centers
- Special Features: VisiTrip indicator, HACR rated
Technical Specifications
- Wire Size: AWG 14–8 Copper or Aluminum
- Terminal Tightening Torque: 35.4 lbf-in
- Protection Functions: Arc-fault and ground-fault detection
- Certifications: UL Listed, CSA
Product Data
-
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: QO115DF
- UPC: 785901401605
- Dimensions: 4.8 in H × 0.7 in W × 2.9 in D
- Weight: 0.60 lb
