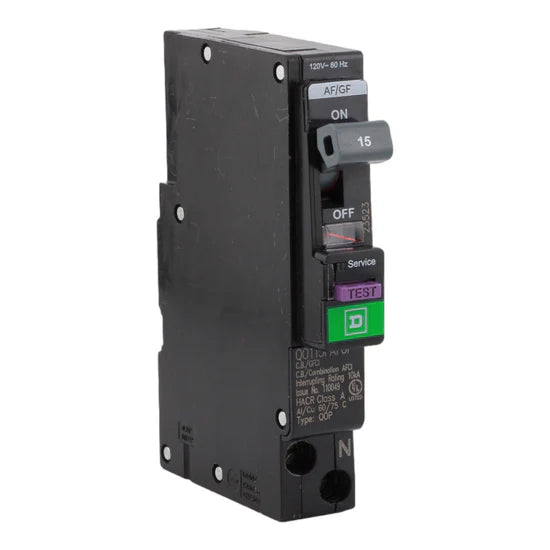

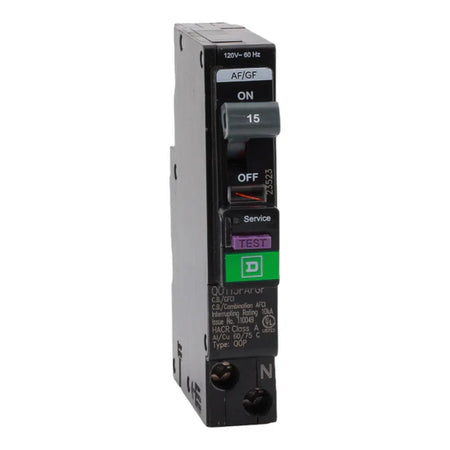

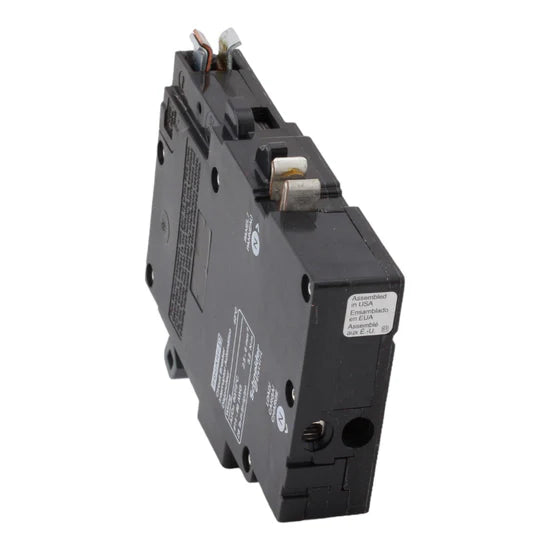

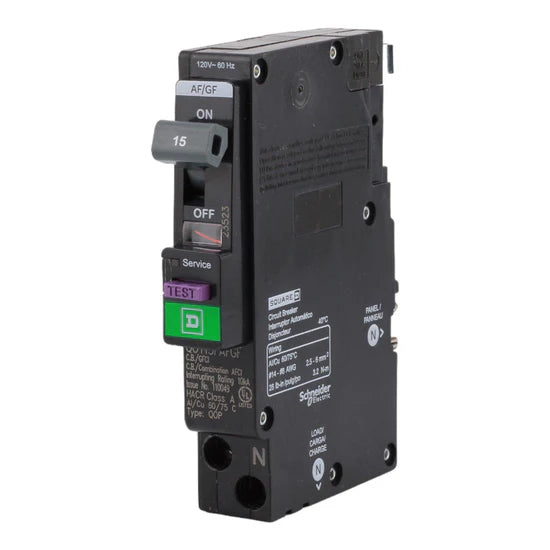

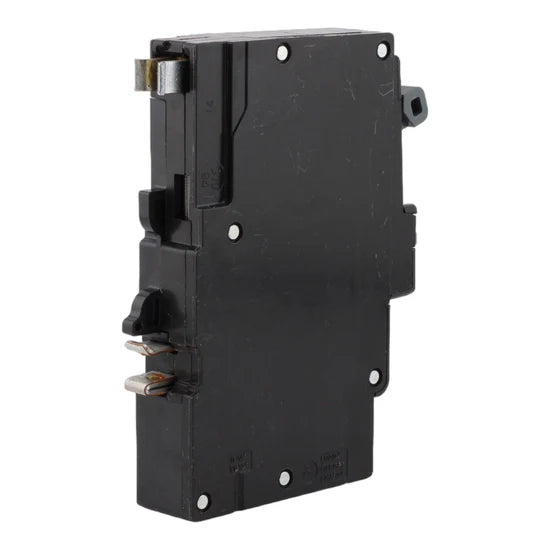

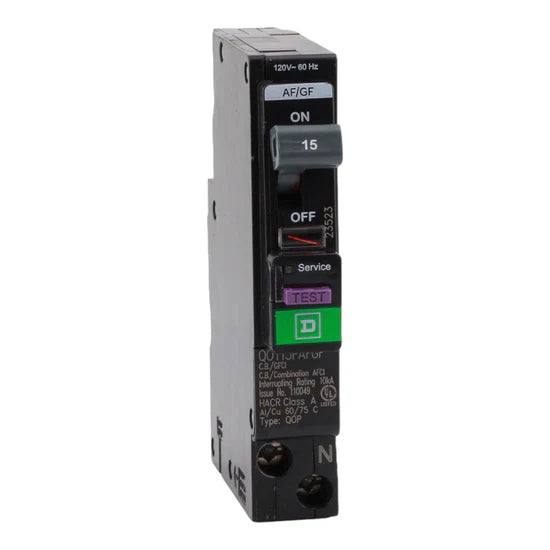

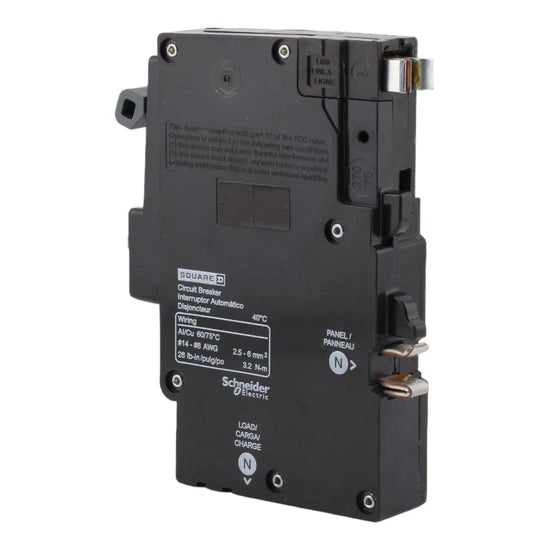

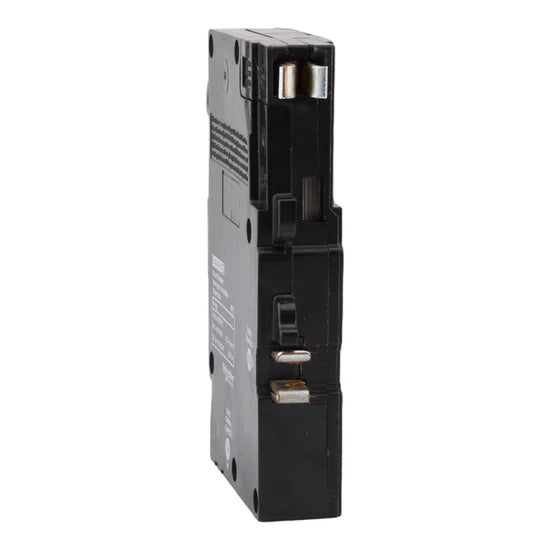

Square D QO115PAFGF 15A 1-Pole Dual-Function AFCI/GFCI Circuit Breaker – Plug-On Neutral – 120V

The Square D QO115PAFGF is a 15-amp, single-pole dual-function breaker manufactured by Schneider Electric under the Square D QO series. It provides combination Arc-Fault (AFCI) and Ground-Fault (GFCI) protection in a compact plug-on-neutral design for compatible QO load centers.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Amperage Rating: 15 Amp
• Poles: 1-Pole
• Interrupt Rating: 10 kA

Key Specifications

• Breaker Type: Combination AFCI/GFCI (Dual Function)
• Mounting Type: Plug-In
• Neutral Connection: Plug-On Neutral
• Ground-Fault Protection: Class A, 6 mA
• Compatibility: Square D QO plug-on-neutral load centers

Technical Specifications

• Wire Size: AWG 14 to AWG 8 (Copper or Aluminum)
• Tightening Torque: 35.4 lbf-in (4 N·m)
• Dimensions (H × W × D): 2.72 × 0.75 × 4.10 in
• Weight: 0.351 lb
• Certifications: UL Listed

Product Data

• • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: QO115PAFGF
  • UPC: 785901778400
  • Product Range: QO
