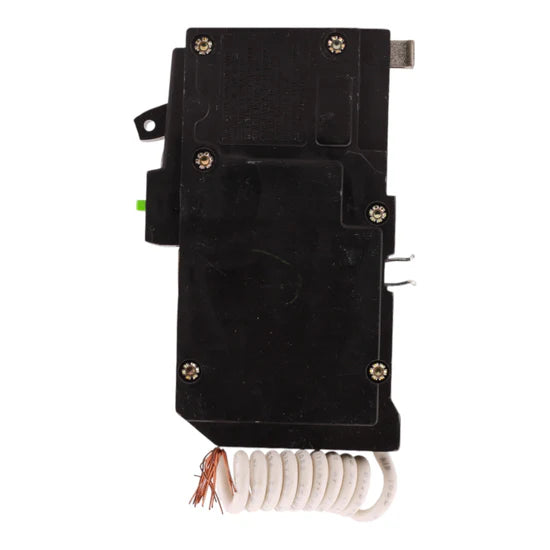

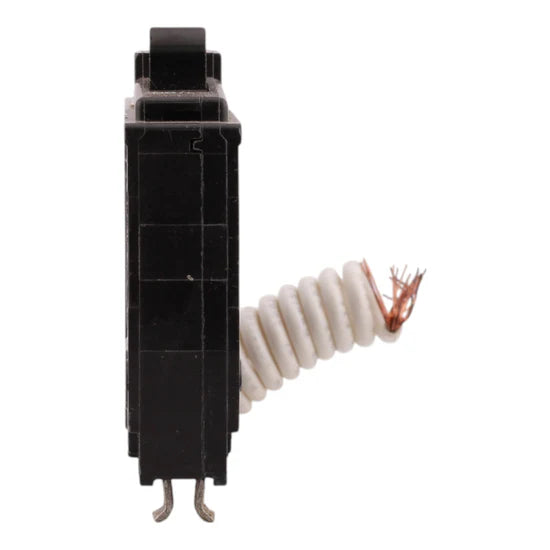

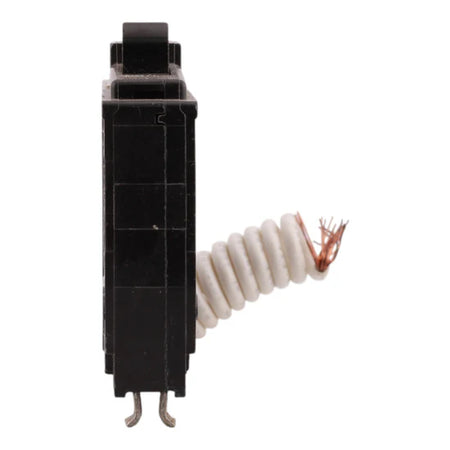

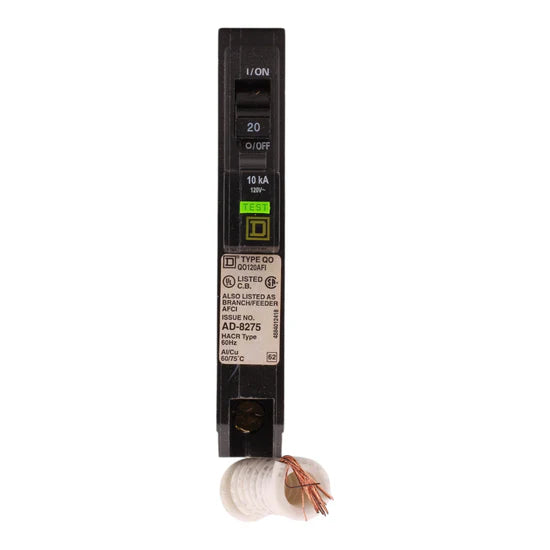

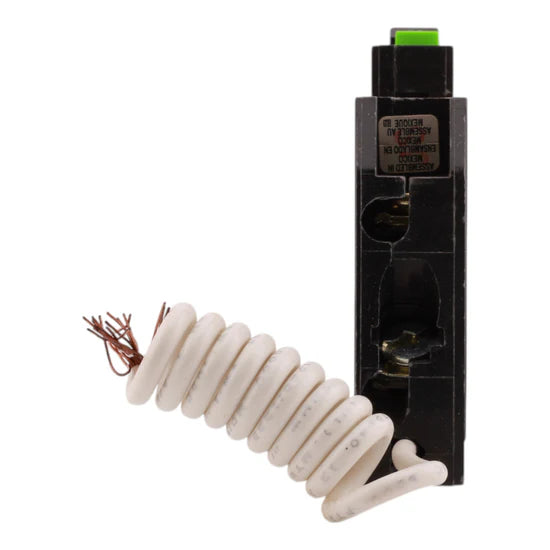

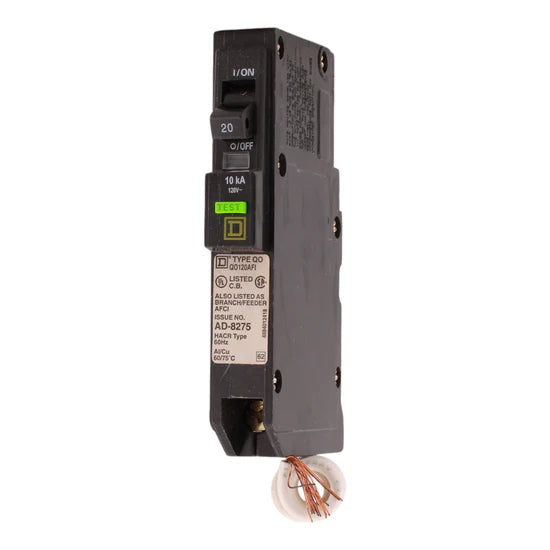

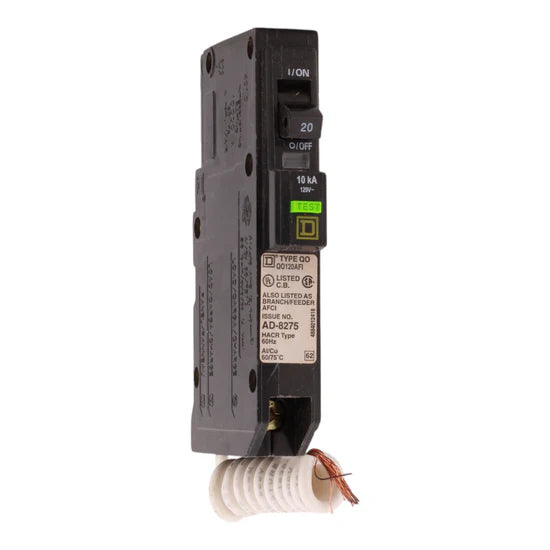

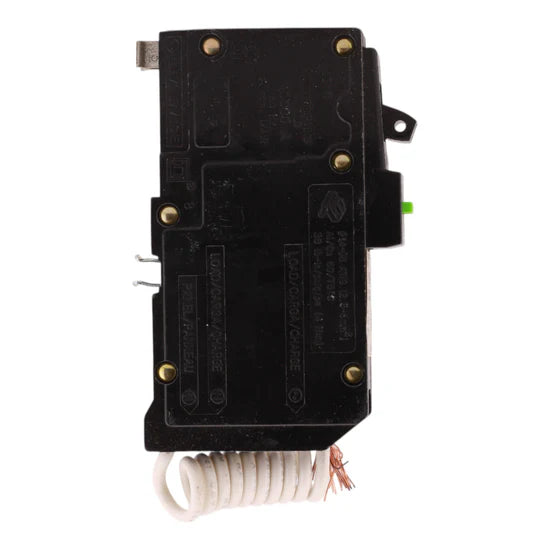

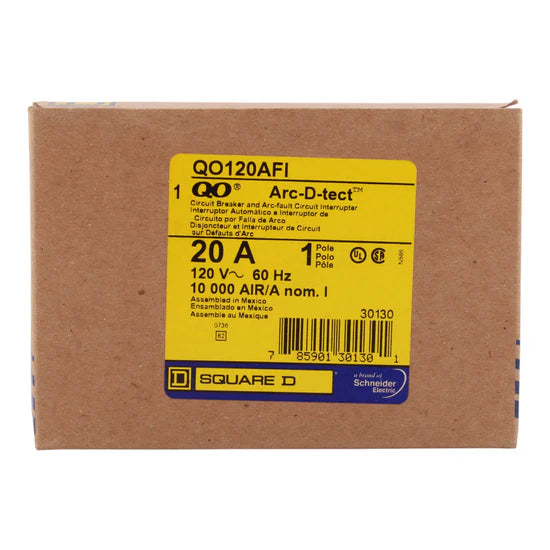

Square D QO120AFI 20A 1-Pole AFCI – Plug-In – 120V

The Square D QO120AFI is a 20 Amp, 1-pole Arc-Fault Circuit Interrupter (AFCI) breaker designed to provide advanced protection against arc-fault hazards in residential electrical systems. Built for QO Series load centers, it features a plug-in design with a pigtail neutral connection for reliable installation. The breaker includes Square D’s VisiTrip indicator for quick identification of tripped circuits and meets UL and CSA safety standards.

Voltage and Rating:

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Interrupting Capacity: 10 kA

Key Specifications:

• Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
• Number of Poles: 1-Pole
• Product Range: QO Series
• Mounting Mode: Plug-In
• Neutral Connection: Pigtail
• Trip Indicator: VisiTrip
• HACR Rated: Yes

Wiring Information:

• Copper Wire Size: AWG 14 to AWG 8
• Aluminum Wire Size: AWG 12 to AWG 8
• Terminal Torque: 35.4 lbf.in (4 N·m)

Physical Specifications:

• • Height: 4.8 in
  • Width: 0.7 in
  • Depth: 2.9 in
  • Weight: 0.571 lbs

Product Data

Manufacturer: Schneider Electric
Brand: Square D
Model Number: QO120AFI
UPC: 785901301301
Certifications: UL Listed, CSA Certified
Series: QO
