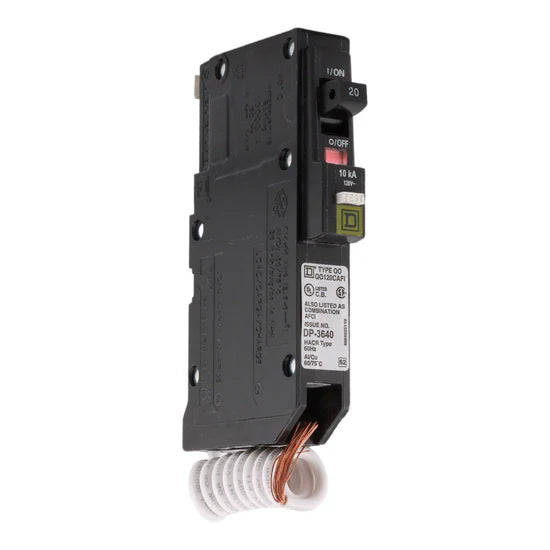

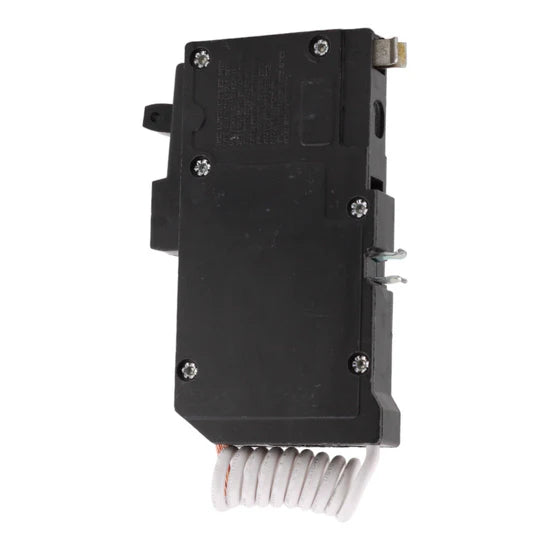

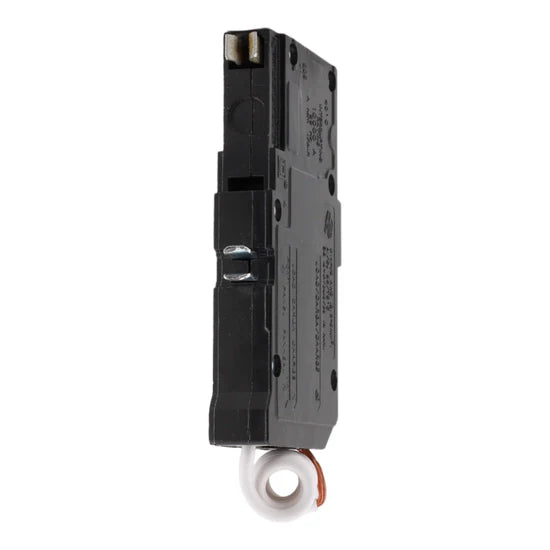

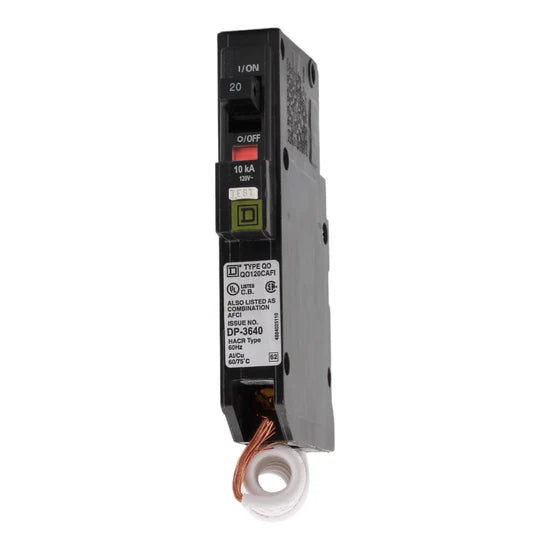

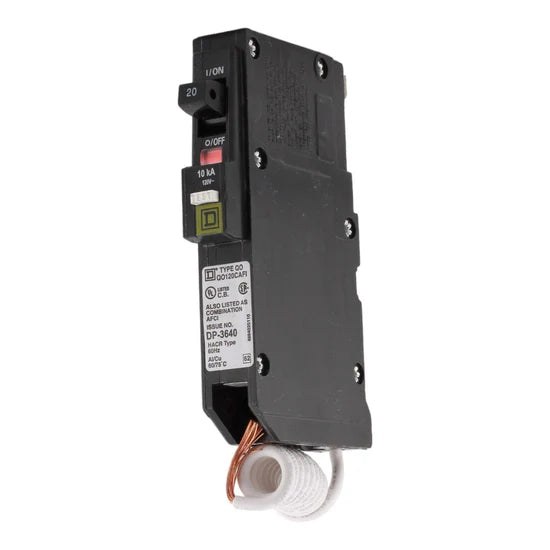

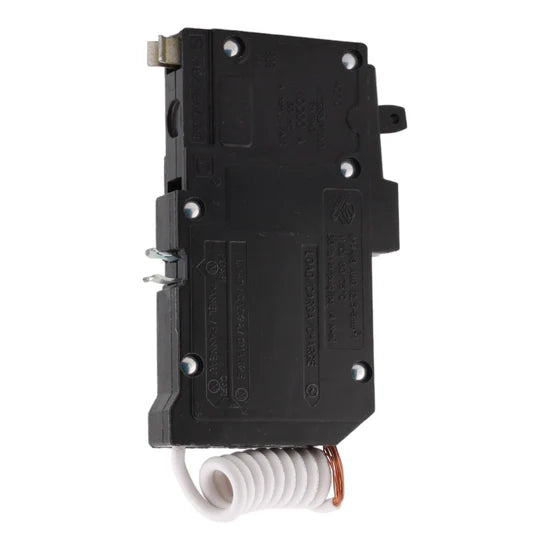

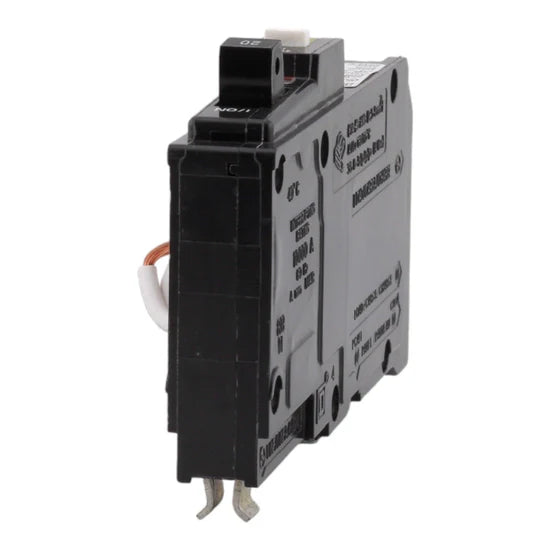

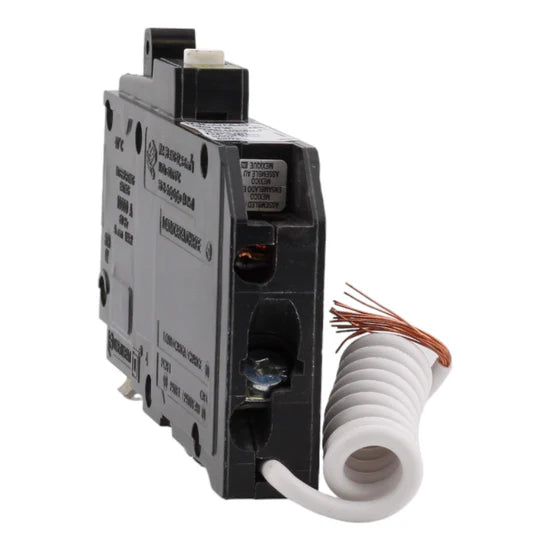

Square D QO120CAFI 20A 1-Pole AFCI Circuit Breaker – Plug-In (Pigtail Neutral) – 120V

The Square D QO120CAFI is a 20 Amp single-pole Combination Arc Fault Circuit Interrupter (AFCI) designed to protect electrical circuits from arc-fault hazards that can cause electrical fires. Engineered for use in Square D QO load centers, this breaker features a plug-in mounting design with a pigtail neutral connection, ensuring reliable protection and straightforward installation in residential branch circuit applications.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 120 Volts AC
• Interrupt Rating: 10 kA

Key Specifications

• Breaker Type: Combination Arc Fault Circuit Interrupter (AFCI)
• Number of Poles: 1-Pole
• Mounting Type: Plug-In
• Connection Type: Pigtail Neutral
• Trip Type: Thermal Magnetic
• Compatibility: Square D QO Loadcenters

Technical Specifications

• Wire Size:
• 14–8 AWG Copper
• 12–8 AWG Aluminum
• Net Weight: 0.5 lb

Certifications

• UL Listed
• CSA Approved

Product Data

• • Manufacturer: Schneider Electric (Square D)
  • Model Number: QO120CAFI
  • UPC: 785901438359
