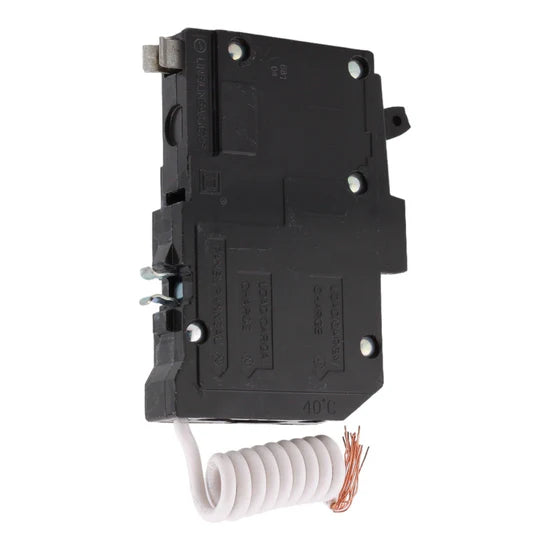

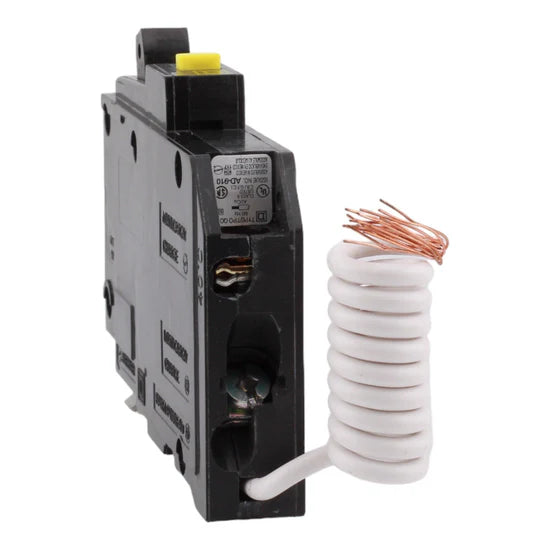

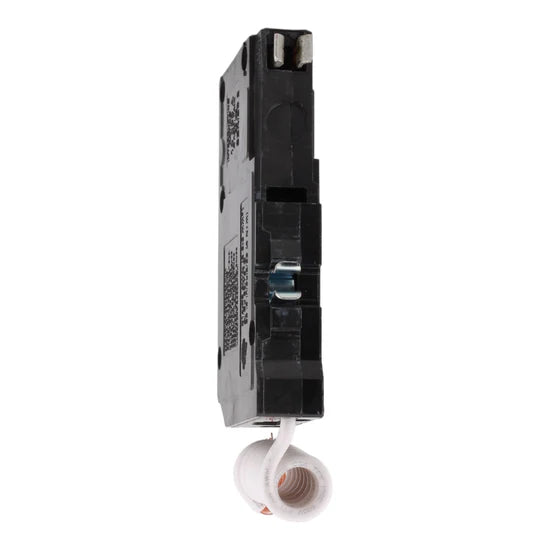

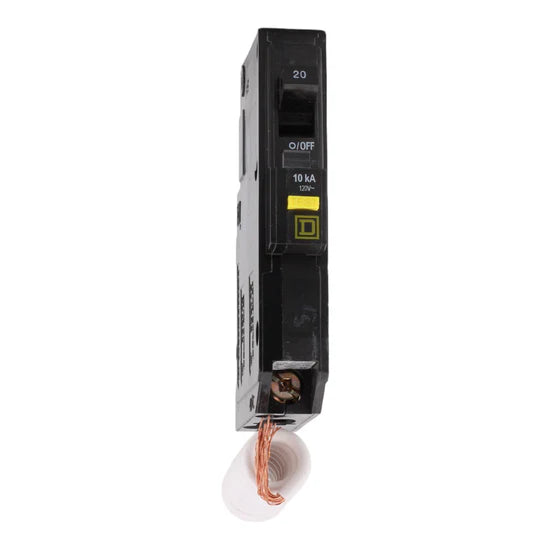

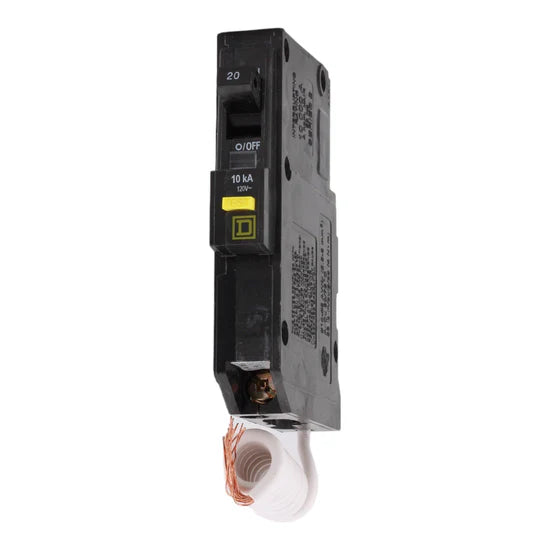

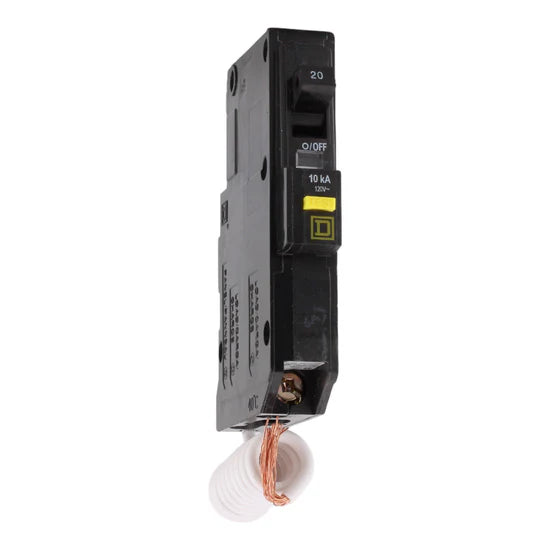

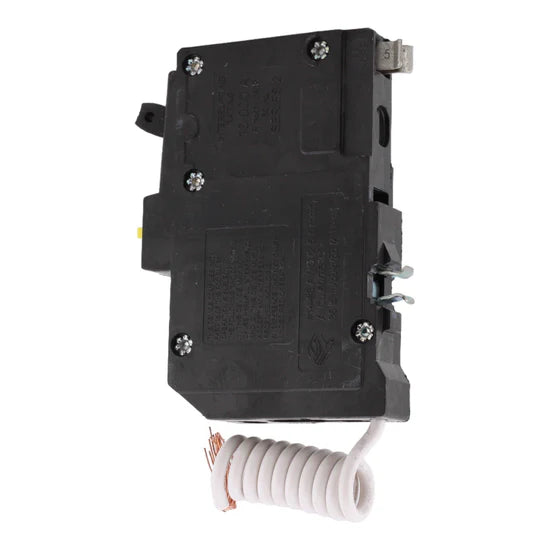

Square D QO120GFI 20A 1-Pole GFCI Circuit Breaker – Plug-In – 120V

The Square D QO120GFI is a 1-pole, 20A GFCI (Ground-Fault Circuit Interrupter) breaker designed for QO load centers. Manufactured by Schneider Electric under the Square D brand, it provides dependable thermal-magnetic overcurrent and ground-fault protection for 120V circuits. Its plug-in design and pigtail neutral allow for secure installation in panels requiring a neutral connection, ensuring enhanced safety and code compliance.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Current Rating: 20 Amps
• Poles: 1-Pole
• Interrupt Rating: 10 kAIC
• Ground Fault Protection: Class A, 6 mA

Key Specifications

• Breaker Type: GFCI (Ground-Fault Circuit Interrupter)
• Mounting Type: Plug-In
• Technology: Thermal-Magnetic
• Application: Branch circuit protection in QO load centers
• Compatibility: Square D QO load centers

Technical Specifications

• Wire Size: AWG 14–8 (Copper), AWG 12–8 (Aluminum)
• Terminal Tightening Torque: 35.4 lbf.in (4 N.m)
• Dimensions (H × W × D): 4.1 in × 0.7 in × 2.9 in
• Weight: 0.529 lbs
• Certifications: UL Listed, CSA Certified

Product Data

• Brand: Square D
• Manufacturer: Schneider Electric
• Model Number: QO120GFI
• UPC: 785901255079
