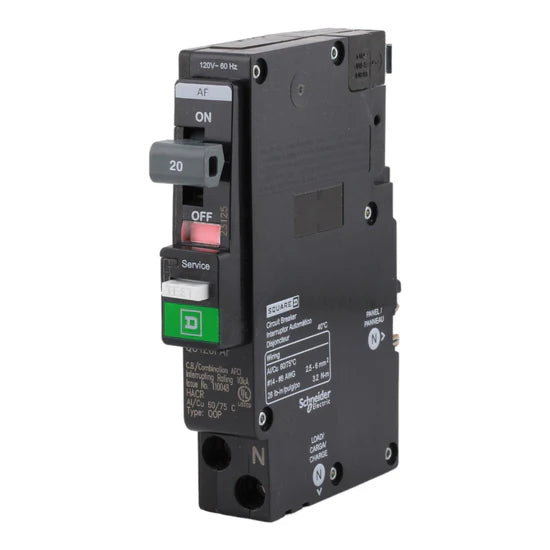

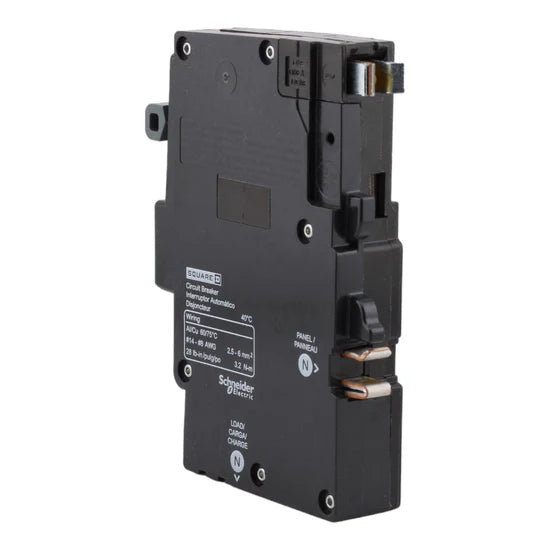

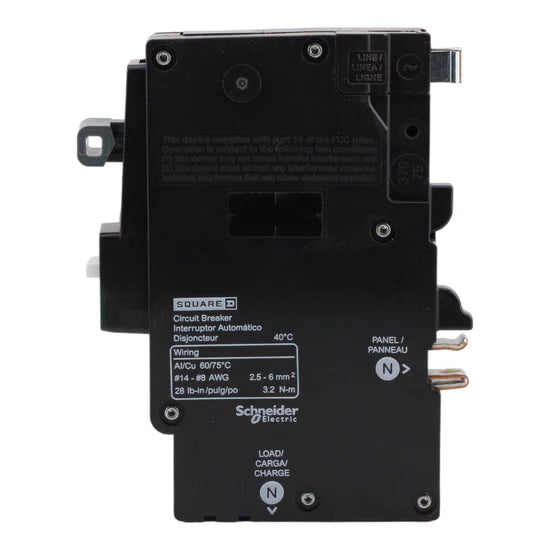

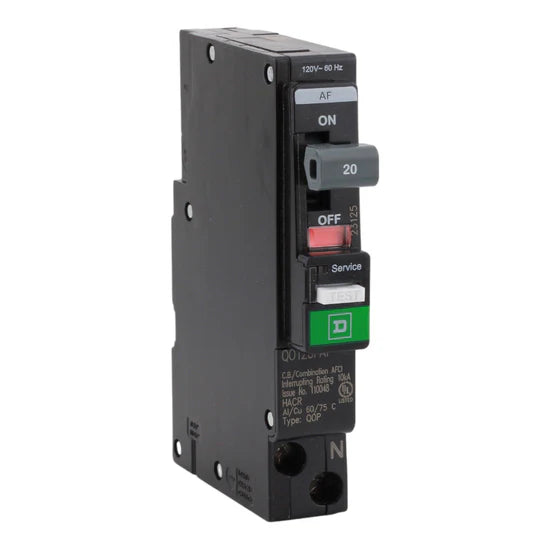

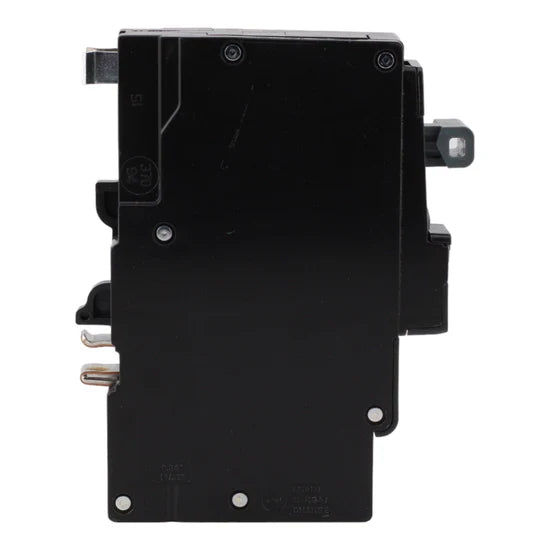

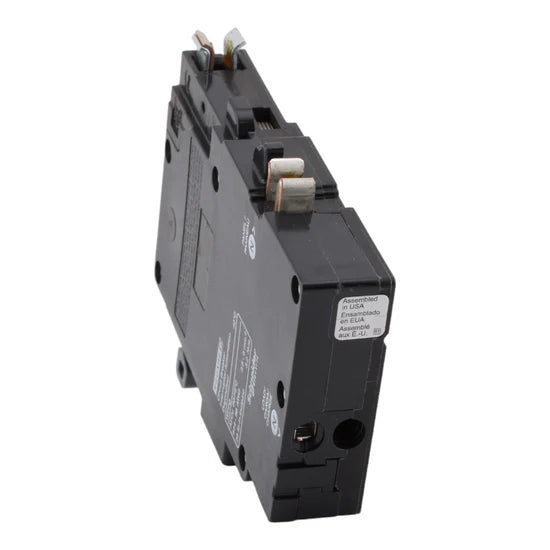

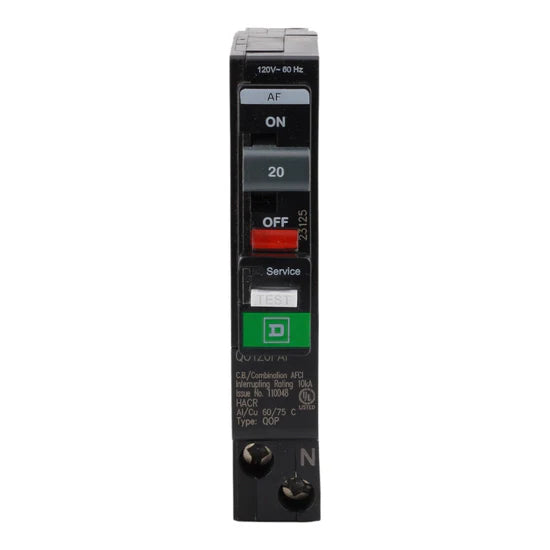

Square D QO120PAF 20A 1-Pole AFCI Circuit Breaker – Plug-On Neutral – 120V

The Square D QO120PAF is a 20-amp, single-pole arc-fault circuit interrupter (AFCI) manufactured by Schneider Electric under the Square D QO series. It provides dependable arc-fault protection for 120V branch circuits and is designed for QO plug-on-neutral load centers, allowing quicker installation and reduced wiring.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Amperage Rating: 20 Amp
• Poles: 1-Pole
• Interrupt Rating: 10 kA

Key Specifications

• Breaker Type: Combination Arc-Fault Circuit Interrupter (AFCI)
• Mounting Type: Plug-In
• Neutral Connection: Plug-On Neutral
• Compatibility: Square D QO plug-on-neutral load centers

Technical Specifications

• Wire Size: AWG 14 to AWG 8 (Copper); AWG 12 to AWG 8 (Aluminum)
• Tightening Torque: 35.4 lbf-in (4 N·m)
• Dimensions (H × W × D): 2.72 in × 0.75 in × 4.10 in
• Weight: 0.351 lbs
• Certifications: UL Listed

Product Data

• • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: QO120PAF
  • Product Range: QO
  • UPC: 785901779223
