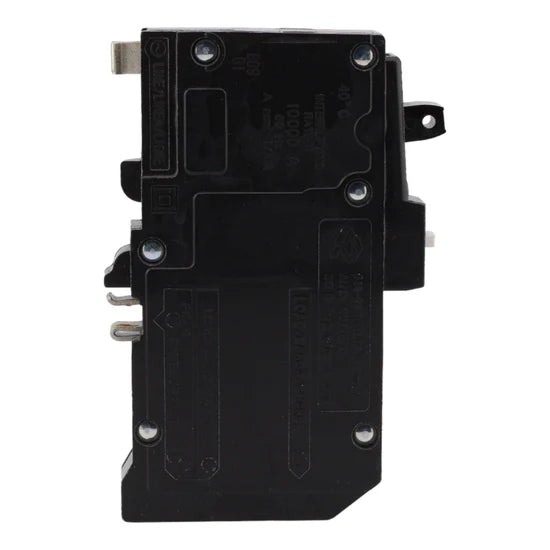

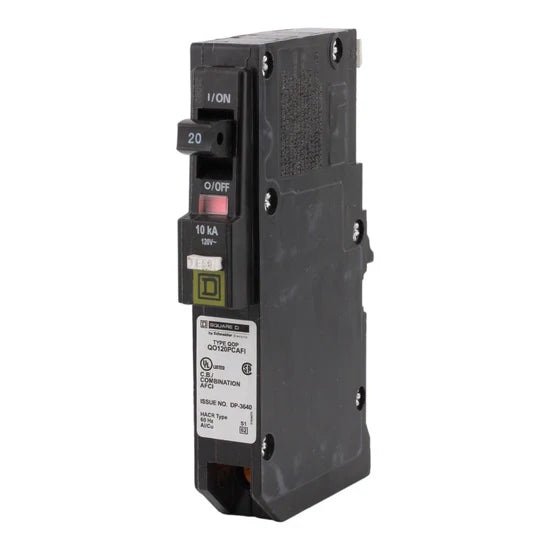

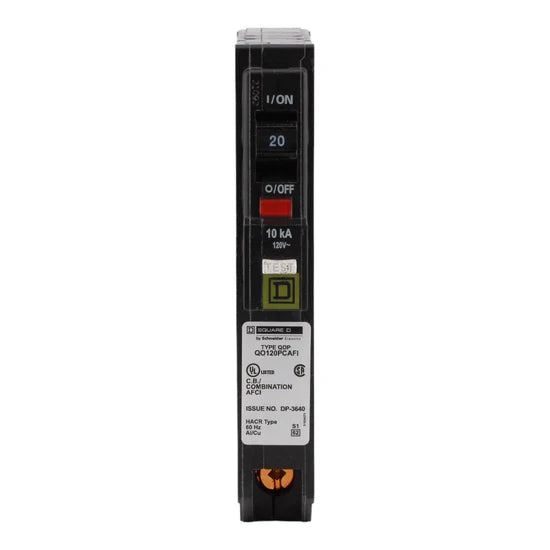

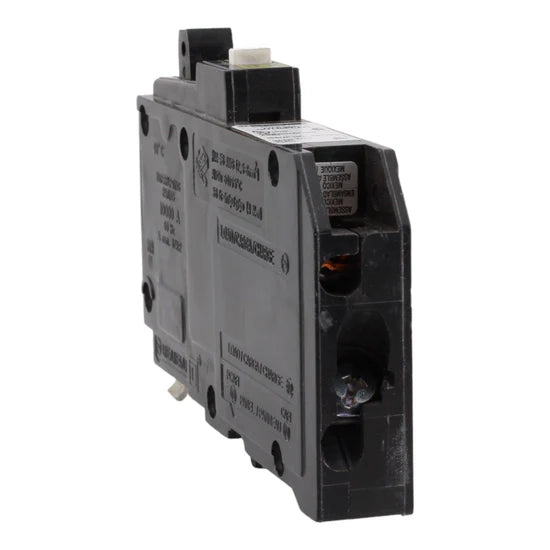

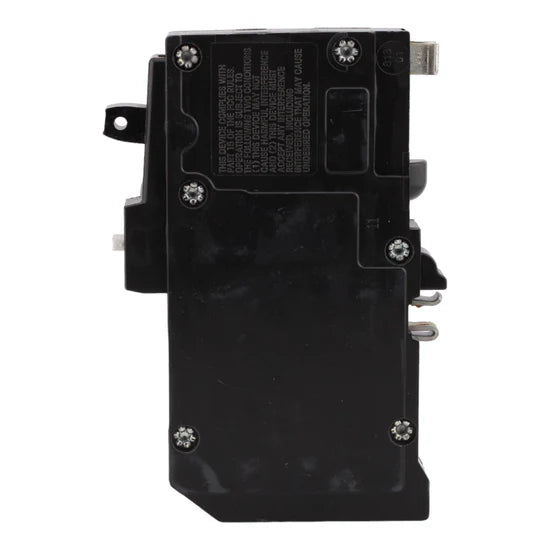

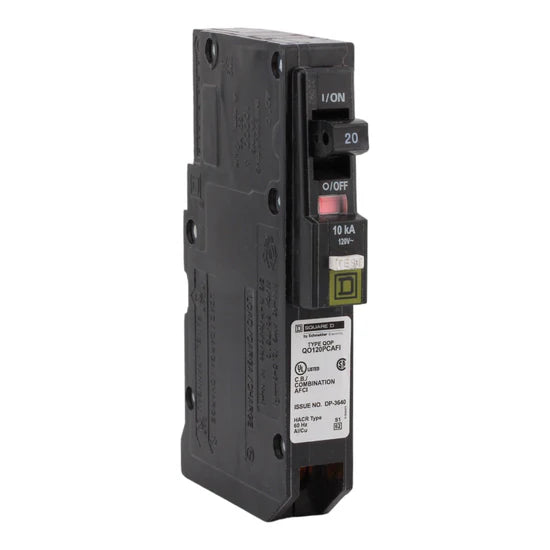

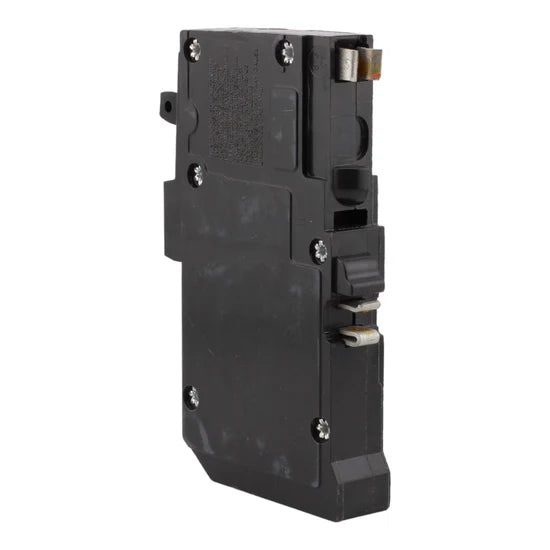

Square D QO120PCAFI 20A 1-Pole AFCI Circuit Breaker – Plug-On Neutral – 120V

The QO120PCAFI from Schneider Electric under the Square D QO series is a 20-amp, single-pole arc-fault circuit interrupter (AFCI) designed to detect dangerous arc faults and reduce the risk of electrical fires. Its plug-on neutral design simplifies installation in compatible QO load centers.

Voltage and Ratings

• Voltage Rating: 120 Volts AC
• Amperage Rating: 20 Amps
• Poles: 1-Pole
• Interrupt Rating: 10 kAIC

Key Specifications

• Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
• Mounting Type: Plug-On Neutral (Plug-In)
• Series: QO
• Application: Arc-fault protection for branch circuits
• Compatibility: Square D QO load centers

Technical Specifications

• Wire Size:

  • Copper: #14–8 AWG
  • Aluminum: #12–8 AWG
  • Terminal Tightening Torque: 35.4 lb-in
  • Dimensions (H × W × D): 4.8 × 0.75 × 2.9 in
• Weight: 0.549 lb
• Operating Mechanism: Thermal-magnetic with AFCI protection
• Certifications: UL Listed, CSA Certified, HACR Rated

Product Data

• Brand: Square D
• Manufacturer: Schneider Electric
• Model Number: QO120PCAFI
• UPC: 785901737186
• Product Range: QO
• Product Type: AFCI Circuit Breaker
