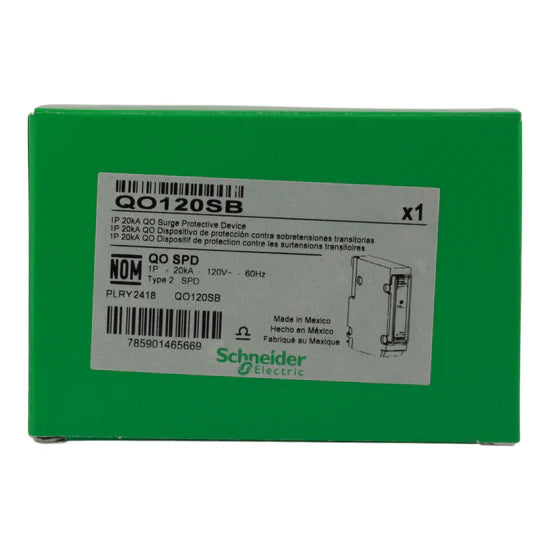

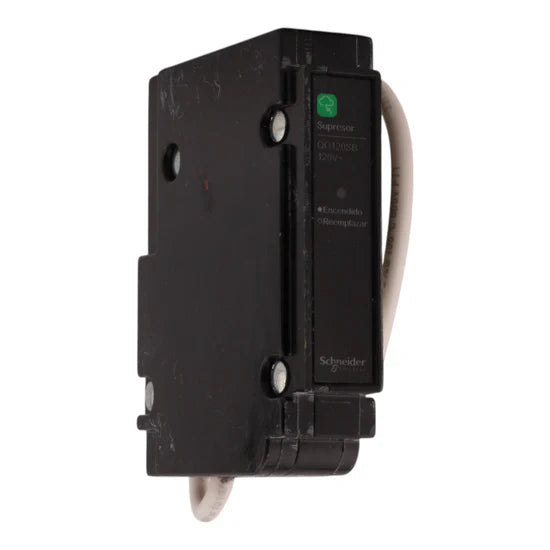

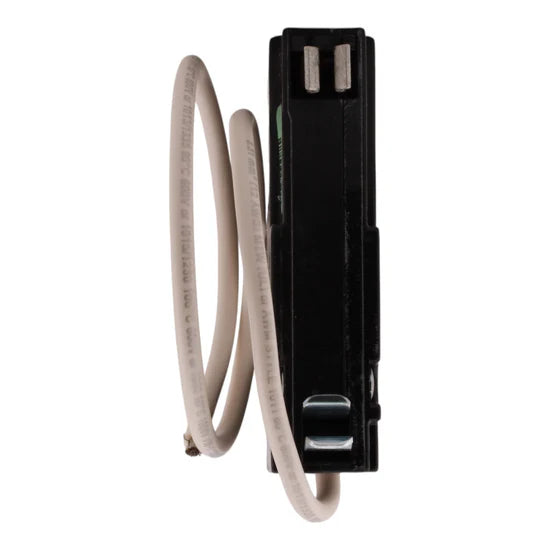

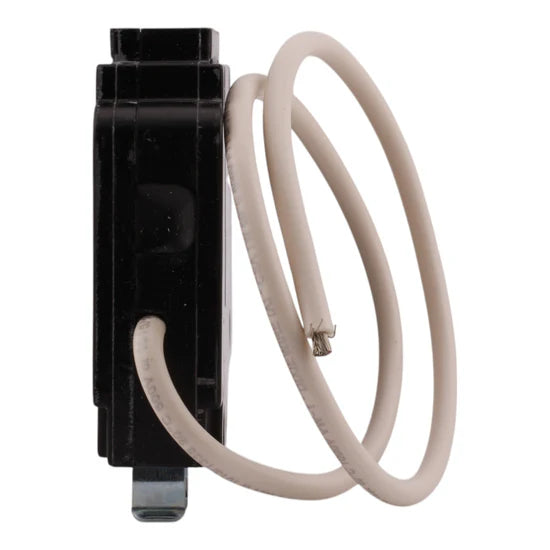

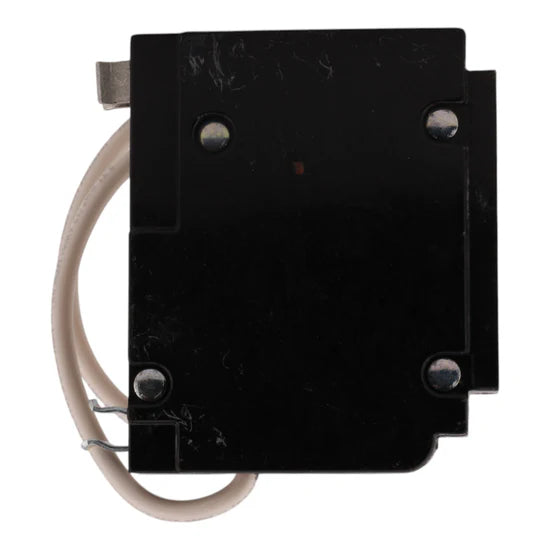

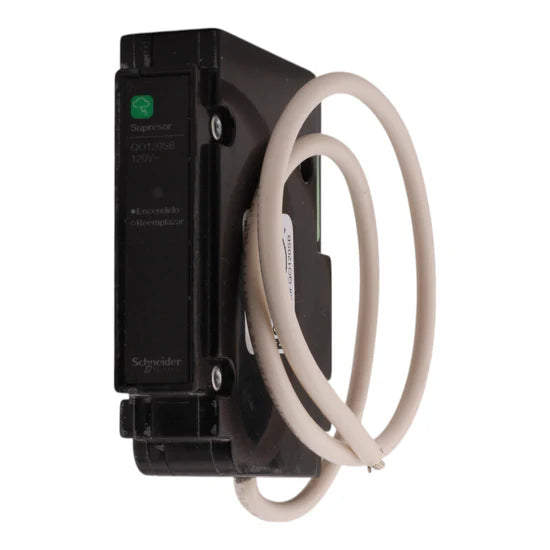

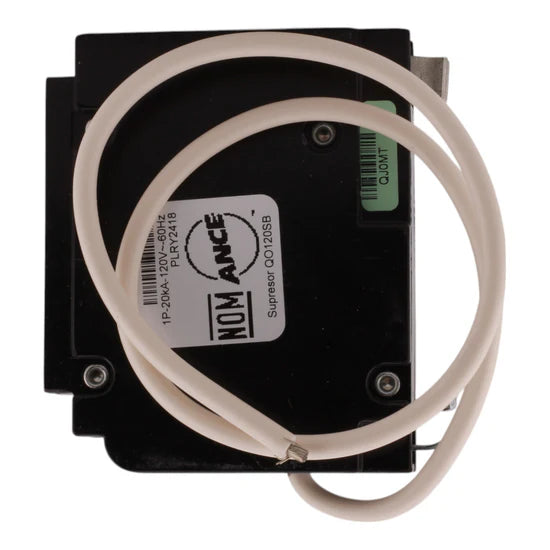

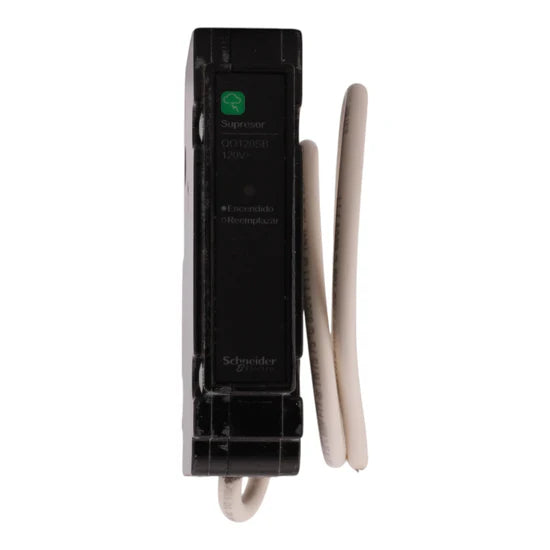

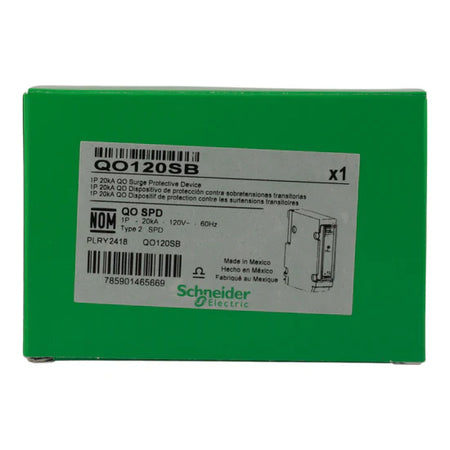

Square D QO120SB 30kA 1-Pole Surge Protective Device – 120V

The Square D QO120SB by Schneider Electric is a 30kA single-phase surge protective device (SPD) designed for QO load centers. Compact and reliable, it provides Type 2 surge protection with a green LED status indicator for normal operation, ensuring sensitive equipment and circuits are protected from transient voltage surges.

Voltage and Rating:

• Voltage Rating: 120V AC
• Surge Current Rating: 30 kA
• Phases: Single-Phase
• Wiring Configuration: 2-Wire

Key Specifications:

• Device Type: Surge Protective Device (SPD)
• Series: Surge Breaker
• Number of Poles: 1-Pole
• Compatibility: Load Center QOD, Load Center QOX
• Indicator: Green LED for Normal Operation
• Special Features: Type 2 Surge Protection, Compact Design, LED Status Indicator

Physical Specifications:

• Dimensions (H × W × D): 3 × 0.7 × 2.5 in (76 × 19 × 64 mm)
• Ambient Operating Temperature: 149°F (65°C)
• Enclosure Rating: NEMA 2

Product Data

• • Manufacturer: Schneider Electric
    Model Number: QO120SB
    UPC: 785901465669
    Packaging: Units per Package: 1; Package Dimensions: 2.99 × 0.75 × 2.52 in; Package Weight: 16 oz (453.592 g)
    Certifications: EU RoHS Directive Compliant
