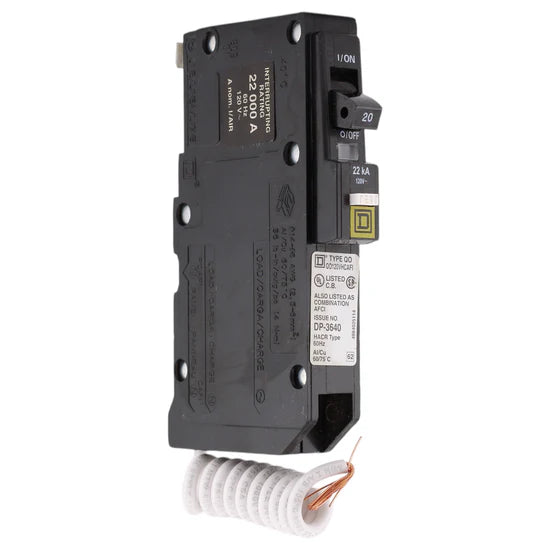

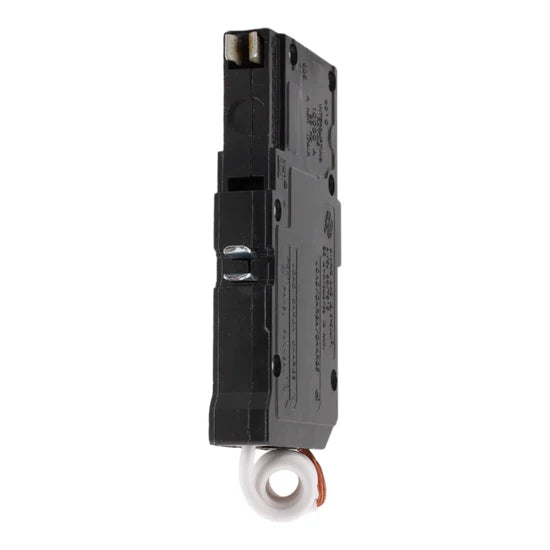

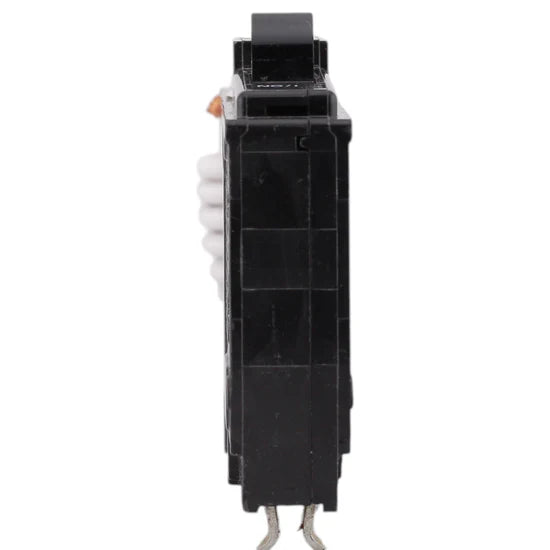

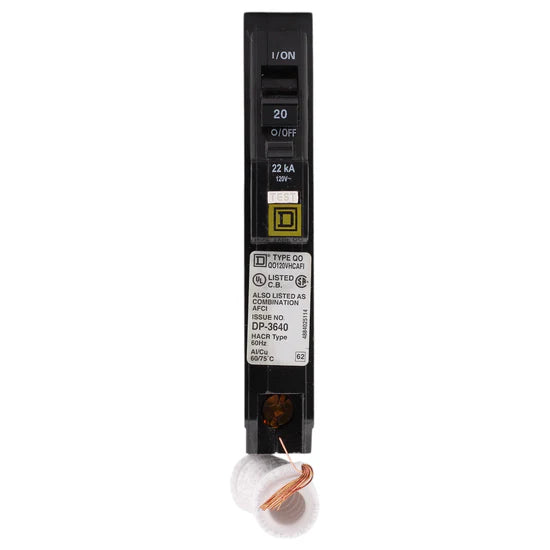

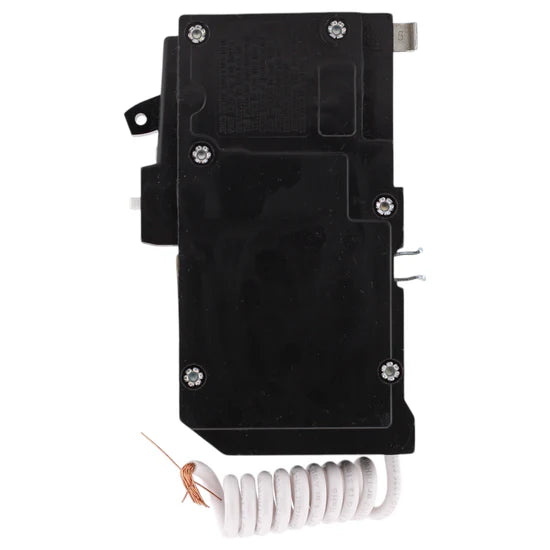

Square D QO120VHCAFI 20A 1P AFCI – Plug-In – 120/240V

Square D QO120VHCAFI 20A 1P AFCI – Plug-In – 120/240V circuit breaker provides reliable combination arc-fault protection for 120/240V circuits. Designed for Square D QO load centers and NQOD/NQ panelboards, this 1-pole AFCI/CAFI breaker automatically detects arc faults to enhance residential safety. Featuring a pigtail neutral connection, it simplifies installation while delivering high-interrupting 22kA capacity for dependable protection.

Voltage and Rating:

• Current Rating: 20 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 22 kAIC

Key Specifications:

• Breaker Type: Combination Arc-Fault Circuit Interrupter (AFCI/CAFI)
• Number of Poles: 1-Pole
• Mounting Type: Plug-In

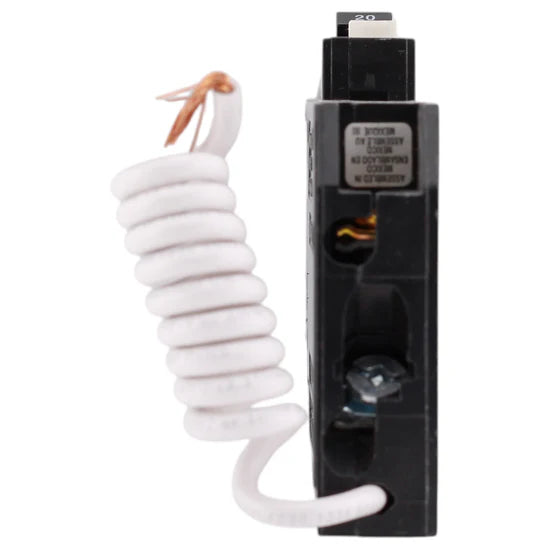

• Connection Type: Pigtail Neutral
• Application: Residential circuit protection
• Product Range: QO Series (for QO load centers and NQOD/NQ panelboards)

Technical Specifications:

• Wire Size: #14–#8 AWG Cu; #12–#8 AWG Al
• Dimensions:
• Height: 4.75 in
• Width: 0.75 in
• Depth: 2.91 in
• Weight: 0.49 lb
• Certifications: UL Listed, CSA Certified

Product Data:

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: QO120VHCAFI
  • UPC: 785901709831
