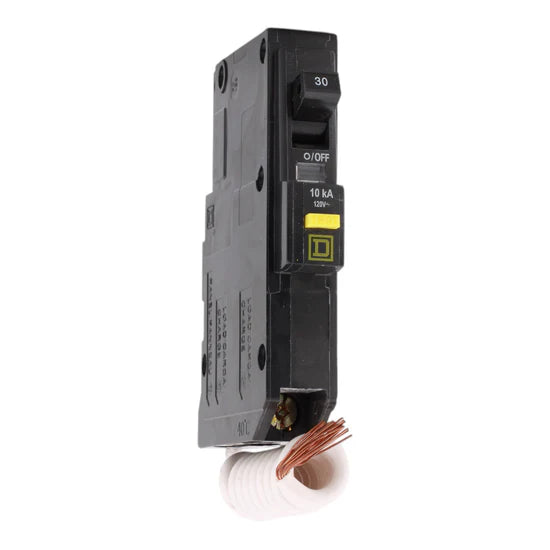

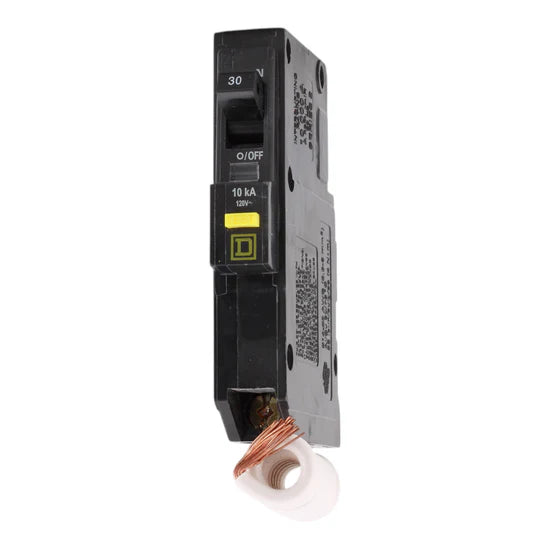

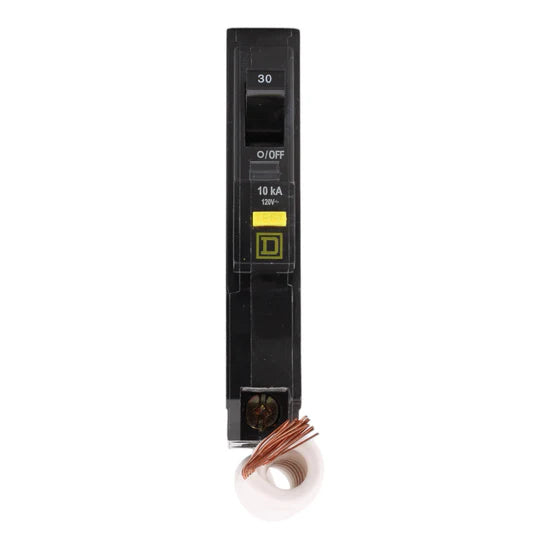

The Square D QO130GFI is a 1-pole, 30A GFCI (Ground-Fault Circuit Interrupter) breaker designed for QO load centers. Manufactured by Schneider Electric under the Square D brand, it provides dependable thermal-magnetic overcurrent and ground-fault protection for 120V circuits. Its plug-in design ensures quick and secure installation, reducing wiring complexity while maintaining safety compliance.
Voltage and Ratings
- Voltage Rating: 120 Volts AC
- Current Rating: 30 Amps
- Poles: 1-Pole
- Interrupt Rating: 10 kAIC
- Trip Sensitivity: 6 mA Class A
Key Specifications
- Breaker Type: GFCI (Ground-Fault Circuit Interrupter)
- Mounting Type: Plug-In
- Technology: Thermal-Magnetic
- Application: Branch circuit protection in QO load centers
- Compatibility: Square D QO load centers
Technical Specifications
- Wire Size: AWG 14–8 (Copper), AWG 12–8 (Aluminum)
- Terminal Tightening Torque: 35.4 lbf.in (4 N.m)
- Dimensions (H × W × D): 4.1 in × 0.7 in × 2.9 in
- Weight: 0.269 lbs
- Certifications: UL Listed, CSA Certified
Product Data
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: QO130GFI
- UPC: 785901255093
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
