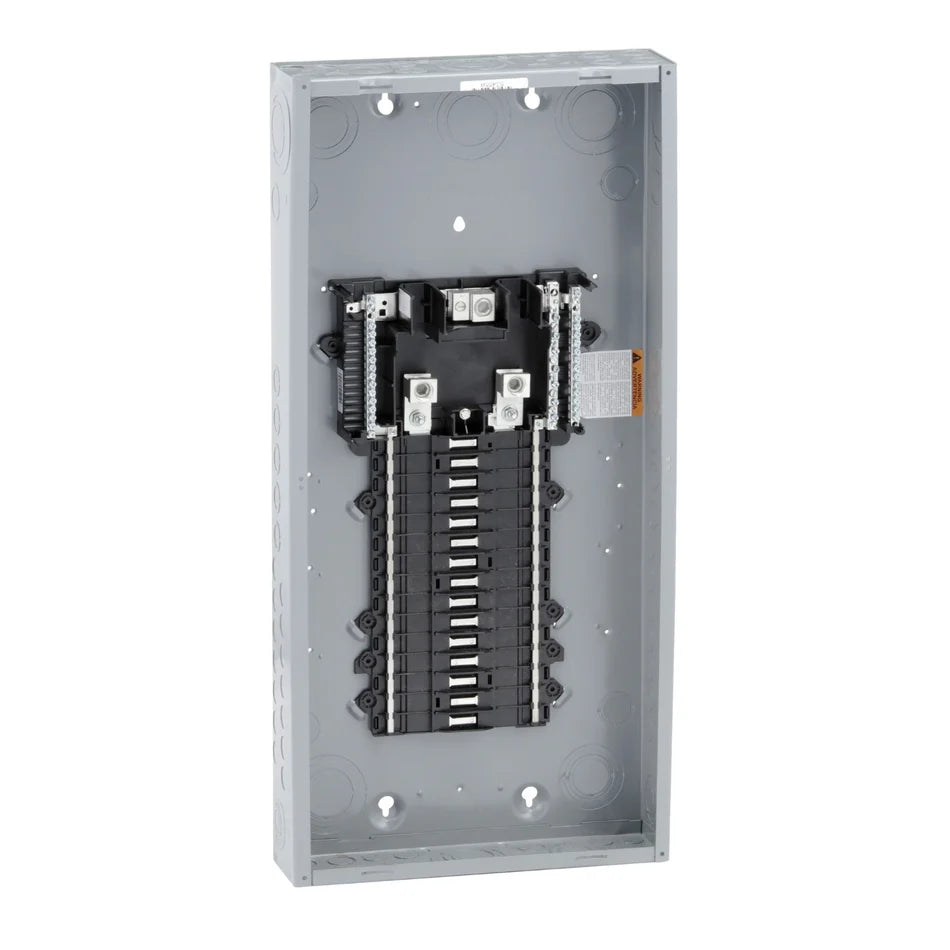

Square D QO130L200PG 200A Plug-On Neutral Load Center – 30 Spaces / 40 Circuits – Indoor NEMA 1

The QO130L200PG Load Center from Square D (by Schneider Electric) is a high-performance 200 Amp, 1-phase load center designed for residential and light industrial electrical distribution. Featuring Plug-On Neutral (PoN) technology, this panel significantly reduces installation time and improves wiring safety by eliminating the need for neutral pigtails on compatible breakers.

With 30 spaces supporting up to 40 circuits, a tin-plated copper bus, and a convertible main lug design, this load center offers flexibility, durability, and code-ready performance for modern electrical systems.

Electrical Ratings

• Amperage Rating: 200 Amps
• Voltage Rating: 120/240 Volts AC
• Phase: 1-Phase
• Busbar Material: Tin-Plated Copper

Panel Configuration

• Type: Convertible Main Lugs Load Center
• Number of Spaces: 30
• Maximum Circuits: 40
• Connection Type: Plug-On Neutral (PoN)
• Ground Bar: Included (not installed)

Construction & Features

• Enclosure Rating: NEMA 1 (Indoor Use)
• Material: Welded sheet steel
• Finish: Baked enamel coating
• Application: Residential & light industrial installations
• Breaker Compatibility: Square D QO Plug-On Neutral & standard QO breakers

Physical Specifications

• Dimensions (H × W × D): 29.8 × 14.3 × 4.2 inches
• Weight: 17.0 lbs

Product Data

• • Brand: Square D
  • Model Number: QO130L200PG
  • UPC: 785901219248
