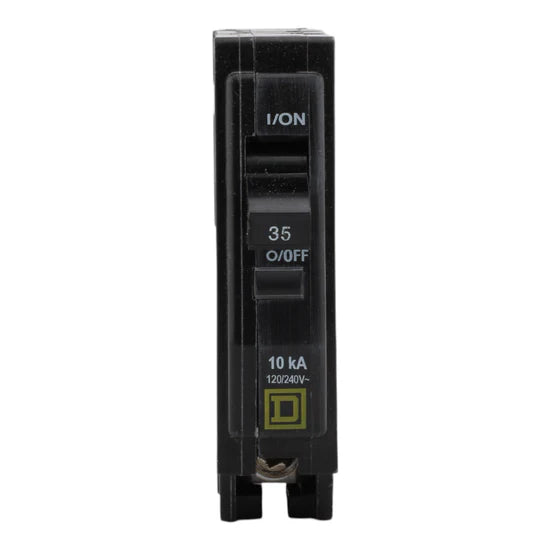

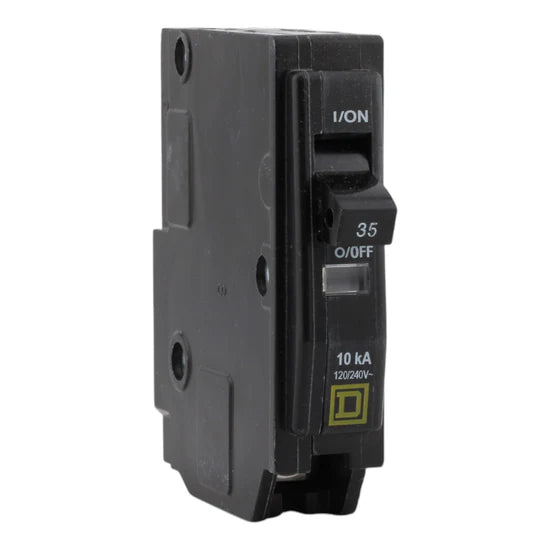

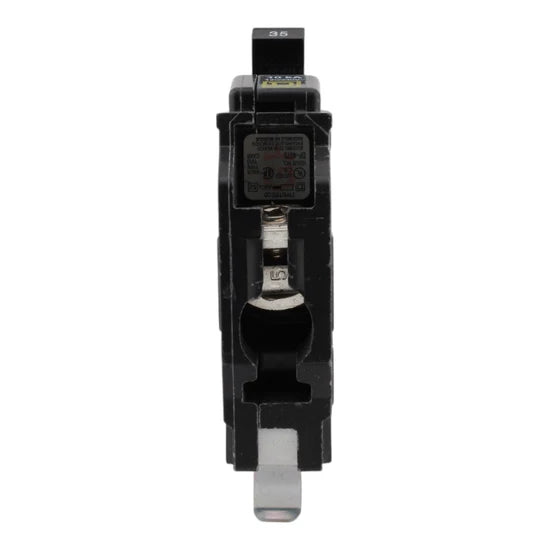

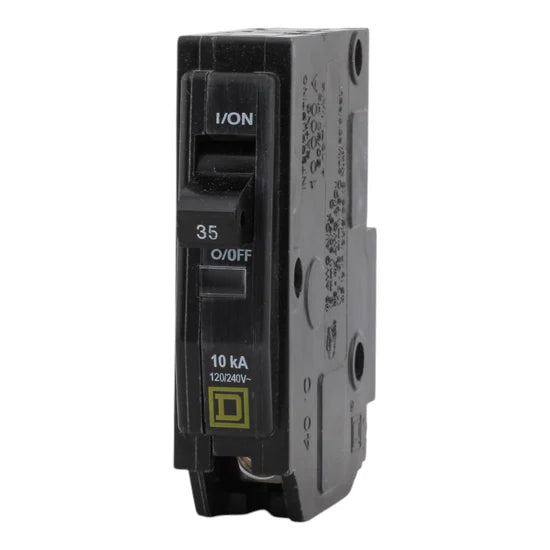

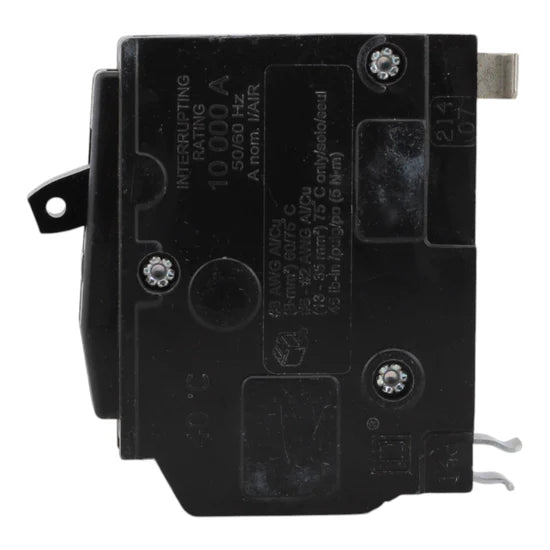

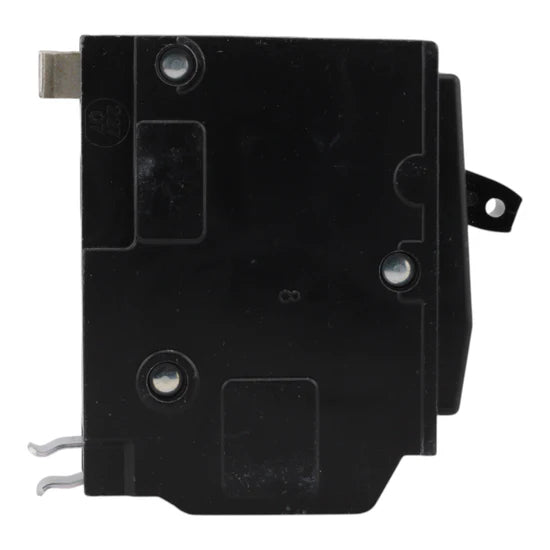

The Square D QO135 35 Amp single-pole miniature circuit breaker provides dependable thermal-magnetic protection for residential and light commercial electrical systems. Built with the proven QO design, it features VisiTrip indication for fast identification of tripped breakers and an over-center trip-free toggle for reliable switching performance. HACR rated and certified to UL and CSA standards, this plug-in breaker is ideal for use in compatible QO load centers requiring consistent overload and short-circuit protection.
Voltage and Rating
- Current Rating: 35 Amps
- Voltage Rating: 120/240 Volts AC
- Interrupting Capacity: 10 kA @ 120/240VAC
- Ambient Rating: 104°F (40°C)
Key Specifications
- Breaker Type: QO Miniature Circuit Breaker
- Number of Poles: 1-Pole
- Mounting Type: Plug-In
- Panel Spaces Required: 1
- Application Rating: HACR rated
- Special Features: VisiTrip trip indication, quick make/break action, over-center trip-free toggle
Technical Specifications
- Electrical Connection: Box lugs
- Wire Compatibility: 8–2 AWG copper or aluminum
- Tightening Torque: 44.3 lbf.in (5 N·m)
- Operating Mechanism: Thermal-magnetic
Product Data
- Manufacturer: Schneider Electric
- Brand: QO
- Model Number: QO135
- UPC: 785901010609
- Certifications: UL Listed, CSA Certified
-
Dimensions:
- Height: 3.1 in
- Width: 0.7 in
- Depth: 2.9 in
- Weight: 0.280 lb
