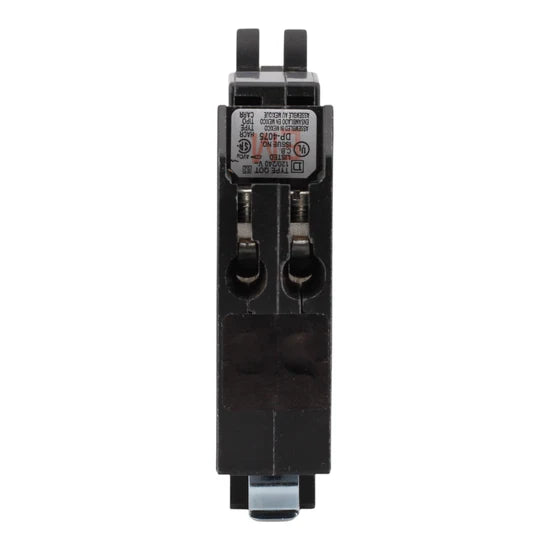

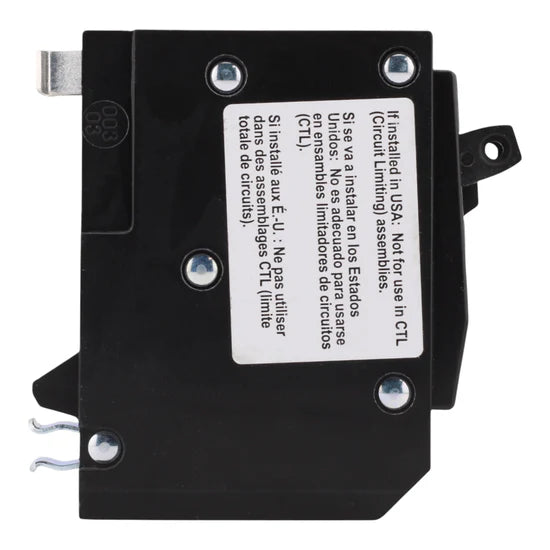

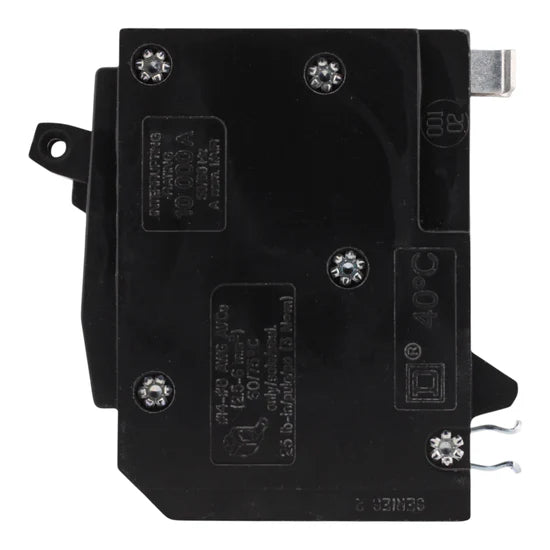

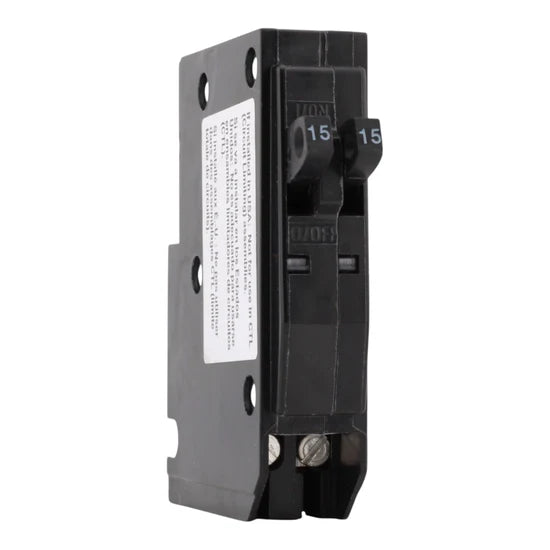

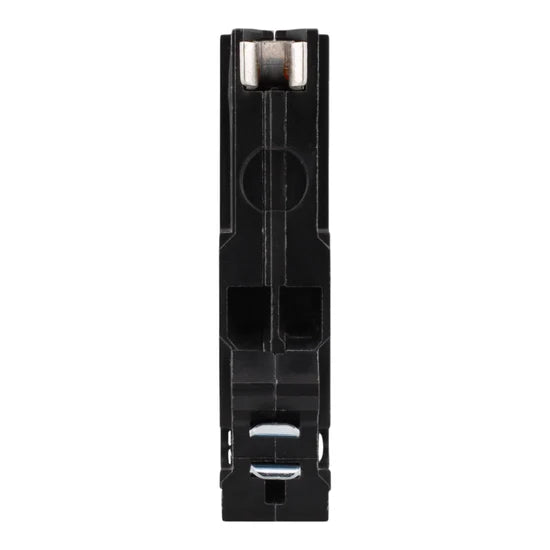

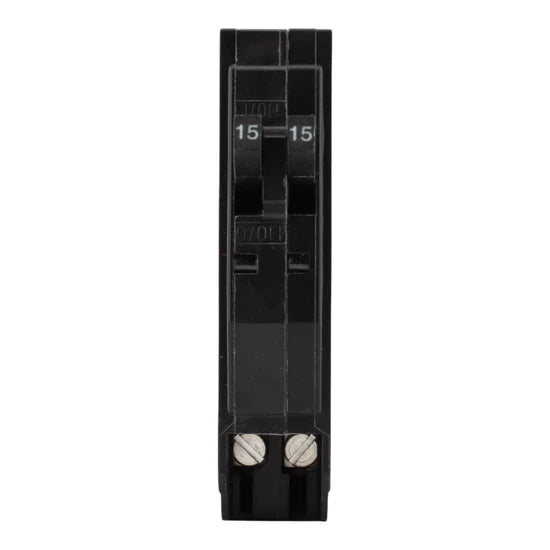

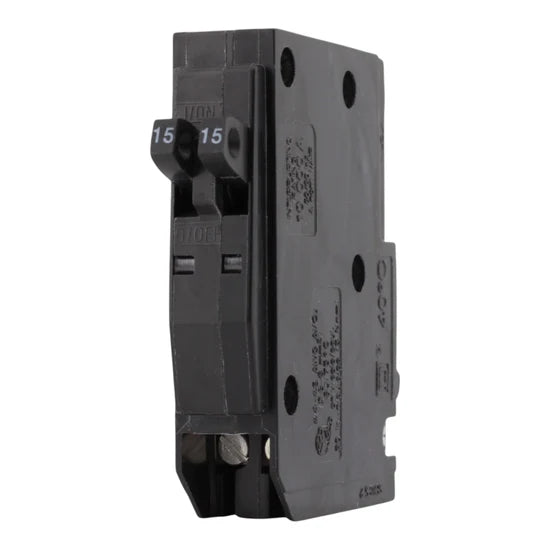

Square D QO1515 15A 1-Pole Tandem Thermal-Magnetic – 120/240V

The Square D QO1515 is a 15 Amp, 1-pole tandem thermal-magnetic circuit breaker designed for Square D QO loadcenters. Featuring box lug connections and a compact plug-in design, it delivers reliable overcurrent protection for residential and commercial 120/240V circuits. UL listed, CSA certified, and HACR rated, it ensures safety and compliance with electrical standards.

Voltage and Rating:

• Current Rating: 15 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 10 kAIC

Key Specifications:

• Breaker Type: Thermal-Magnetic Tandem Circuit Breaker
• Number of Poles: 1-Pole
• Mounting Mode: Plug-in
• Connection Terminals: Box lugs
• Wire Size: #14–8 AWG
• Tightening Torque: 35.4 lb-in
• Application: Residential and commercial circuit protection
• Certifications: UL Listed, CSA Certified, HACR Rated

Physical Specifications:

• Dimensions (H × W × D): 3.2 × 0.7 × 2.9 in
• Weight: 0.280 lbs

Product Data

• • Manufacturer: Schneider Electric
    Brand: Square D
    Model Number: QO1515
    UPC: 785901400905
    Product Range: QO (for Square D QO loadcenters and equipment)
