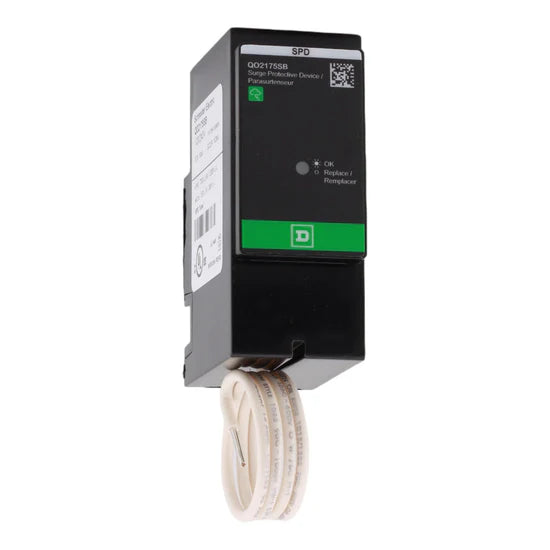

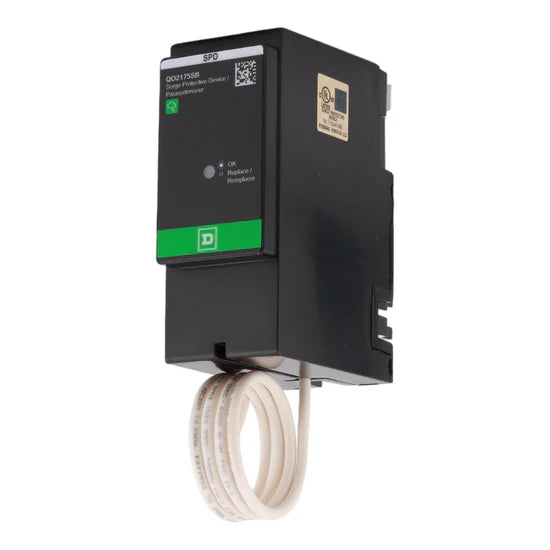

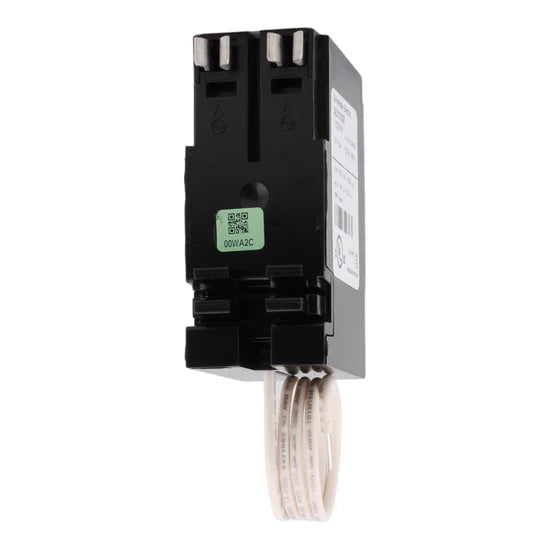

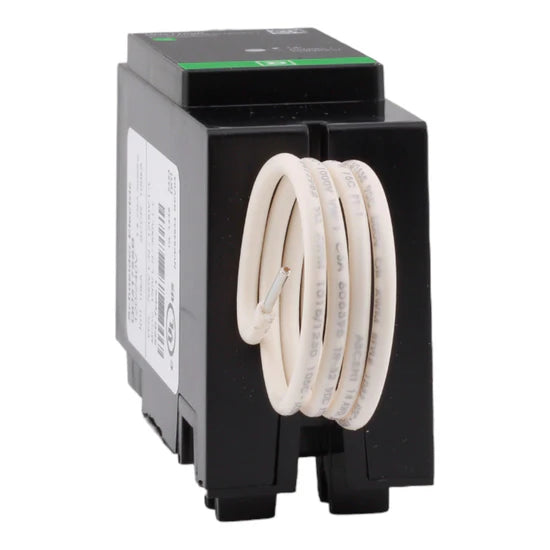

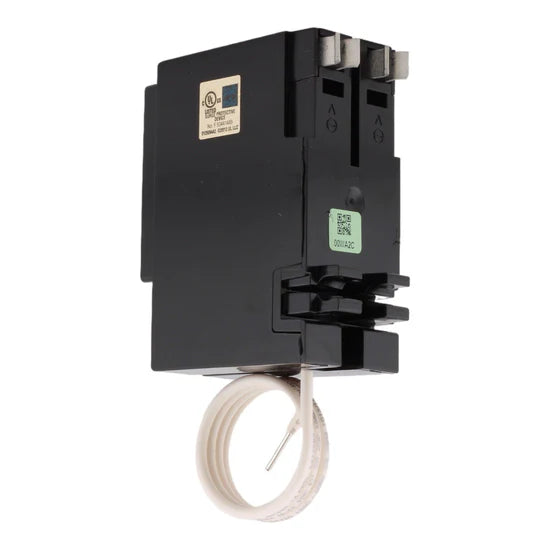

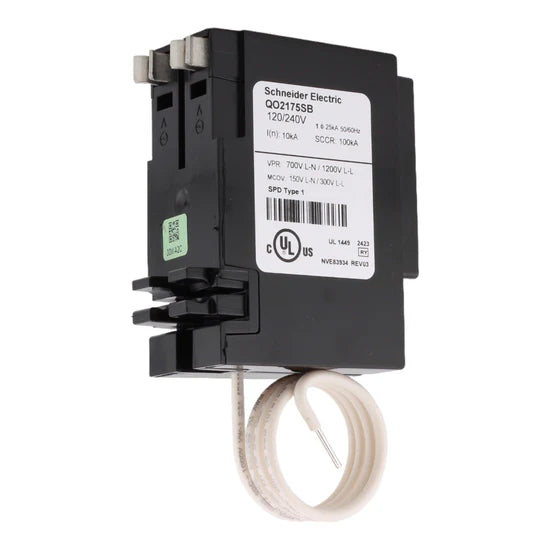

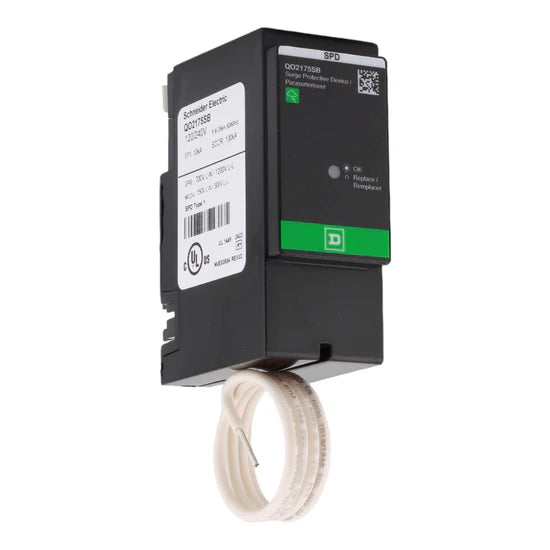

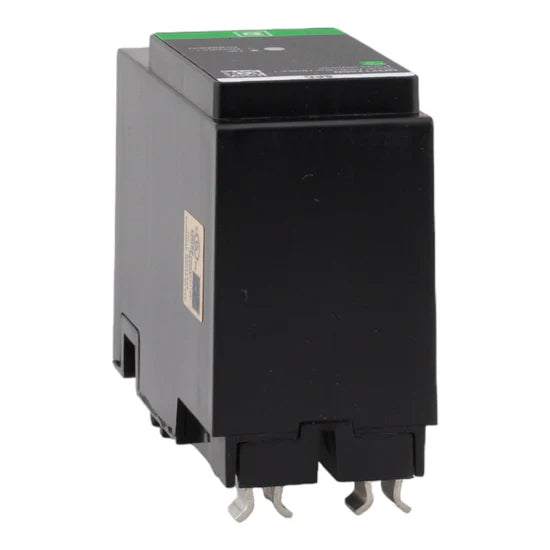

Square D QO2175SB 25kA 2-Pole Type 1 Surge Protection Device – Plug-On – 120/240V
Couldn't load pickup availability
Ask an expert
The Square D QO2175SB Surgebreaker provides robust whole-house surge protection for residential 120/240V electrical systems. Designed specifically for Square D QO load centers, this Type 1 surge protective device (SPD) helps safeguard sensitive electronics and major appliances from damaging voltage spikes caused by lightning and utility disturbances.
With a 25kA surge current capacity and direct plug-on installation, the QO2175SB ensures fast response and simplified installation. Its compact design and high SCCR rating make it an excellent choice for reliable residential surge suppression. UL and CSA certifications confirm compliance with recognized safety standards.
Voltage & Rating
- Surge Current: 25 kA
- Nominal Discharge Current (In): 10 kA
- Voltage Rating: 120/240 Volts AC
- MCOV: 150 V (L-N); 300 V (L-L)
- Voltage Protection Rating (VPR): 700 V (L-N); 1500 V (L-L)
- Short Circuit Current Rating (SCCR): 100 kA
- Phases: 1-Phase
- Wiring Configuration: 3-Wire
Key Specifications
- Device Type: Surge Protective Device (Type 1 SPD)
- Mounting Type: Plug-On
- Compatibility: Square D QO Load Centers
- Enclosure Rating: NEMA 2
- Application: Whole-house surge protection
- Certifications: UL Listed, CSA Certified
Product Data
- Manufacturer: Schneider Electric
- Brand: Square D
- Model Number: QO2175SB
- UPC: 785901210894
-
Dimensions:
- Height: 3.7 in
- Width: 1.5 in
- Depth: 2.6 in
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
