Square D

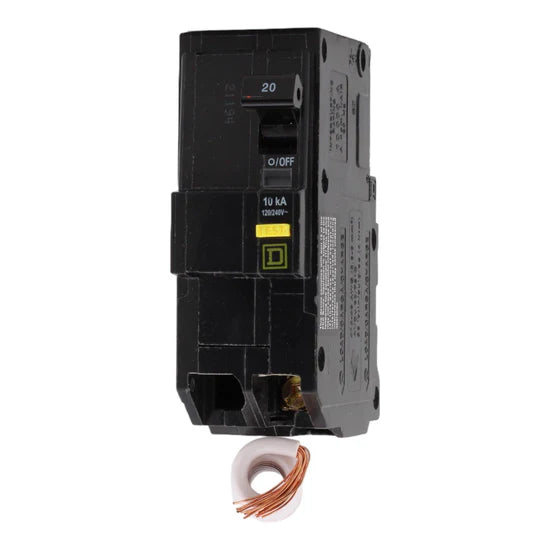

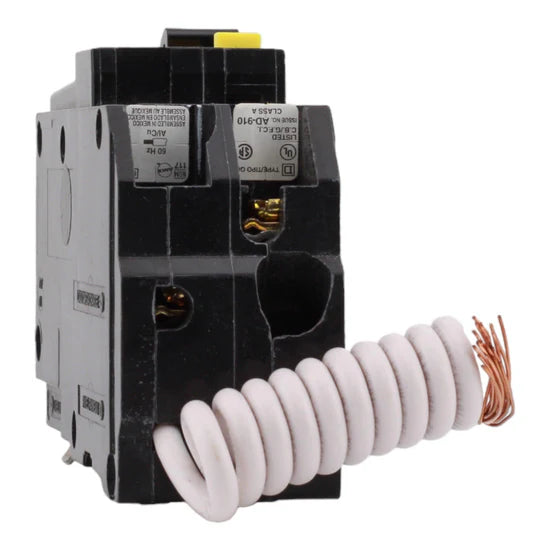

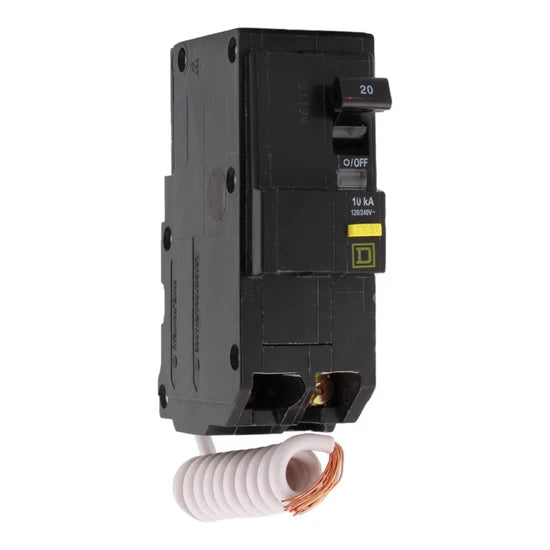

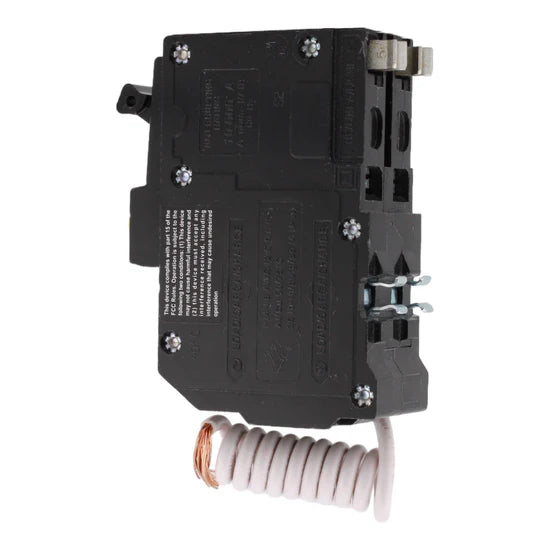

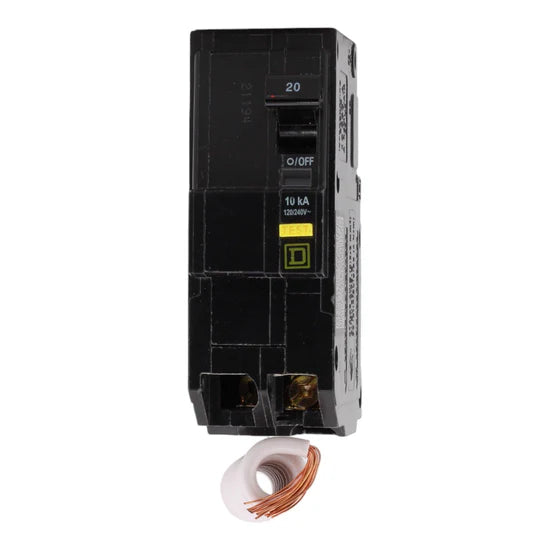

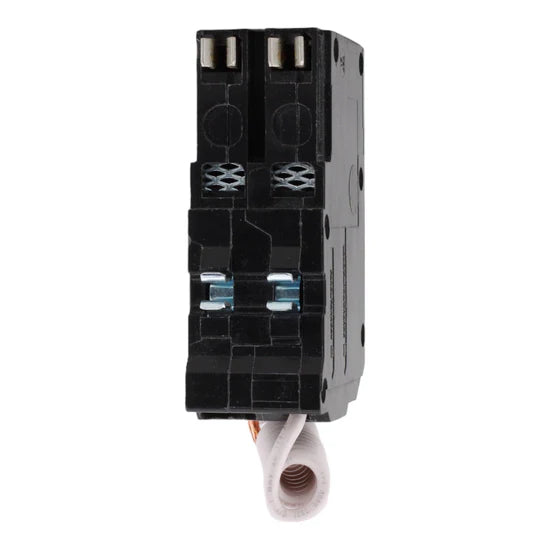

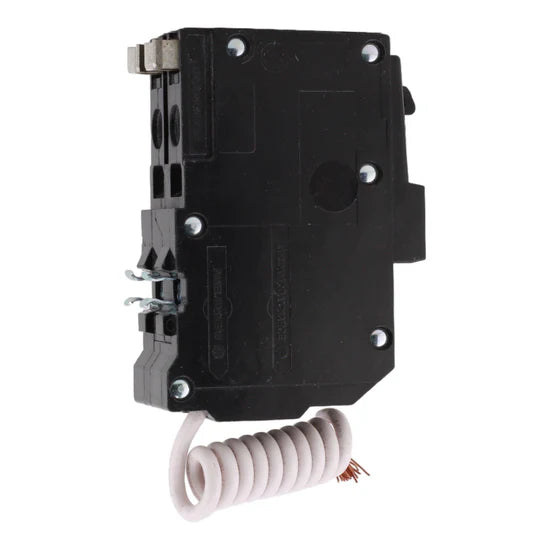

Square D QO220GFI 20A 2-Pole GFCI Circuit Breaker – Pigtail Neutral – 120/240V

In stock
SKU: QO220GFI GTIN/UPC: 785901562993
$159.79
SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $99
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D QO220GFI 20 Amp 2-Pole ground-fault circuit interrupter (GFCI) breaker provides reliable protection for residential 120/240V circuits. Featuring a pigtail neutral connection, it simplifies installation in QO load centers while delivering enhanced safety against ground faults.

With a 10kA interrupt rating and Class A 6 mA ground-fault protection, the QO220GFI ensures fast response to electrical faults. UL and CSA certifications guarantee compliance with recognized safety standards, making it a trusted choice for kitchens, bathrooms, and other areas requiring GFCI protection.

Voltage & Rating

  • Current Rating: 20 Amps
  • Voltage Rating: 120/240 Volts AC
  • Interrupting Capacity: 10 kAIC
  • Ground-Fault Protection: Class A, 6 mA

Key Specifications

  • Breaker Type: Ground-Fault Circuit Breaker (GFCI)
  • Number of Poles: 2-Pole
  • Mounting Type: Plug-In
  • Connection Type: Pigtail Neutral
  • Wire Size: AWG 14–8 Copper; AWG 12–8 Aluminum
  • Tightening Torque: 35.4 lbf.in (4 N·m)
  • Certifications: UL Listed, CSA Certified

Technical Specifications

  • Dimensions: Height: 4.1 in; Width: 1.5 in; Depth: 2.9 in
  • Weight: 1.001 lbs

Product Data

    • Manufacturer: Schneider Electric
    • Brand: Square D
    • Model Number: QO220GFI
    • UPC: 785901562993
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
