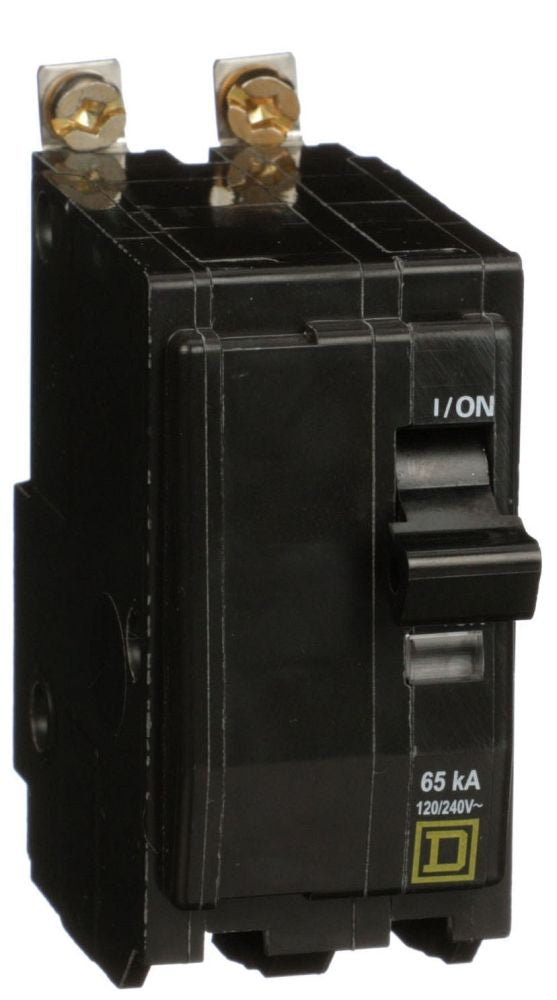

Square D QO225VH Miniature Circuit Breaker – 25A – 2 Pole – 120/240V – Plug-In – VisiTrip – QO Series

The Square D QO225VH is a QO-series plug-in miniature circuit breaker designed for reliable overcurrent protection in QO load centers and compatible panelboards. It provides thermal magnetic protection with both long-time and instantaneous trip functions. The integrated VisiTrip indicator allows quick visual identification of a tripped breaker, improving troubleshooting and system safety in residential and light commercial installations.

Electrical Ratings

• Current Rating: 25 A
• Voltage Rating: 120/240 VAC
• Phase: 1 Phase
• Poles: 2 Pole
• Interrupting Rating: 22 kA @ 120/240 VAC

Protection and Function

• Trip Technology: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous
• Protection Type: Overload and Short-Circuit Protection
• Application: Branch circuit protection and switching

Configuration and Function

• Series: QO Series (Square D / Schneider Electric)
• Model: QO
• Catalog Number: QO225VH
• Frame Type: QO Miniature Frame
• Mounting Style: Plug-In
• Compatibility: QO Load Centers and compatible panelboards

Mechanical and Physical Characteristics

• Compact molded breaker housing
• Plug-in installation for fast mounting in QO panels
• Integrated VisiTrip fault indication system
• Over-center, trip-free toggle mechanism
• Quick-make / quick-break switching action
• Positive handle position indication for status visibility

Standards and Certifications

• UL Listed (UL File E84967)
• CSA Certified (Master Contract 153555)
• Manufactured by Schneider Electric / Square D
• Designed for North American electrical distribution standards
