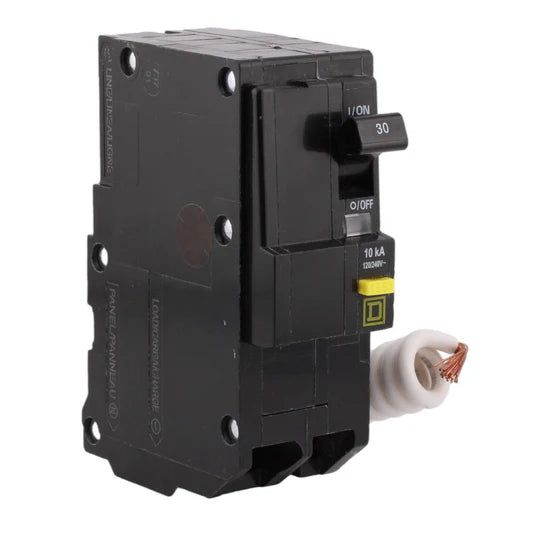

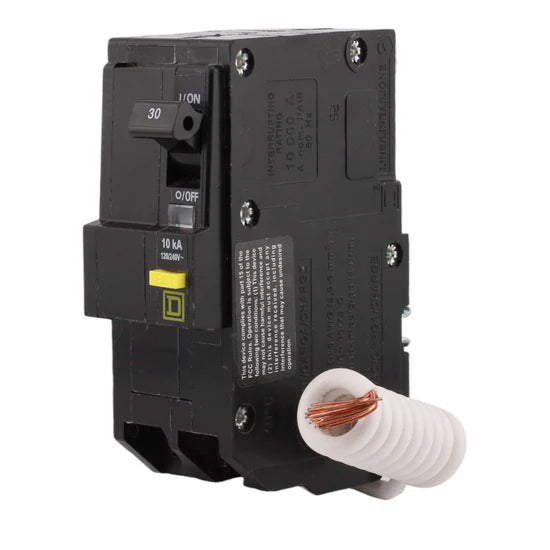

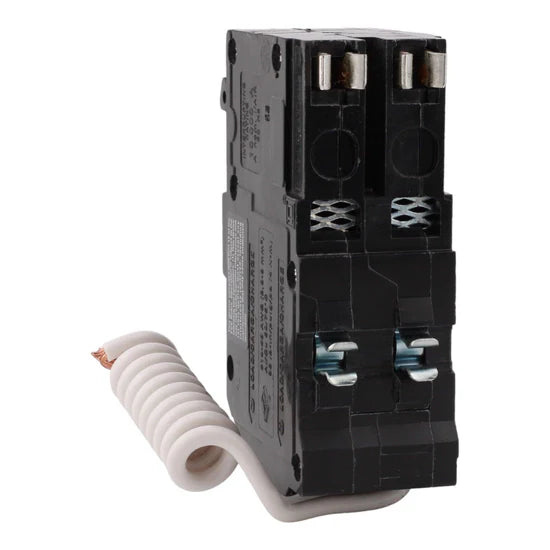

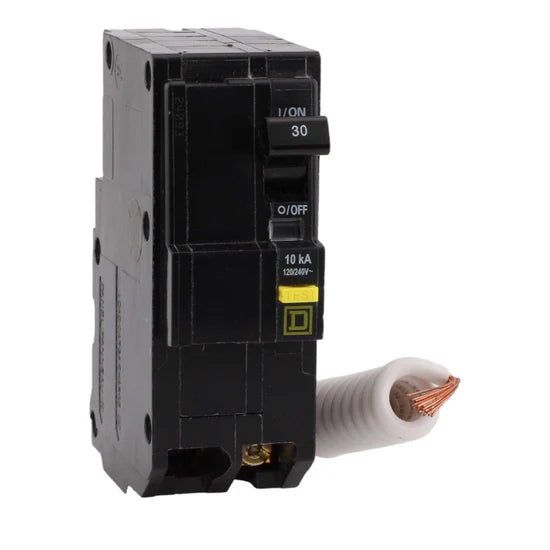

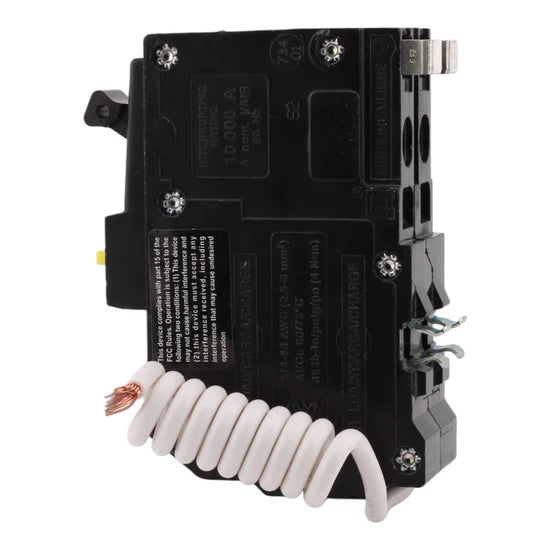

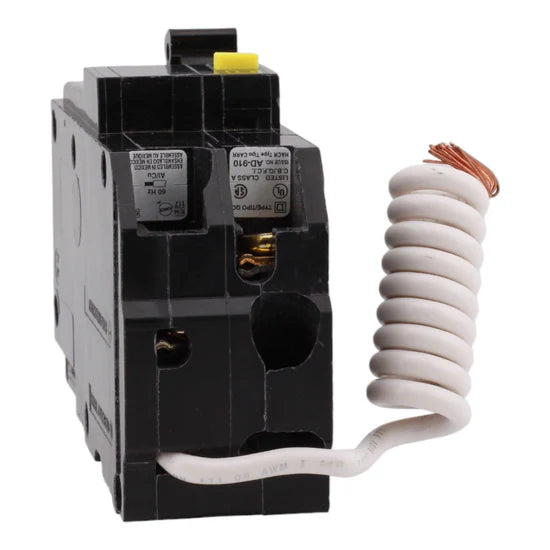

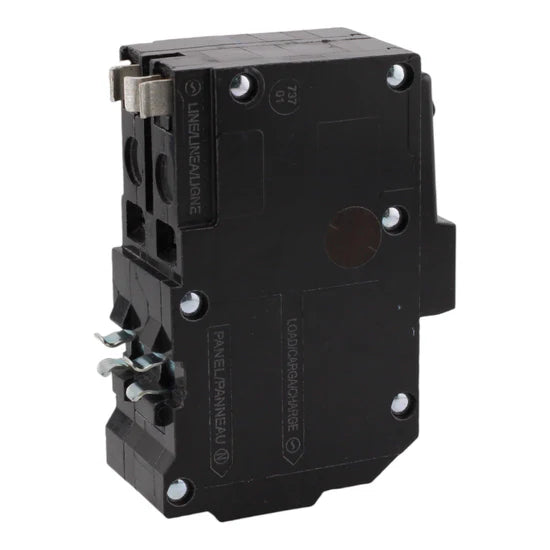

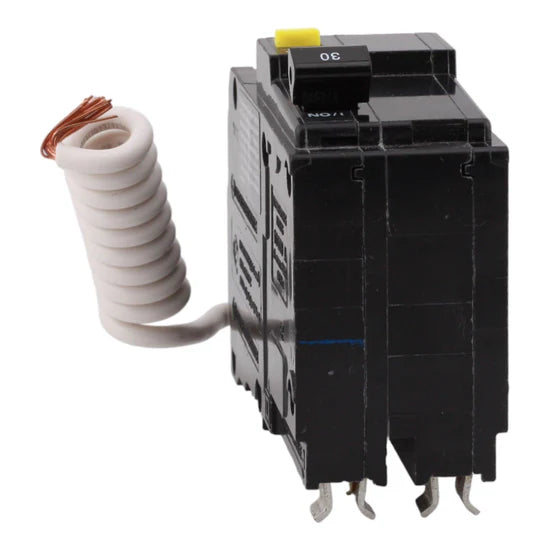

Square D QO230GFI 30A 2-Pole GFCI Circuit Breaker – Pigtail Neutral – 120/240V

The Square D QO230GFI is a 2-pole, 30A GFCI (Ground-Fault Circuit Interrupter) breaker designed for QO load centers. Manufactured by Schneider Electric under the Square D brand, it delivers reliable overcurrent and ground-fault protection for 120/240V circuits. Its pigtail neutral plug-in design ensures fast, secure installation, providing enhanced safety for residential and light commercial applications.

Voltage and Ratings

• Voltage Rating: 120/240 Volts AC
• Current Rating: 30 Amps
• Poles: 2-Pole
• Interrupt Rating: 10 kAIC
• Ground Fault Protection: Class A, 6 mA

Key Specifications

• Breaker Type: GFCI (Ground-Fault Circuit Interrupter)
• Mounting Type: Plug-In / Pigtail Neutral
• Technology: Thermal-Magnetic
• Application: Branch circuit protection in QO load centers
• Compatibility: Square D QO load centers

Technical Specifications

• Wire Size: AWG 14–8 (Copper); AWG 12–8 (Aluminum)
• Tightening Torque: 35.4 lbf.in (4 N·m)
• Dimensions (H × W × D): 4.1 in × 1.5 in × 2.9 in
• Weight: 0.721 lbs
• Certifications: UL Listed, CSA Certified

Product Data

• • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: QO230GFI
  • UPC: 785901563006
