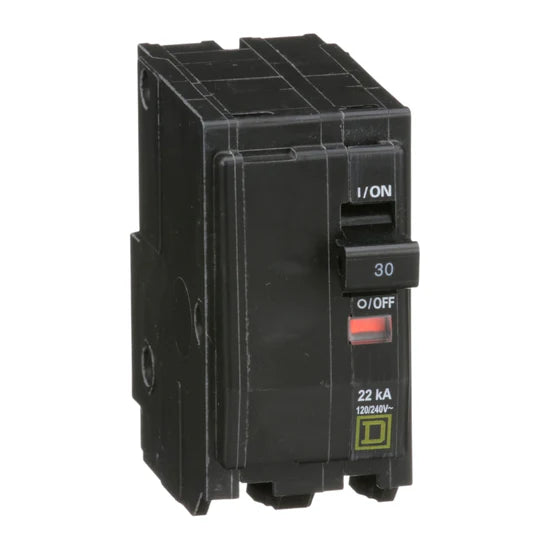

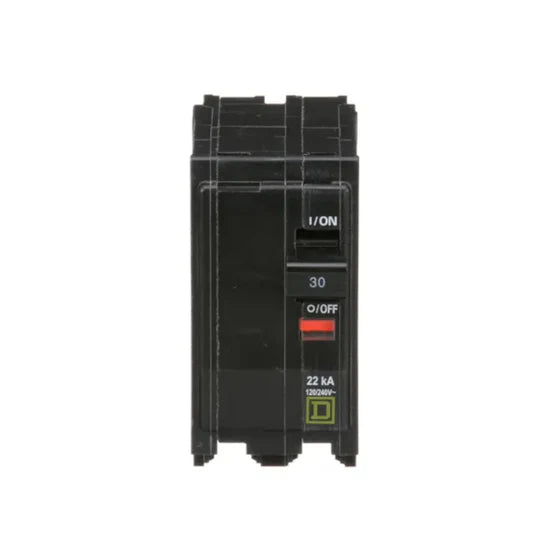

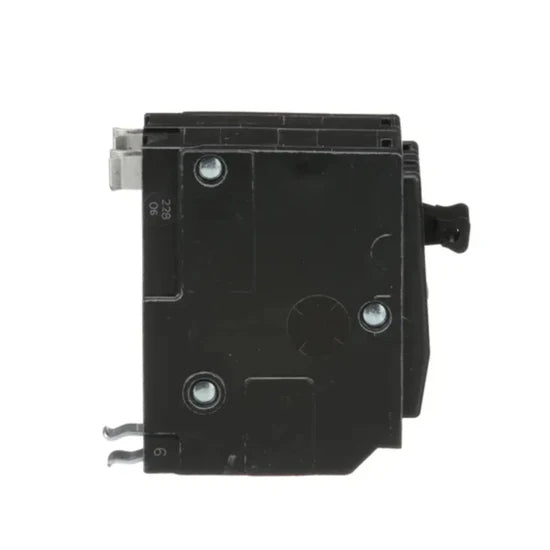

Square D QO230VH 30A 2-Pole Standard – Plug-On – 120/240V

The Square D QO230VH 30A 2-Pole Standard – Plug-On – 120/240V circuit breaker delivers reliable 30 Amp, 2-pole thermal-magnetic protection for residential and light commercial 120/240V AC systems. Designed for Square D QO loadcenters and equipment, this standard breaker features a high 22 kAIC interrupt rating, ensuring superior overcurrent protection. The plug-on connection and pressure plate terminals simplify installation, while the Visi-Trip indicator enables fast fault detection and easy troubleshooting. Compatible with copper and aluminum conductors up to AWG 8, it provides durable, safe, and efficient performance for critical branch circuits.

Voltage and Rating

• Current Rating: 30 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 22 kAIC
• Frequency: 50/60 Hz

Key Specifications

• Breaker Type: Standard (thermal-magnetic)
• Number of Poles: 2-Pole
• Mounting Type: Plug-On
• Product Range: QO (for Square D QO loadcenters and equipment)
• Application: Residential and light commercial branch circuit protection
• Special Features: Visi-Trip indicator
• Ratings: UL Listed, CSA

Technical Specifications

• Connection Type: Pressure plate
• Wire Size: AWG 14–8 Cu/Al
• Terminal Tightening Torque: 40.7 lb-in
• Operating Mechanism: Thermal-magnetic
• Interrupt Rating: 22 kAIC
• Certifications: UL Listed, CSA

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: QO20VH
• UPC: 785901371847

  Dimensions


• • Height: 3.0 in
  • Width: 1.5 in
  • Depth: 2.9 in
  • Weight: 0.580 lbs
