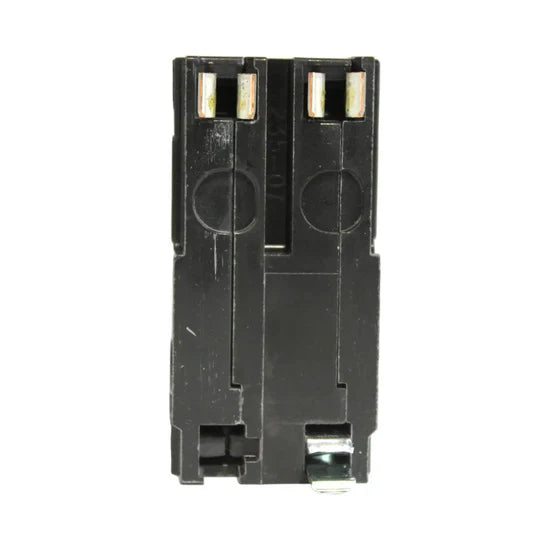

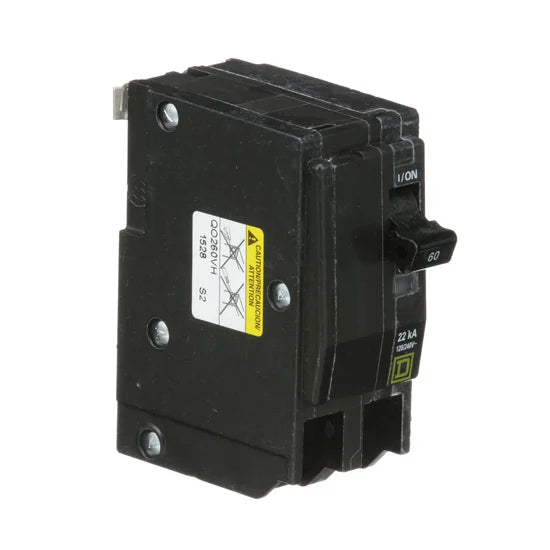

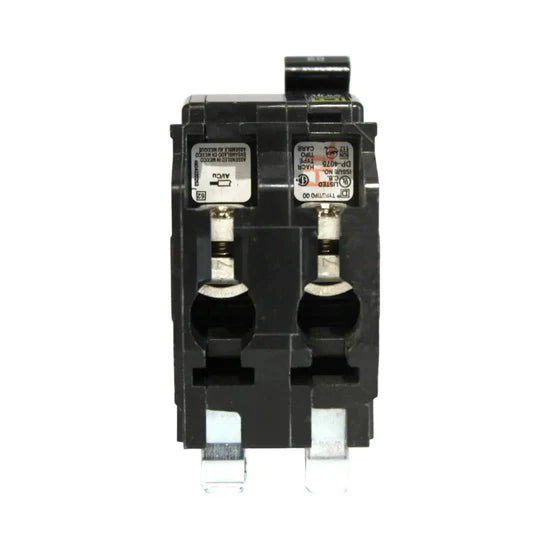

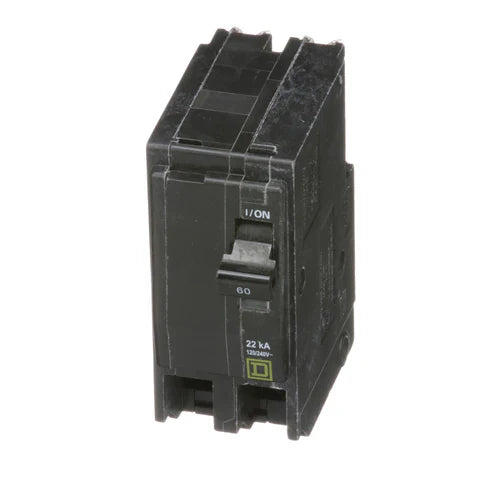

Square D QO260VH 60A 2-Pole Thermal Magnetic Circuit Breaker – Plug-In – 120/240V
Couldn't load pickup availability
Ask an expert
The Square D QO260VH is a 60 Amp, 2-Pole thermal magnetic circuit breaker engineered for reliable protection in QO load centers, NQ/NQOD panelboards, and Speed-D switchboards. With a high 22 kA interrupt rating and plug-in design, it is well suited for residential and light commercial applications.
Voltage and Rating
- Amperage: 60 Amps
- Voltage: 120/240 Volts AC
- Poles: 2-Pole
- Interrupt Rating: 22 kAIC
Key Specifications
- Breaker Type: Thermal Magnetic Miniature Circuit Breaker
- Mounting Mode: Plug-in
- Terminal Type: Box Lug
- Wire Size: #8–2 AWG Cu/Al
- Tightening Torque: 44.25 lb-in
Product Data
- Manufacturer: Schneider Electric
- Brand: Square D
- Product Range: QO
- Model Number: QO260VH
- UPC: 785901054979
Dimensions
- Height: 3.12 in
- Width: 1.5 in
- Depth: 2.91 in
- Weight: 0.701 lbs
Certifications
- UL Listed
- CSA Certified
- HACR Rated
- Type Circuit Breakers
