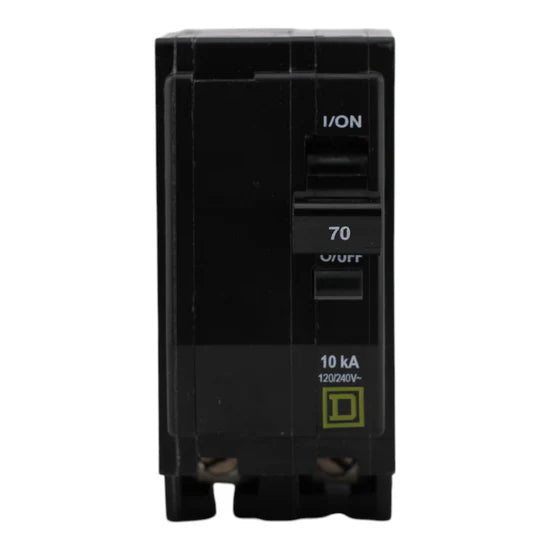

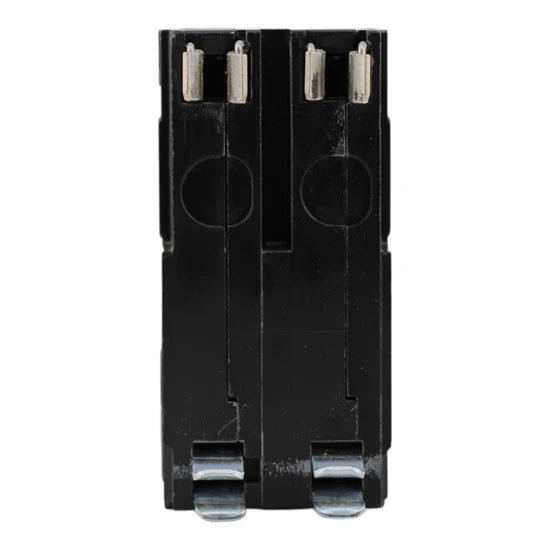

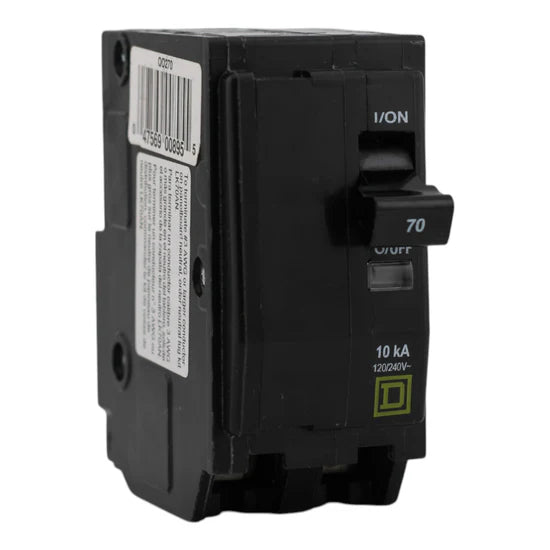

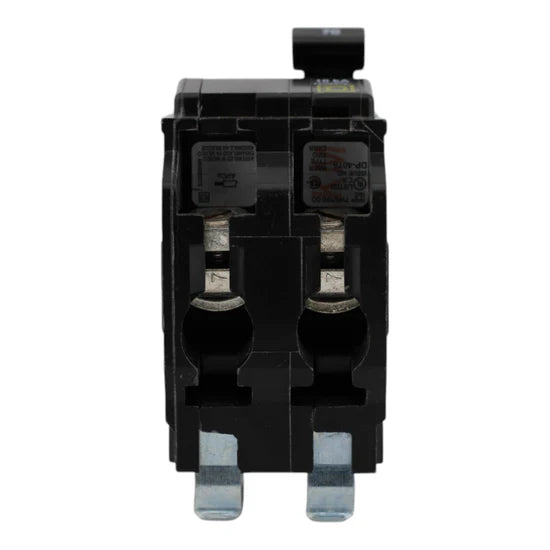

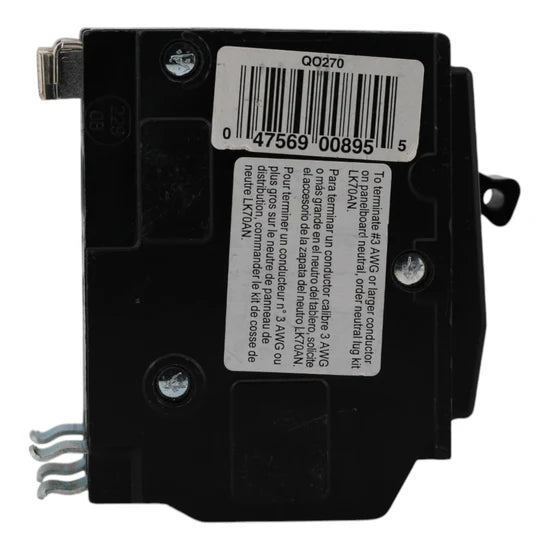

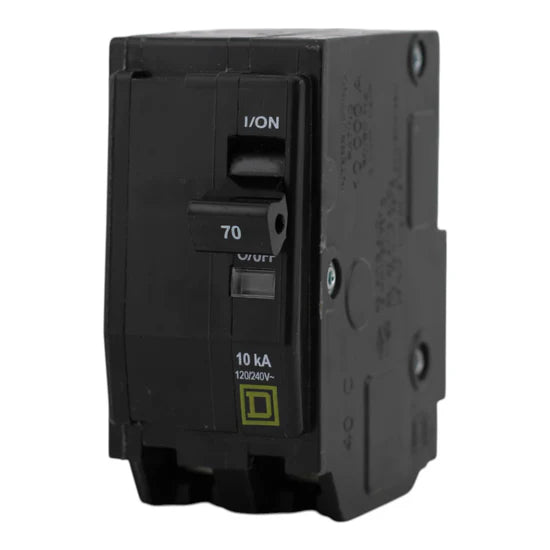

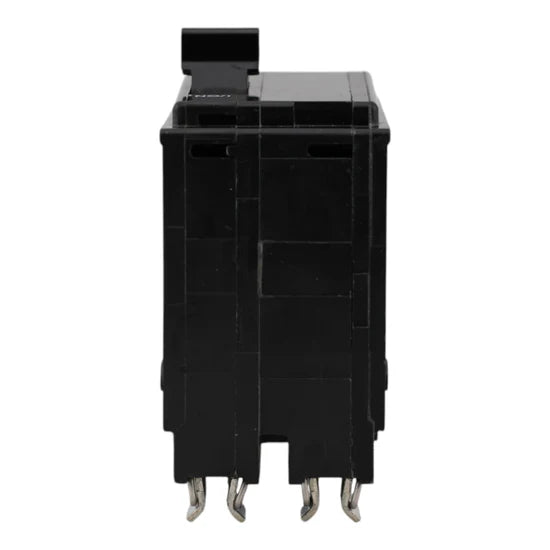

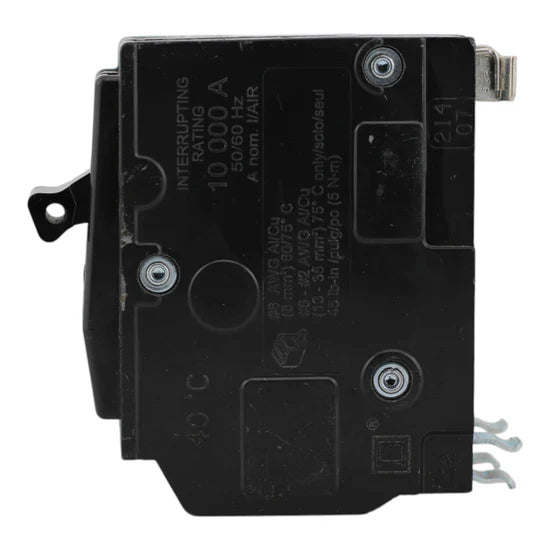

Square D QO270 70A 2-Pole Standard Circuit Breaker – Plug-In – 120/240V

The Square D QO270 70 Amp two-pole standard circuit breaker provides reliable overload and short-circuit protection for residential and light commercial applications. Designed for QO series panels with plug-in mounting, it features HACR rating and VisiTrip indication for easy identification of tripped circuits. UL listed and CSA certified, this breaker ensures safe and dependable performance.

Voltage and Rating

• Current Rating: 70 Amps
• Voltage Rating: 120/240V AC
• Short Circuit Current Rating: 10 kA
• Poles: 2-Pole

Key Specifications

• Breaker Type: Standard Circuit Breaker
• Product Line: QO Series
• Mounting Type: Plug-In
• Connection Type: Box lugs
• Wire Size Compatibility: 8–2 AWG (Copper or Aluminum)
• Tightening Torque: 44.3 lbf.in (5 N·m)
• Features: VisiTrip trip indication
• HACR Rated: Yes

Certifications

• UL Listed
• CSA Certified

Product Data

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: QO270
  • UPC: 785901400585
  • Dimensions (H × W × D): 3.1 × 1.5 × 2.9 in
  • Weight: 0.6 lb
