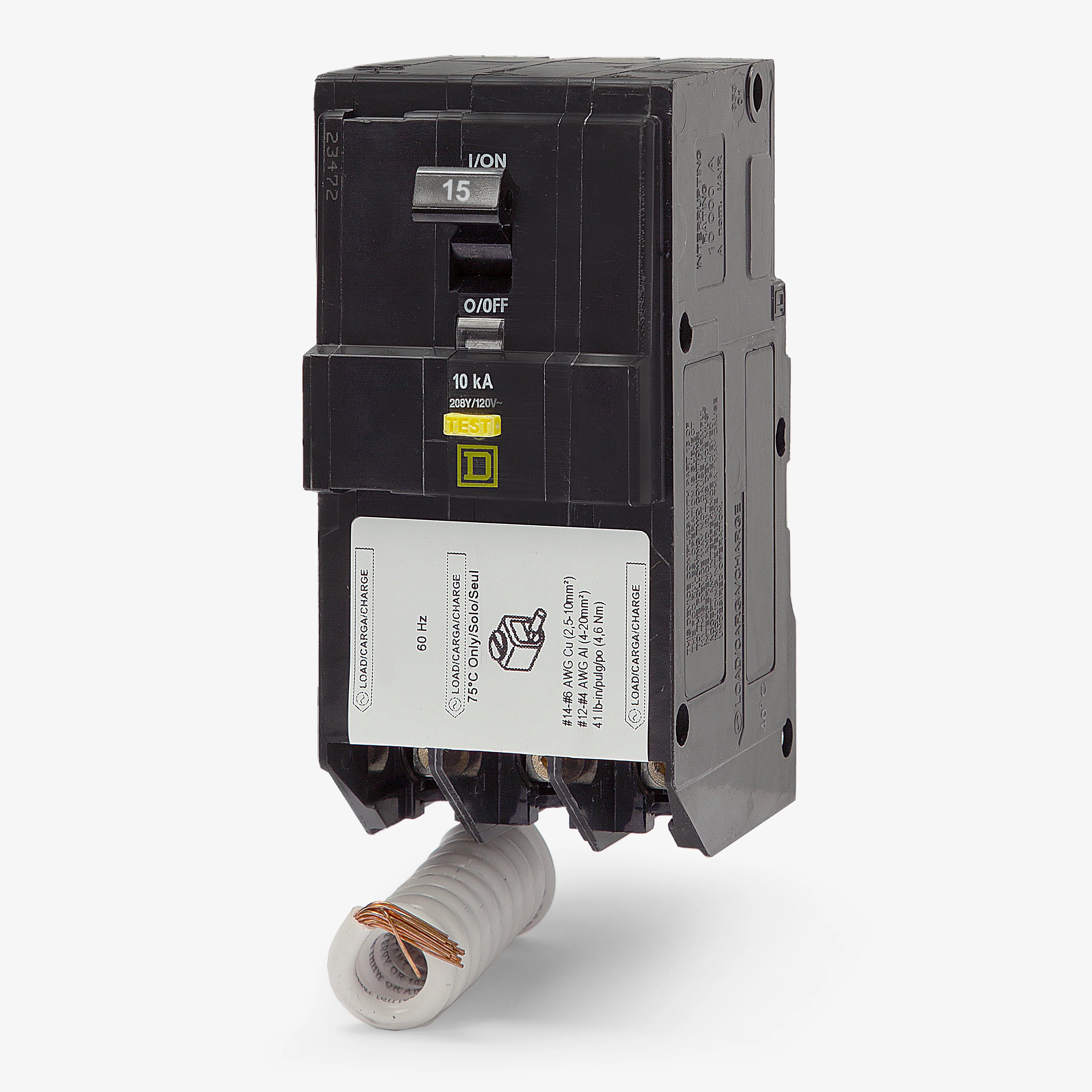

Square D QO315GFI Ground Fault Circuit Breaker – 15A – 3 Pole – 208Y/120VAC – Plug-On – 6mA GFCI – QO Series

The Square D QO315GFI is a QO-series three-pole ground fault circuit interrupter (GFCI) breaker designed for commercial and industrial 208Y/120VAC systems. It provides thermal magnetic protection combined with 6mA ground fault detection for enhanced personnel and equipment safety. Featuring a Visi-Trip indicator, this breaker allows fast identification of tripped conditions. It installs into standard Square D QO load centers and NQ panelboards using a plug-on connection and includes a pigtail neutral for proper GFCI operation.

Electrical Ratings

• Current Rating: 15 A
• Voltage Rating: 208Y/120VAC
• Frequency: 50/60 Hz
• Phase: 3 Phase
• Poles: 3 Pole
• Interrupting Rating: 10 kA @ 208Y/120VAC
• Ground Fault Sensitivity: 6 mA

Protection and Function

• Trip Technology: Thermal Magnetic + Ground Fault (GFCI)
• Trip Function Code: LIG (Long-Time, Instantaneous, Ground Fault)
• Trip Function: Overload, short-circuit, and ground fault protection
• Protection Type: Personnel protection (GFCI) + branch circuit protection
• Application: Commercial and industrial distribution systems

Configuration and Function

• Series: QO Series (Square D / Schneider Electric)
• Model: QO315GFI
• Catalog Number: QO315GFI
• Frame Type: QO Miniature Frame
• Mounting Style: Plug-On
• Terminal Type: Pressure Plate
• Neutral Type: Pigtail neutral included
• Compatibility: QO Load Centers, NQ Panelboards

Mechanical and Physical Characteristics

• Compact molded breaker housing
• Plug-on installation for QO system compatibility
• Integrated Visi-Trip fault indicator
• Pigtail neutral lead for GFCI sensing circuit
• Pressure plate terminals for secure wiring connection
• Wire range: 14–8 AWG copper, 12–8 AWG aluminum
• Designed for high-density panelboard installations

Standards and Certifications

• UL 489 Listed
• CSA C22.2 No. 5 Certified
• RoHS compliant
• HACR rated
• Manufactured by Schneider Electric / Square D
• Designed for North American electrical safety standards

Features

• 6mA ground fault protection for enhanced safety
• Thermal magnetic protection for overload and short-circuit faults
• Visi-Trip indicator for rapid fault identification
• Plug-on mounting for QO compatibility
• Pigtail neutral for proper GFCI sensing operation
• Suitable for commercial and industrial applications
• Reliable performance in QO and NQ panelboard systems
• Supports accessory options (shunt trip, auxiliary, alarm switches)
