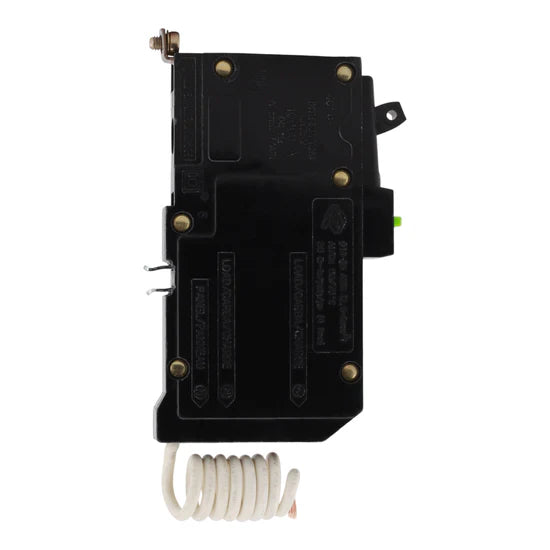

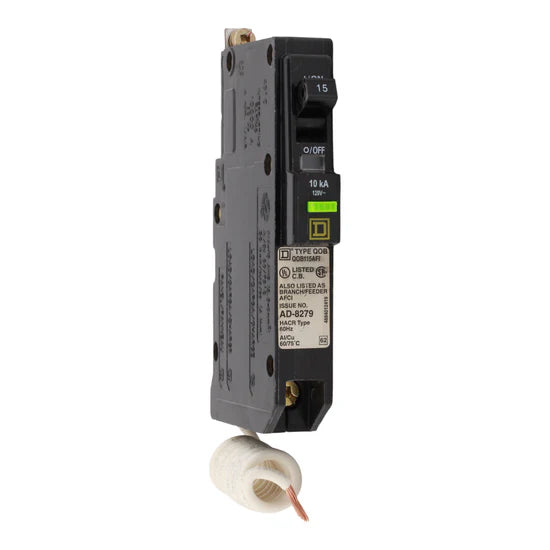

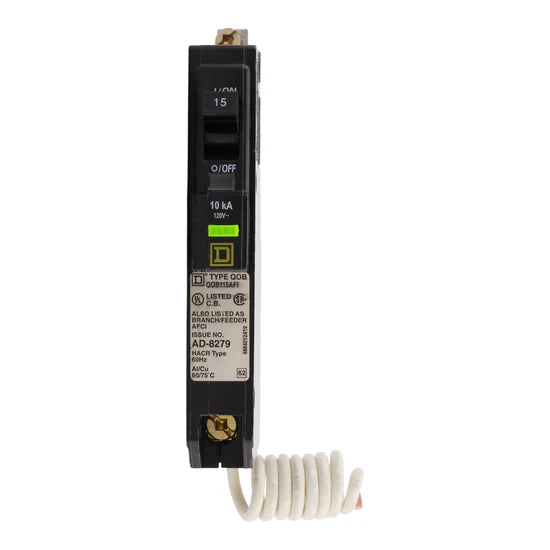

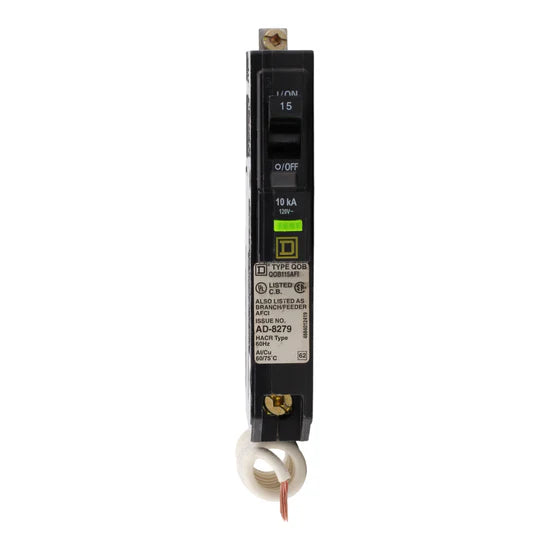

The circuit breaker provides reliable arc-fault protection for residential and commercial 120V circuits. Designed for Square D QO loadcenters, this 1-pole AFCI breaker automatically detects dangerous arc faults to enhance safety. Featuring a pigtail neutral connection, it simplifies installation while maintaining trusted performance.
Voltage and Rating:
- Current Rating: 15 Amps
- Voltage Rating: 120 Volts AC
- Interrupting Capacity: 10 kAIC
Key Specifications:
- Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
- Number of Poles: 1-Pole
- Mounting Type: Bolt-On

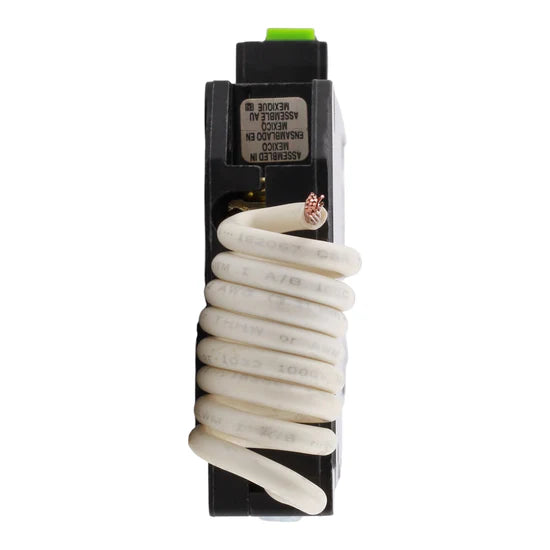

- Connection Type: Pigtail neutral
- Application: Residential and commercial circuit protection
- Product Range: QO Series (for QO loadcenters)
Technical Specifications:
- Wire Size: (1) #14–8 AWG Cu, (1) #12–8 AWG Al
- Terminal Tightening Torque: 35.4 lb-in
- Operating Mechanism: Thermal-magnetic with AFCI protection
- Certifications: UL Listed, CSA Certified, HACR Rated
Product Data:
- Manufacturer: Schneider Electric
- Brand: Square D
- Model Number: QOB115AFI
- UPC: 785901485896
-
Dimensions:
- Height: 4.8 in
- Width: 0.7 in
- Depth: 2.9 in
- Weight: 0.571 lbs
