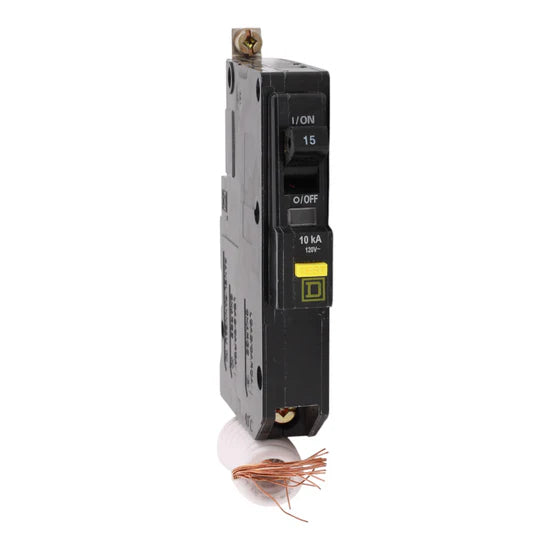

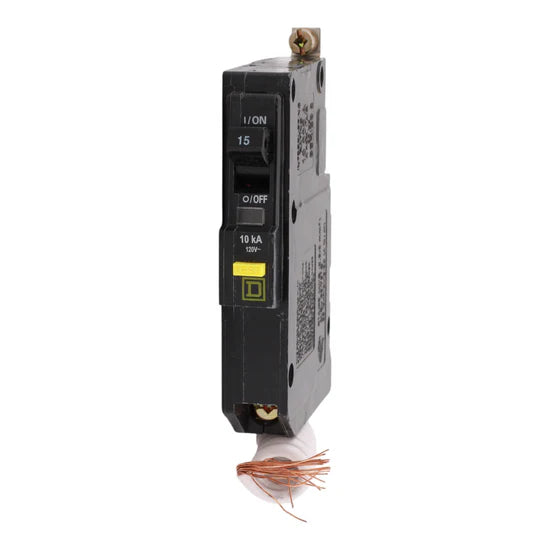

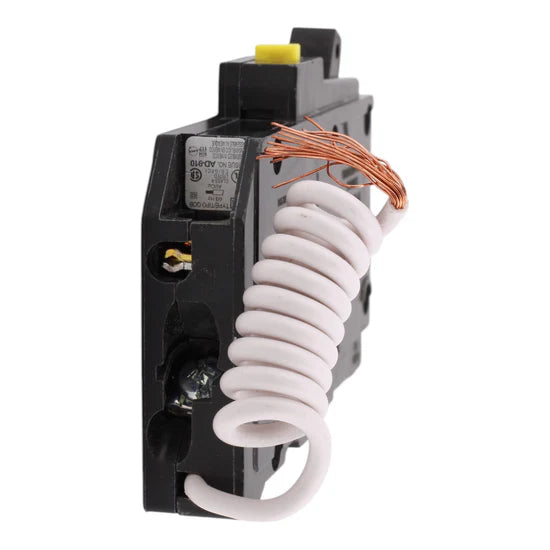

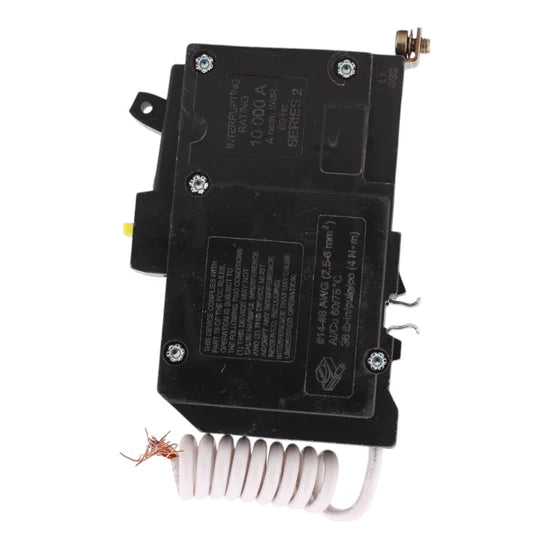

The **Schneider Electric Square D QOB115GFI 15 Amp single-pole GFCI circuit breaker provides reliable Class A ground-fault protection for commercial and residential electrical systems. Designed for Square D QOB load centers, this thermal-magnetic breaker trips at 6 mA to help reduce shock hazards. The bolt-on mounting ensures secure panel installation, while the compact design supports efficient space utilization.
Voltage and Rating
- Amperage Rating: 15 Amps
- Voltage Rating: 120 Volts AC
- Ground-Fault Trip Level: Class A (6 mA)
- Short Circuit Current Rating: 10 kAIC
Key Specifications
- Type: Ground Fault Circuit Breaker (GFCI)
- Breaker Technology: Thermal Magnetic
- Number of Poles: 1-Pole
- Connection Type: Bolt-On
- Applications: Branch circuit ground-fault protection
- Compatibility: Square D QOB load centers
Technical Specifications
- Wire Size: AWG 14–8 Copper or Aluminum
- Terminal Tightening Torque: 35.4 lbf-in (4 N·m)
- Protection Function: Ground-fault detection and interruption
- Certifications: UL Listed, CSA Certified
Product Data
-
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: QOB115GFI
- UPC: 785901368700
- Dimensions (H × W × D): 4.1 in × 0.7 in × 2.9 in
- Weight: 0.529 lb
