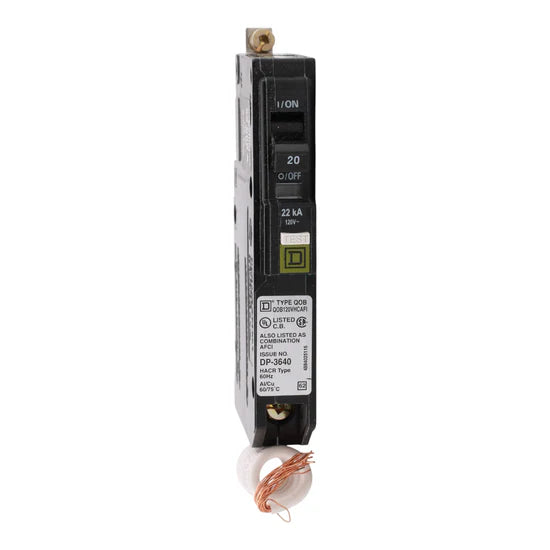

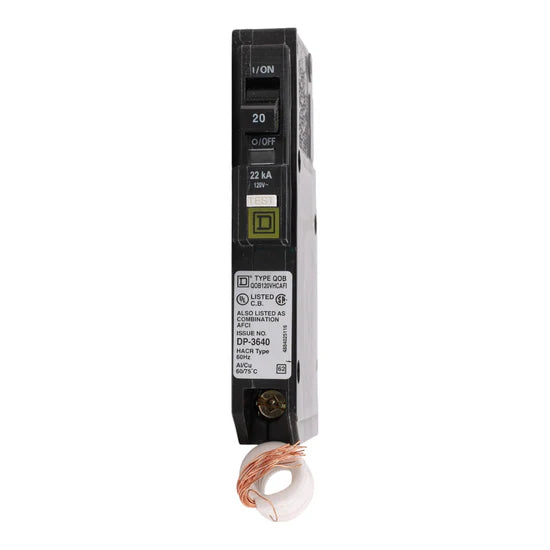

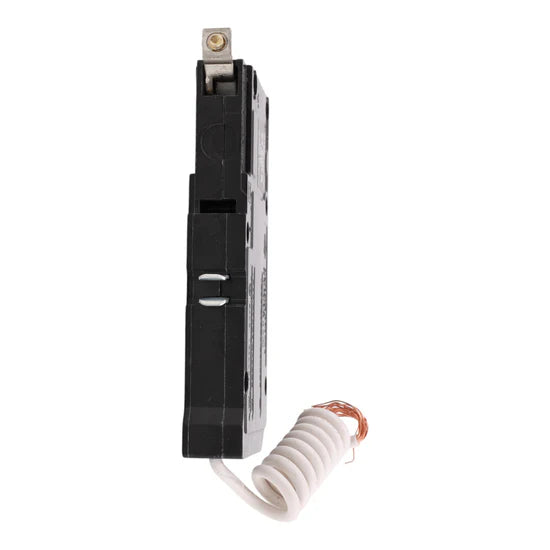

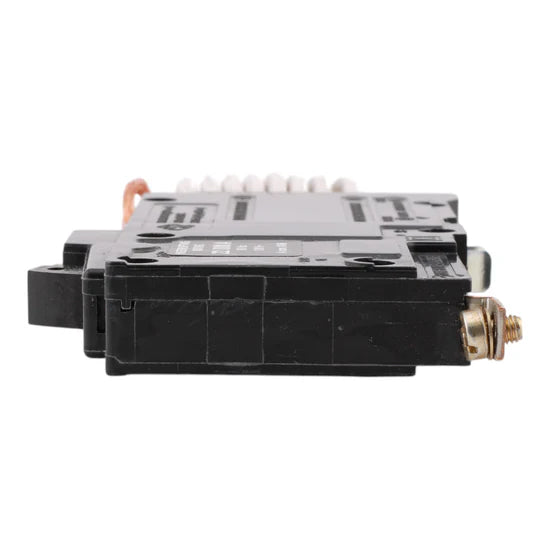

Square D QOB120VHCAFI 20A 1-Pole CAFI Circuit Breaker – Bolt-On – 120V

The Square D QOB120VHCAFI 20 Amp 1-Pole Combination Arc Fault (CAFI) Circuit Breaker provides advanced protection against arc faults in residential electrical systems. Designed for QO load centers, this breaker features a bolt-on mounting style with a pigtail neutral connection for easy installation. With a 22kA SCCR interrupting rating and UL/CSA listing, it ensures safe and reliable performance in home circuits.

Voltage and Rating

• Voltage Rating: 120V AC
• Amperage Rating: 20A
• Interrupt Rating: 22kA

Key Specifications

• Breaker Type: Combination Arc Fault (CAFI)
• Number of Poles: 1-Pole
• Mounting Type: Bolt-On
• Number of Panel Spaces Required: 1

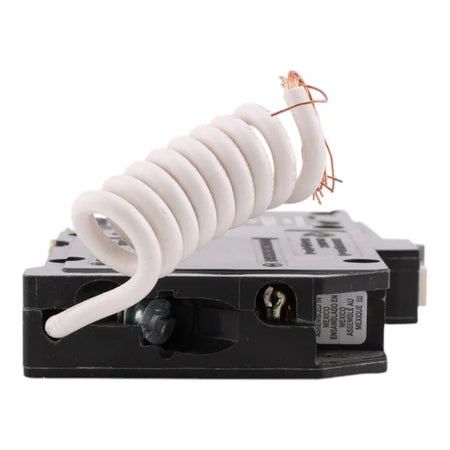

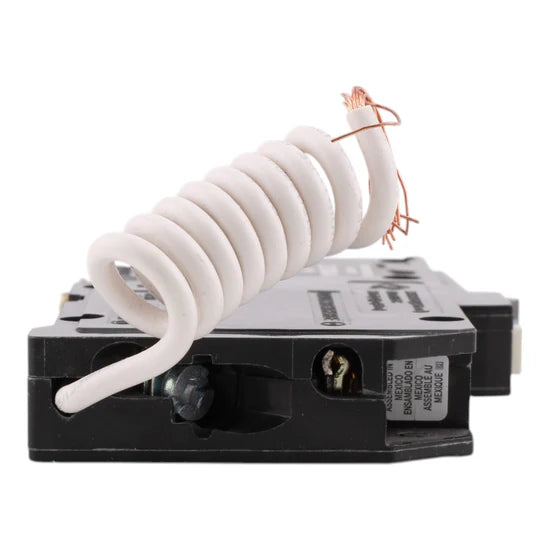

• Connection Type: Pressure Plate with Pigtail Neutral
• Wire Size Compatibility: 14-8 AWG Copper, 12-8 AWG Aluminum
• HACR Rated: Yes

Technical Specifications

• Ambient Temperature Rating: 104°F (40°C) Maximum
• Certifications: UL Listed, CSA Certified

Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: QOB120VHCAFI
• UPC: 785901677918
• Dimensions (H × W × D): 4.8 in × 0.7 in × 2.9 in
• Weight: 0.56 lbs
