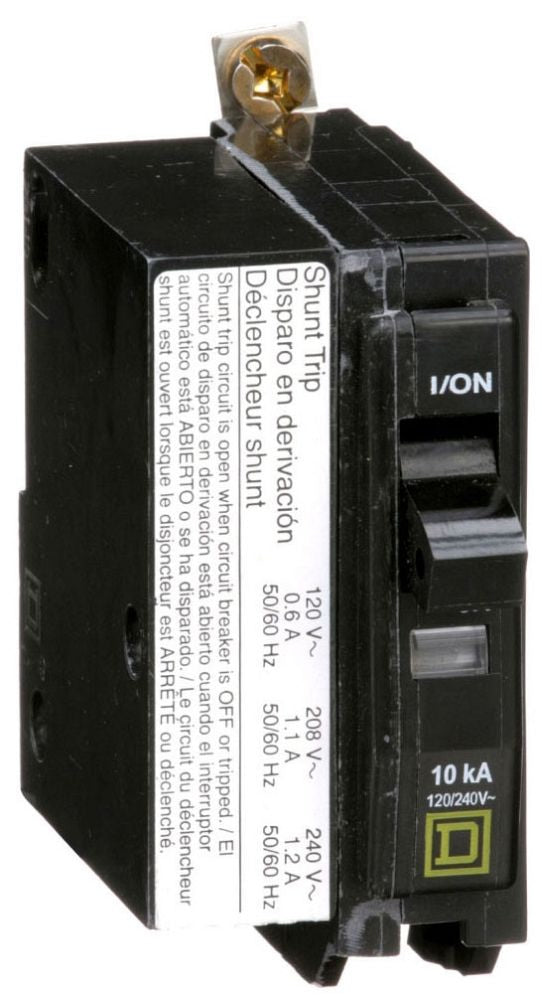

Square D QOB1251021 Miniature Circuit Breaker – 25A – 1 Pole – Thermal Magnetic – Bolt-On – 120/240VAC – Shunt Trip

The Square D QOB1251021 is a 1-pole miniature circuit breaker designed for branch circuit protection in NQ series panelboards. Featuring thermal magnetic trip protection, a factory-installed 120/208/240VAC shunt trip, and the Visi-Trip® indicator, it provides dependable protection for lighting, appliance, and general-purpose electrical circuits. Its bolt-on mounting design ensures secure installation in commercial and industrial panelboard applications.

Electrical Ratings

• Current Rating: 25 A
• Voltage Rating: 120/240 VAC, 50/60 Hz
• DC Voltage Rating: 48 VDC
• Poles: 1 Pole
• Phase: Single Phase
• Interrupting Rating:
  • 10 kA @ 120/240 VAC
  • 5 kA @ 48 VDC
• Application: Appliance and lighting circuits

Protection and Function

• Tripping Method: Thermal Magnetic
• Circuit Breaker Type: Miniature Branch Circuit Breaker
• Factory-Installed Shunt Trip: 120/208/240 VAC
• Visi-Trip® Indicator for quick fault identification
• Provides overload and short-circuit protection
• Suitable for branch circuit protection in panelboards

Configuration and Function

• Series: QO® / QOB
• Catalog Number: QOB1251021
• Model: QOB
• Frame Type: Q Frame
• Mounting Type: Bolt-On
• Used On: NQ Series Panelboards
• Category: 1-Pole Standard Trip Bolt-On Circuit Breaker
• Control Function: Remote tripping through integrated shunt trip

Mechanical and Physical Characteristics

• Dimensions (H × W × D): 3.00 in × 0.75 in × 2.91 in
• Overall Width with Housing: 1.50 in
• Terminal Type: Pressure Plate
• Wire Size:
  • 14–8 AWG Aluminum/Copper
  • (2) 14–10 AWG Copper
• Ambient Temperature Rating: 104°F (40°C)
• Compact space-saving design for panelboard installations

Standards and Certifications

• UL Listed
• CSA Certified
• RoHS Compliant
• Manufacturer: Schneider Electric / Square D
• UNSPSC: 39121603
