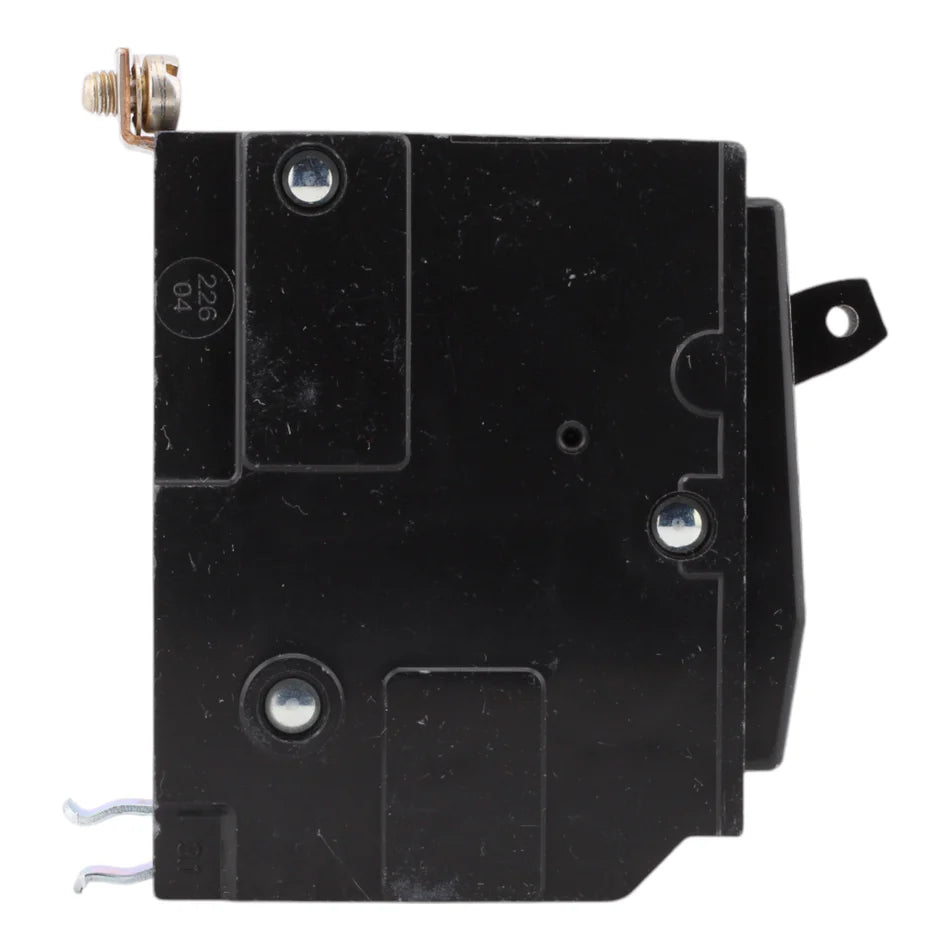

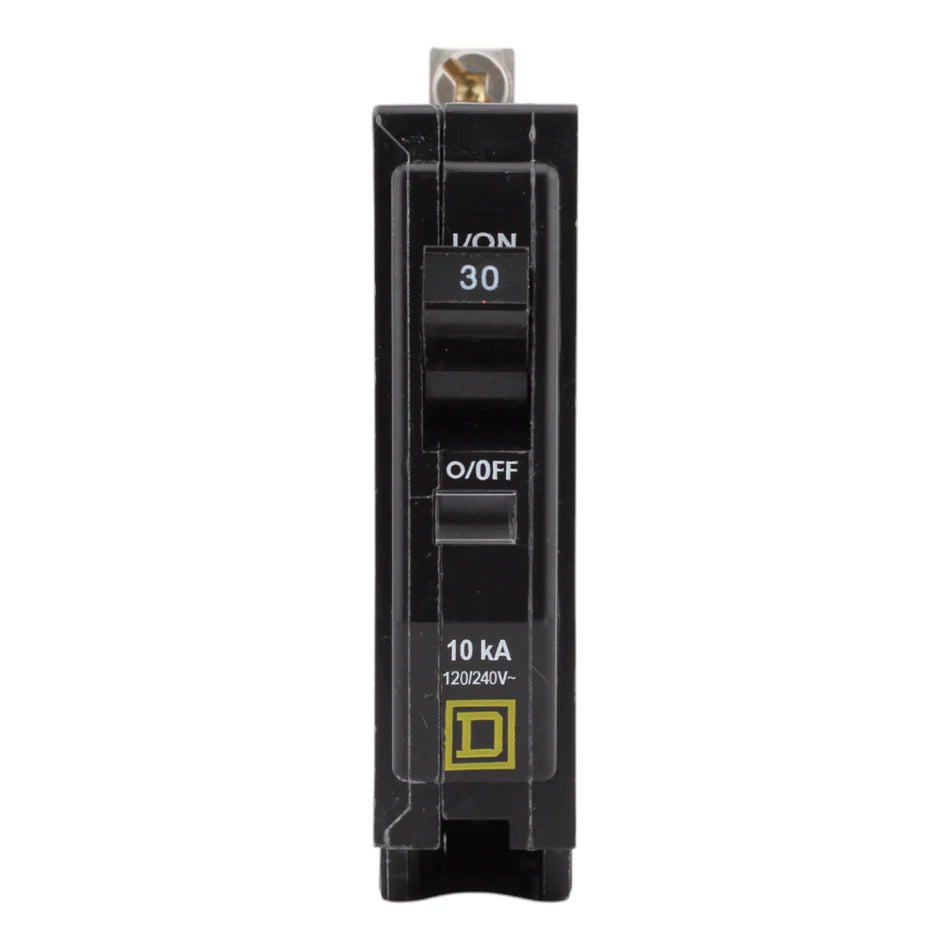

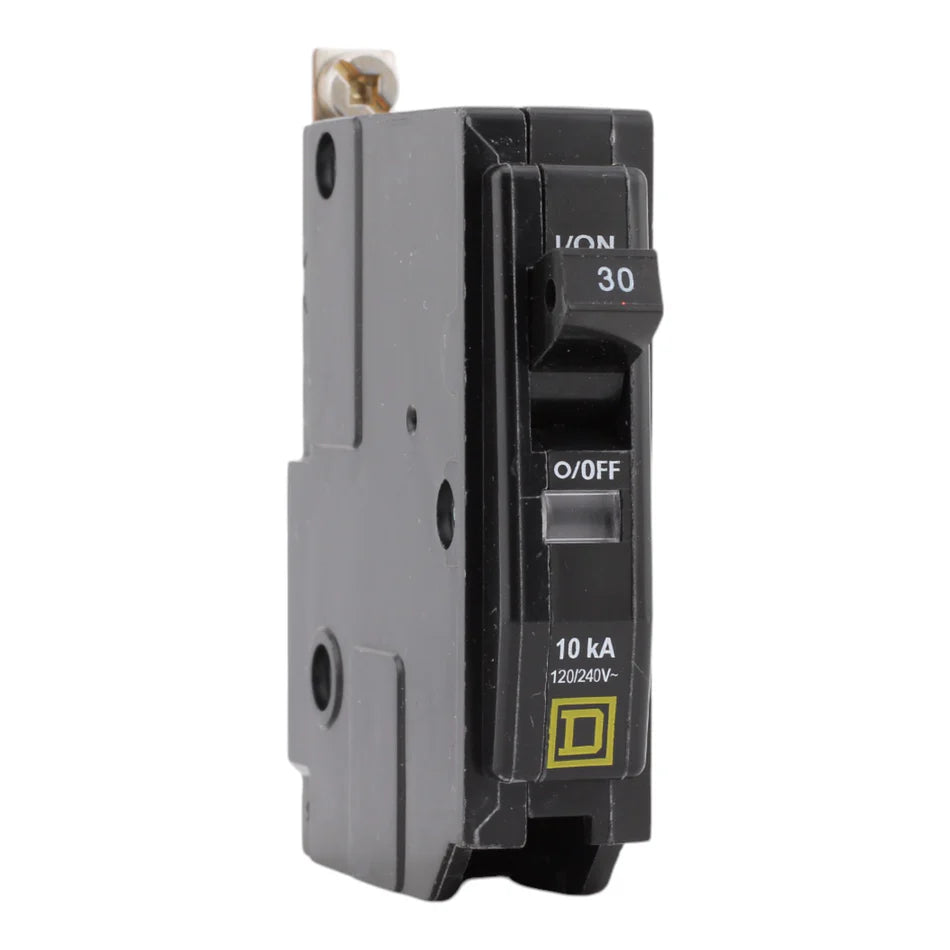

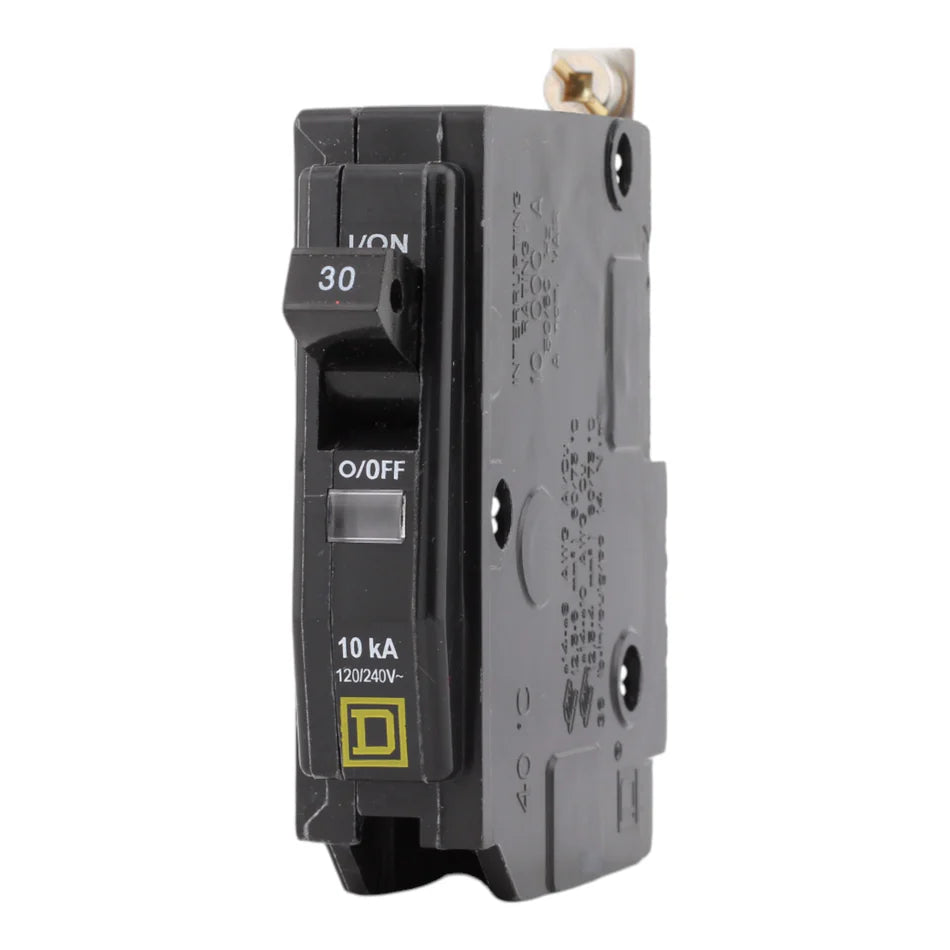

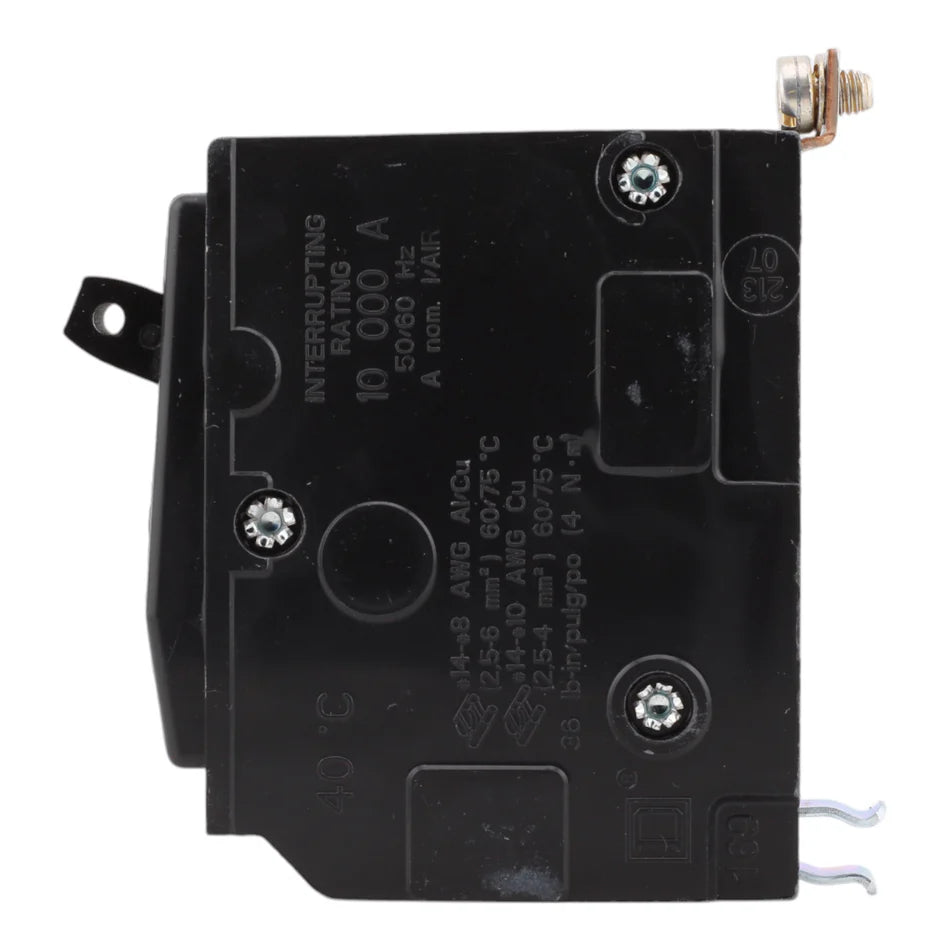

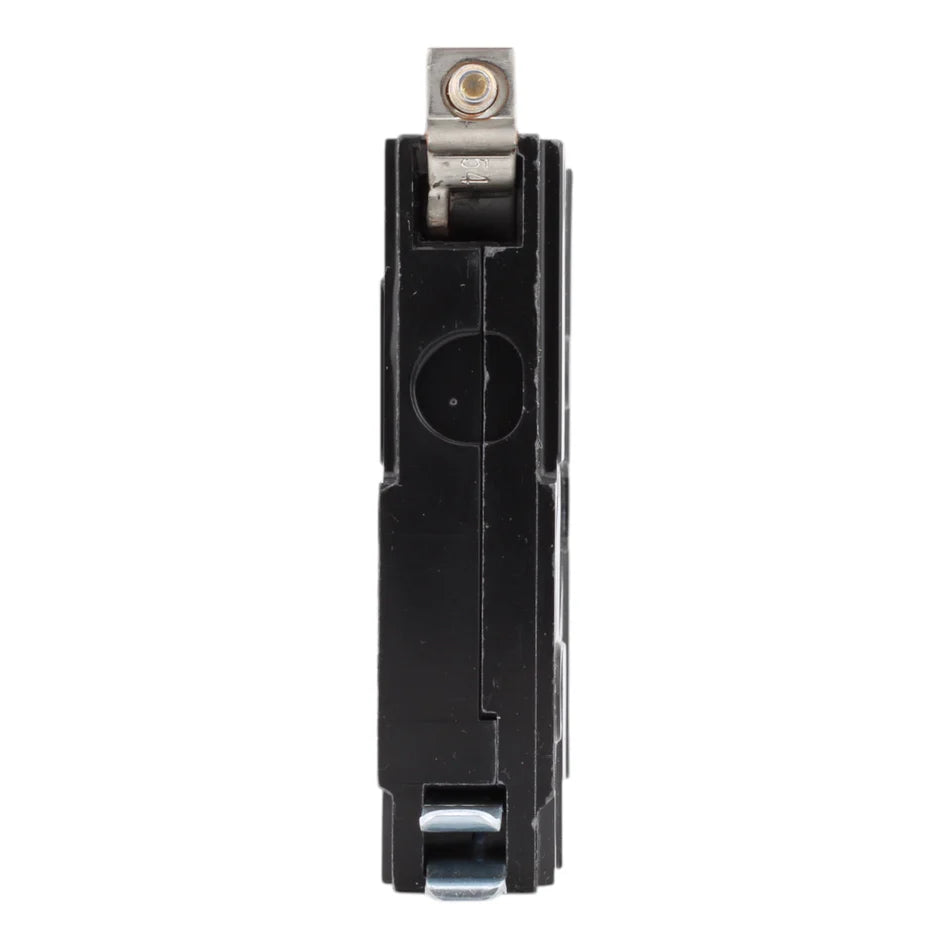

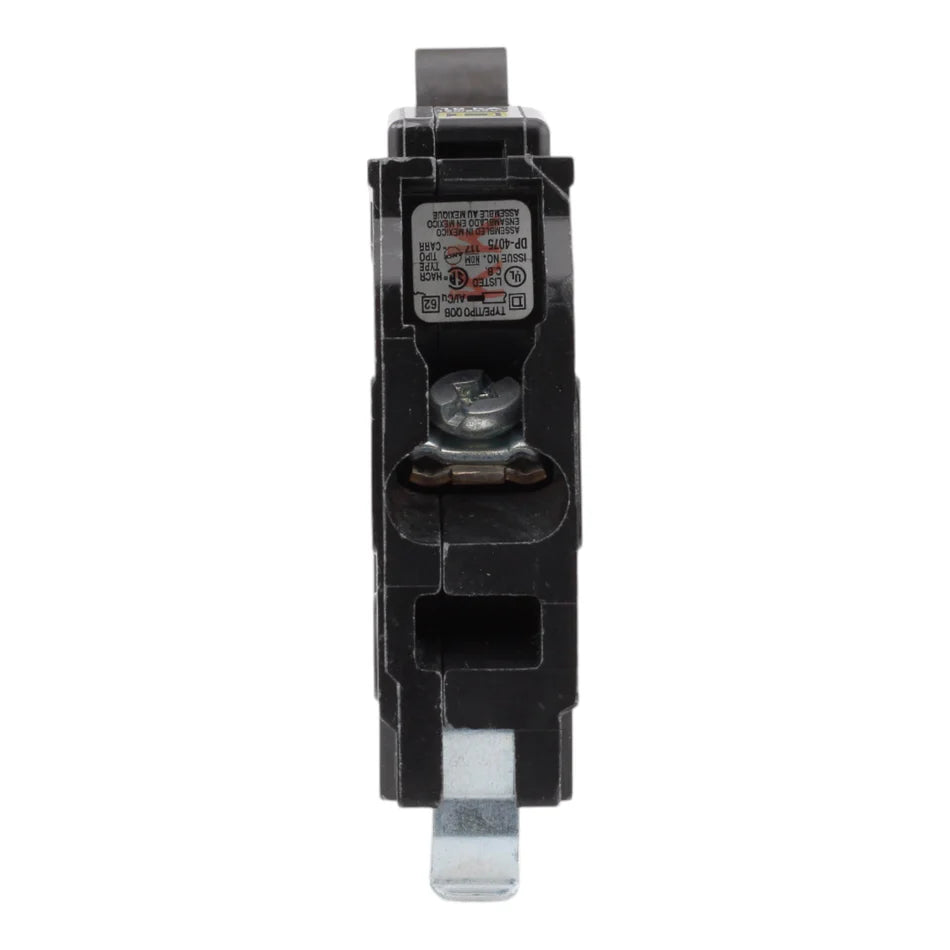

Square D QOB130 30 Amp Single-Pole Thermal Magnetic Circuit Breaker – Bolt-On – 120/240V

The QOB130 Circuit Breaker from Square D, manufactured by Schneider Electric, is a 30-amp single-pole breaker designed for dependable overcurrent protection. Featuring a bolt-on mounting design, it ensures a secure connection in compatible QOB panelboards and load centers, making it suitable for residential and light commercial electrical systems.

Voltage and Rating

• Current Rating: 30 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupt Rating: 10 kAIC

Key Specifications

• Breaker Type: Thermal Magnetic
• Number of Poles: 1-Pole
• Mounting Type: Bolt-On
• Connection Type: Bolt-On
• Compatibility: QOB panelboards and load centers

Technical Specifications

• Wire Size: AWG 14–8 (Copper or Aluminum)
• Tightening Torque: 35.4 lbf-in (4 N·m)
• Dimensions (H × W × D): 3.0 × 0.7 × 2.9 in
• Net Weight: 0.249 lb

Certifications

• UL Listed
• CSA Certified

Product Data

• • Brand: Square D
  • Manufacturer: Schneider Electric
  • Model Number: QOB130
  • UPC: 785901416760
