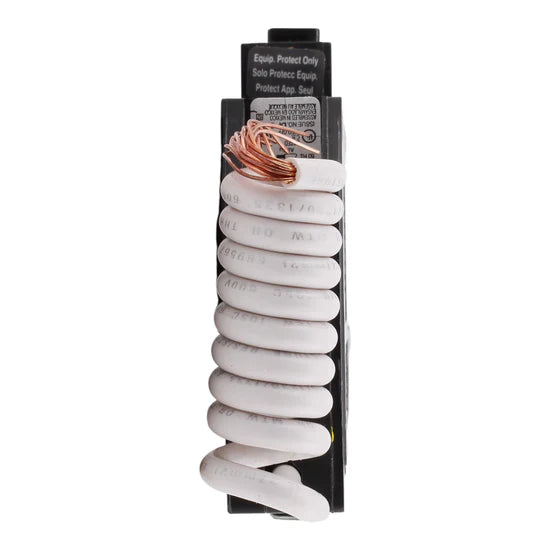

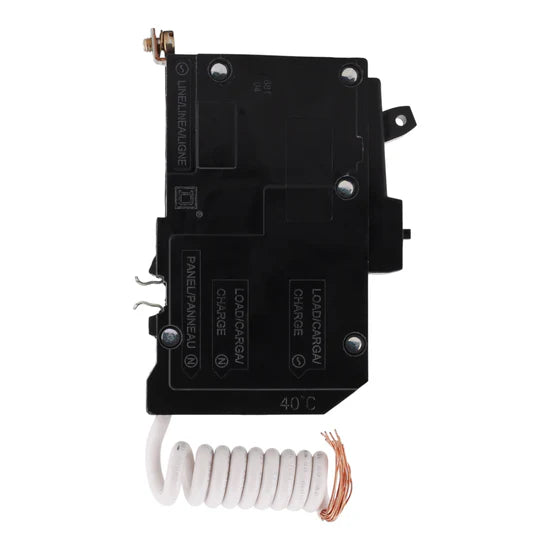

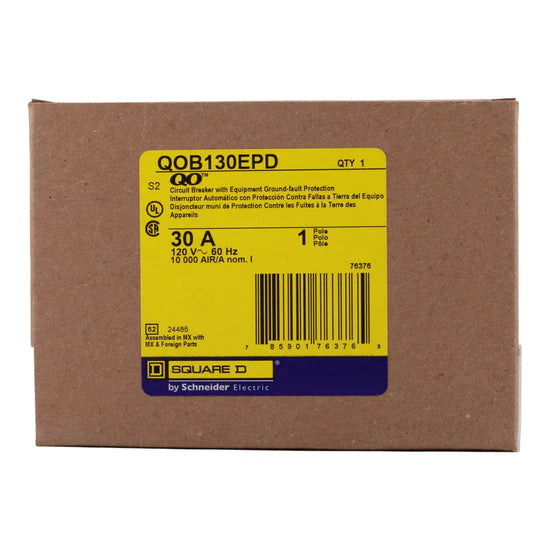

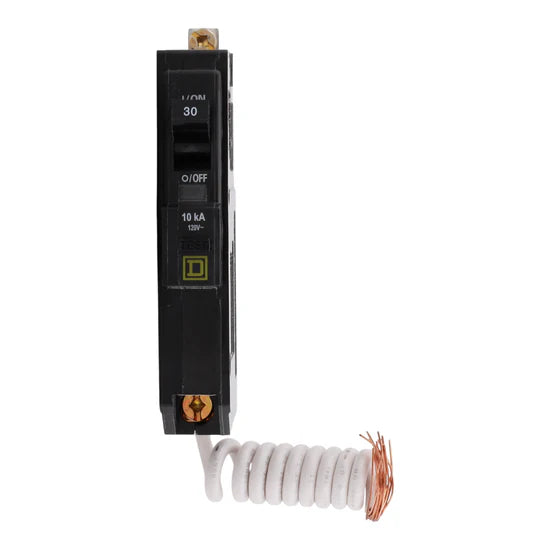

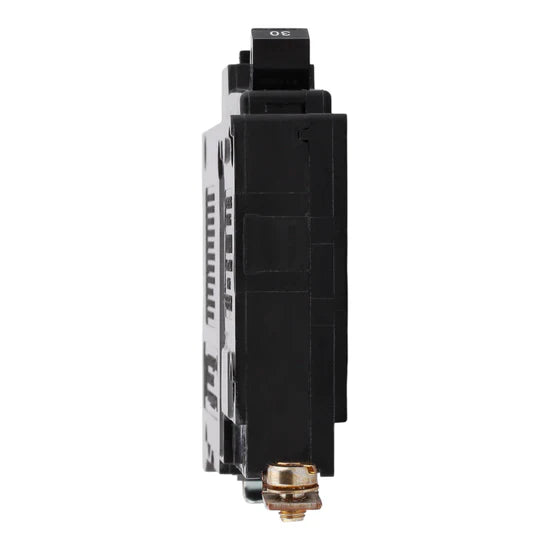

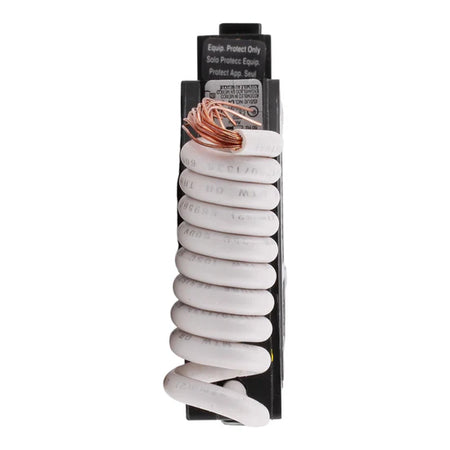

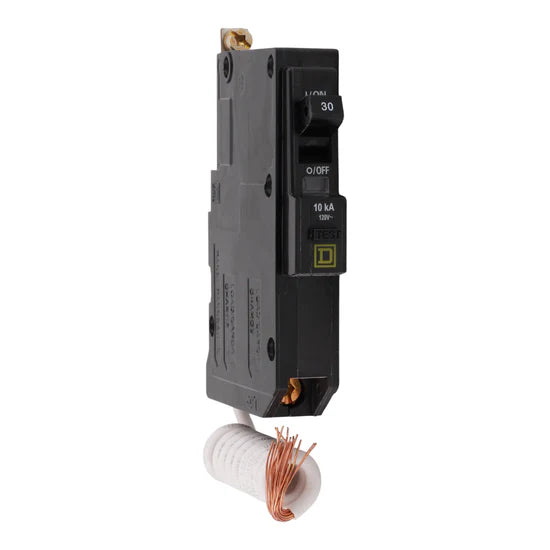

The Square D QOB130EPD is a 30 Amp, 1-pole GFCI (Ground-Fault Circuit Interrupter) breaker designed for 120V AC circuits in QO loadcenters. Featuring a bolt-on mounting with pressure plate terminals, it provides reliable overcurrent and ground-fault protection with a 10kA interrupt rating. The Class B 30mA trip sensitivity ensures enhanced protection against electrical shocks, making it ideal for residential and commercial applications.
Electrical Ratings:
- Amperage: 30 Amps
- Voltage: 120V AC
- Interrupt Rating: 10 kAIC
- Trip Sensitivity: 30 mA ground-fault protection
- Frequency: 50/60 Hz
Key Specifications:
- Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
- Poles: 1-Pole
- Product Range: QO
- Mounting Mode: Bolt-On
- Terminal Type: Pressure Plate
- Application: Residential and commercial branch circuit protection
Technical Specifications:
- Wire Size: (1) #14–8 AWG Cu, (1) #12–8 AWG Al
- Tightening Torque: 35.4 lb-in
- Dimensions: 4.1" H × 0.7" W × 2.9" D
- Weight: 0.540 lbs
- Certifications: UL Listed, CSA Certified
Product Data:
-
- Manufacturer: Schneider Electric
- Brand: Square D
- Model Number: QOB130EPD
- UPC: 785901763765
