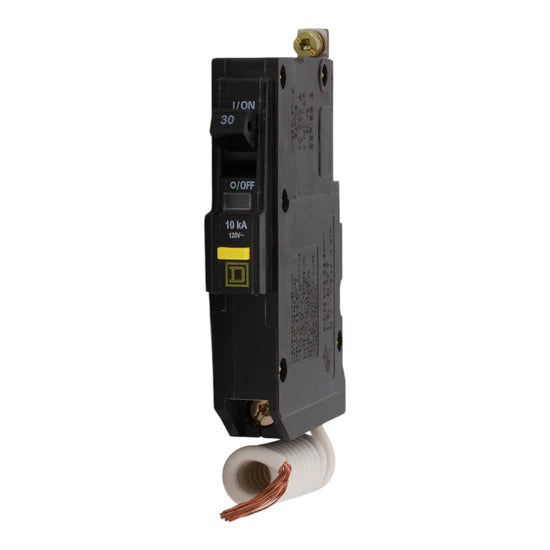

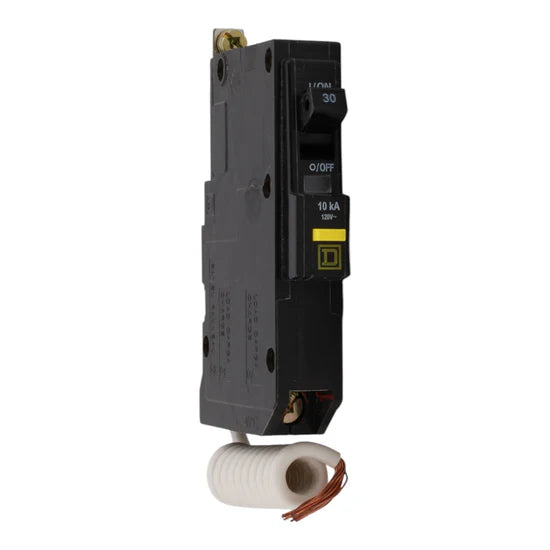

Square D QOB130GFI 30A 1-Pole GFCI – Pigtail Neutral – 120V

The Square D QOB130GFI is a 30 Amp, 1-Pole GFCI (Ground-Fault Circuit Interrupter) breaker designed for QO loadcenters. It provides reliable protection for 120V residential and commercial circuits, with 6 mA trip sensitivity to detect ground faults and prevent electric shock.

Electrical Specifications

• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Amperage: 30 Amps
• Poles: 1-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 10 kAIC
• Trip Sensitivity: 6 mA ground fault protection

Mechanical & Mounting Specifications

• Mounting Mode: Bolt-On

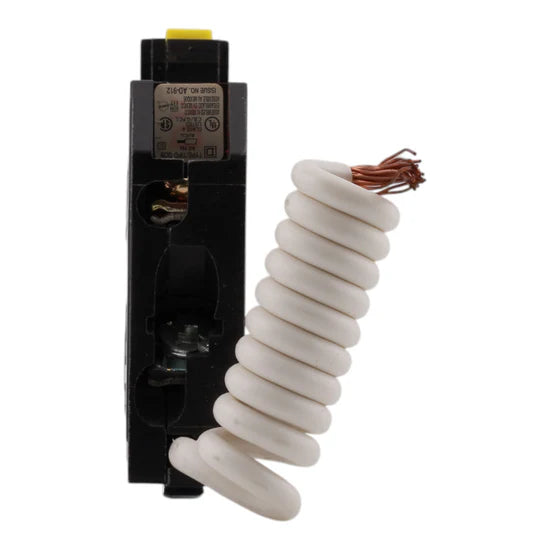

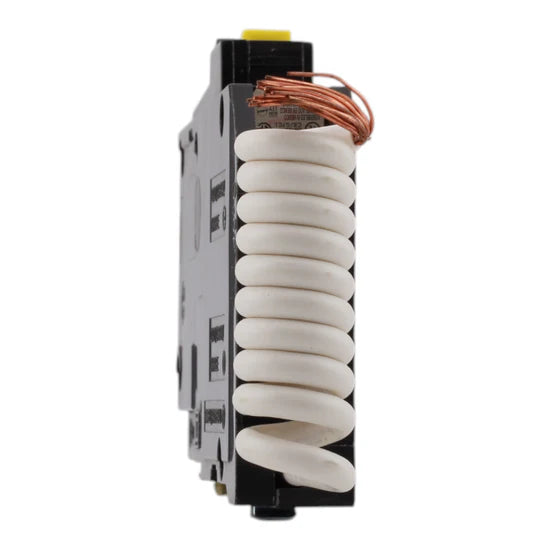

• Connection Terminals: Pigtail neutral
• Wire Size Range: (1) #14–8 AWG Cu, (1) #12–8 AWG Al
• Tightening Torque: 35.4 lb-in

Certifications

• UL Listed
• CSA Certified

Physical Dimensions

• Height: 4.1 in
• Width: 0.75 in
• Depth: 2.91 in
• Weight: 0.560 lbs

Key Features

• Reliable 30A, 1-Pole GFCI protection for 120V circuits
• Pigtail neutral for easy wiring in QO loadcenters
• 6 mA ground fault trip sensitivity for enhanced safety
• Bolt-on mounting for secure installation
• UL and CSA listed for safety and compliance
