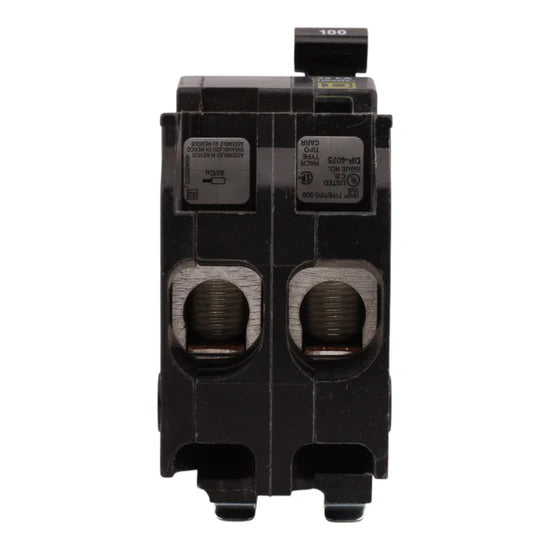

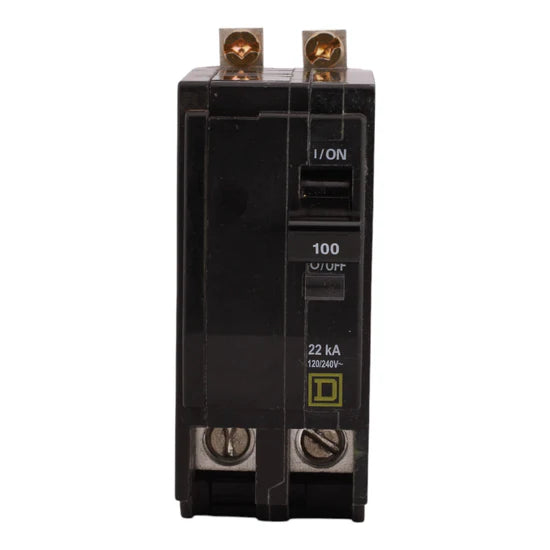

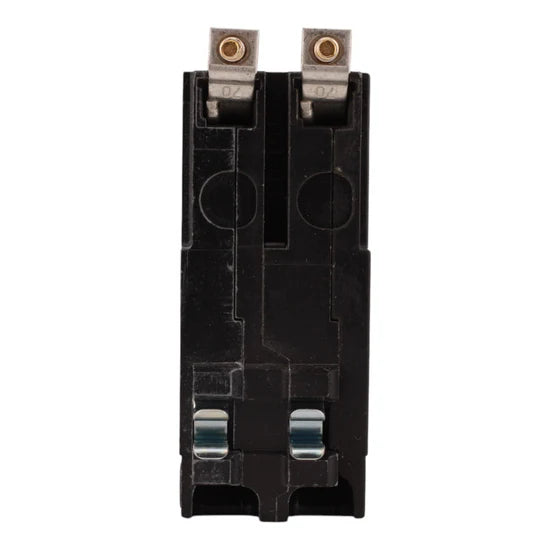

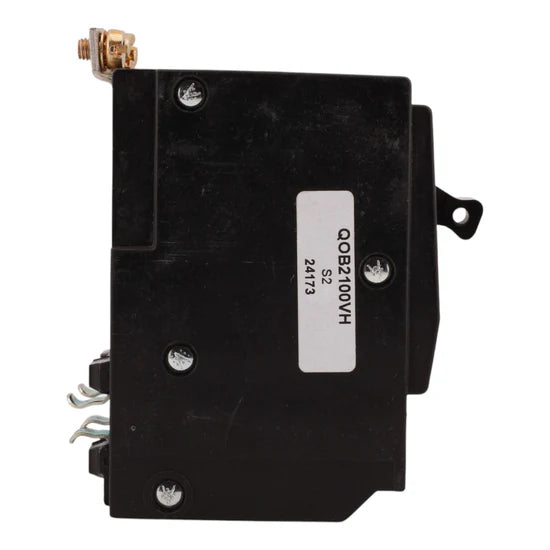

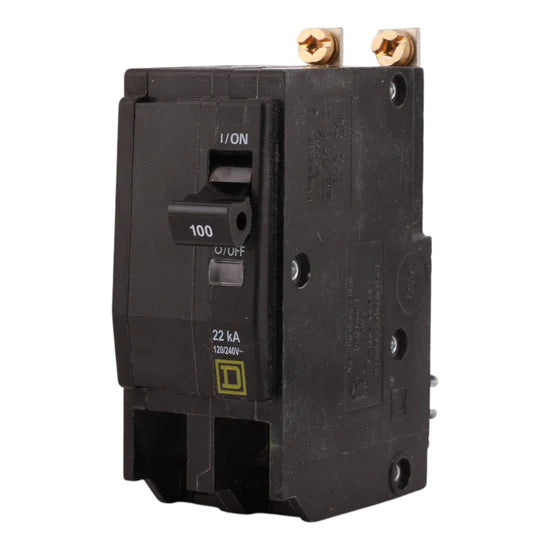

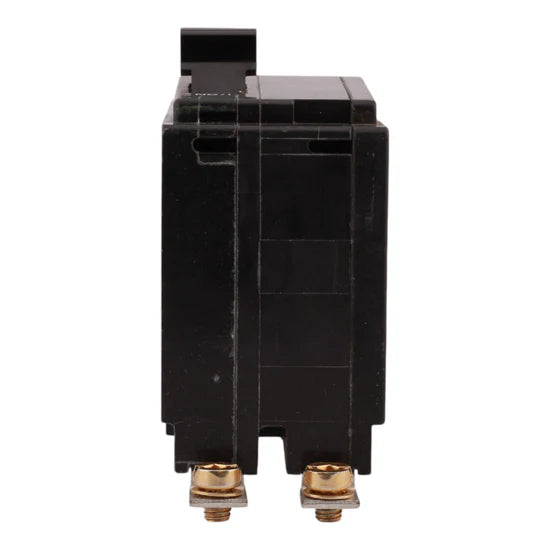

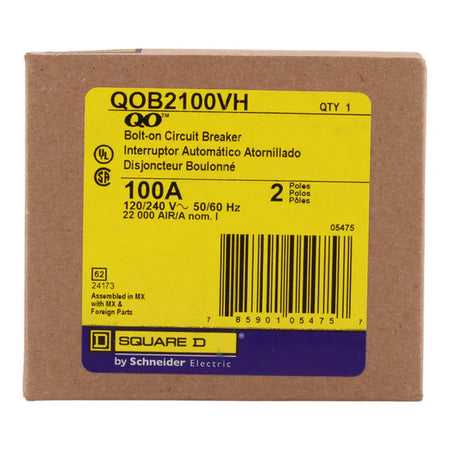

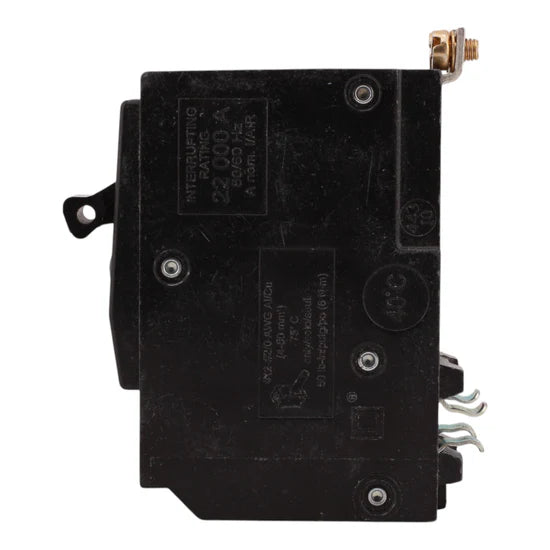

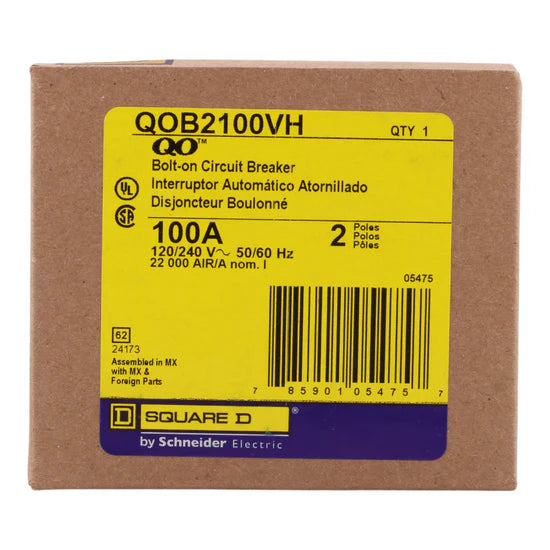

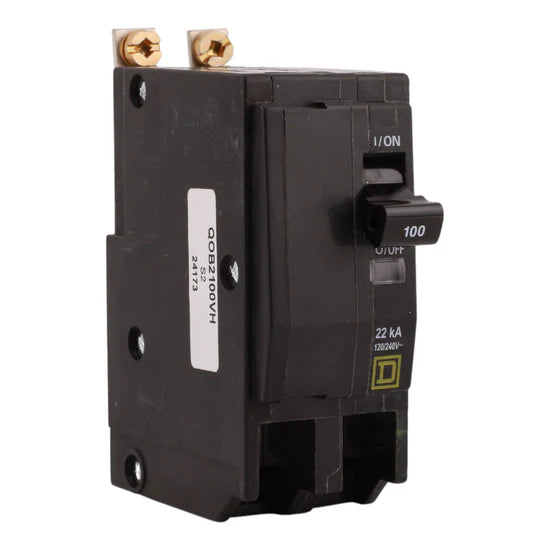

Square D QOB2100VH 100A 2-Pole Standard Breaker – Bolt-On – 120/240V

The Square D QOB2100VH is a 100 Amp, 2-pole thermal magnetic circuit breaker designed for reliable branch circuit protection in QO Series distribution equipment. Featuring a bolt-on mounting design with box lug connections, it provides secure installation in commercial and industrial panelboards. The breaker includes Square D’s VisiTrip indicator for fast trip identification and delivers a high 22 kA interrupt rating for enhanced protection.

Voltage and Rating:

• Current Rating: 100 Amps
• Voltage Rating: 120/240 Volts AC
• Interrupting Capacity: 22 kA

Key Specifications:

• Breaker Type: Thermal Magnetic (Standard)
• Number of Poles: 2-Pole
• Product Range: QO Series
• Mounting Mode: Bolt-On
• Terminal Type: Box Lugs
• Trip Indicator: VisiTrip
• HACR Rated: Yes

Wiring Information:

• Wire Size: AWG 4 to AWG 2/0 (Copper/Aluminum)
• Terminal Torque: 49.6 lbf.in (5.6 N·m)

Physical Specifications:

• • Height: 3.5 in

  • Width: 1.5 in

  • Depth: 2.9 in

  • Weight: 0.750 lbs

Product Data

Manufacturer: Schneider Electric
Brand: Square D
Model Number: QOB2100VH
UPC: 785901054757
Certifications: UL Listed, CSA Certified
Series: QO
