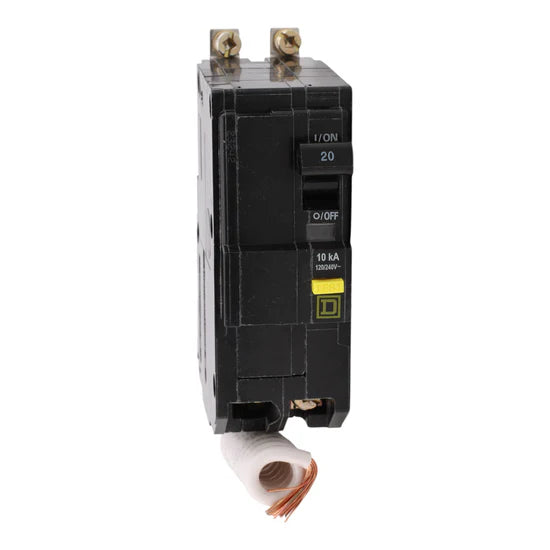

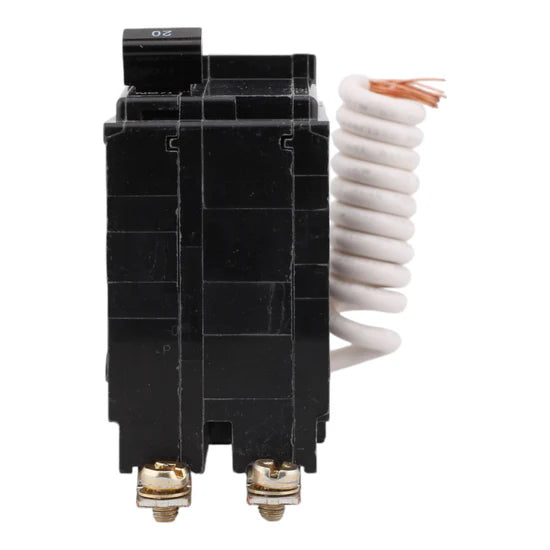

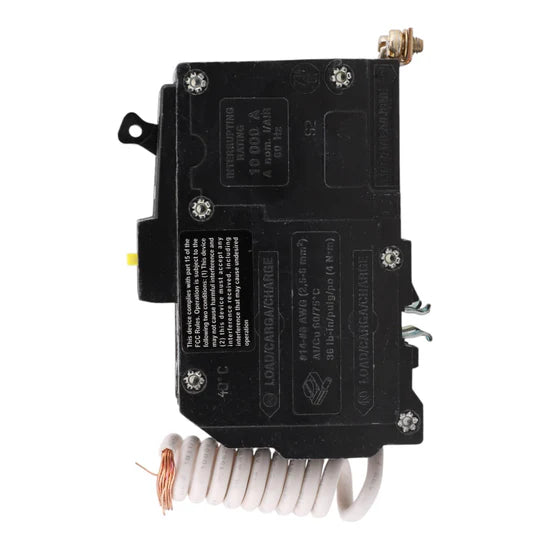

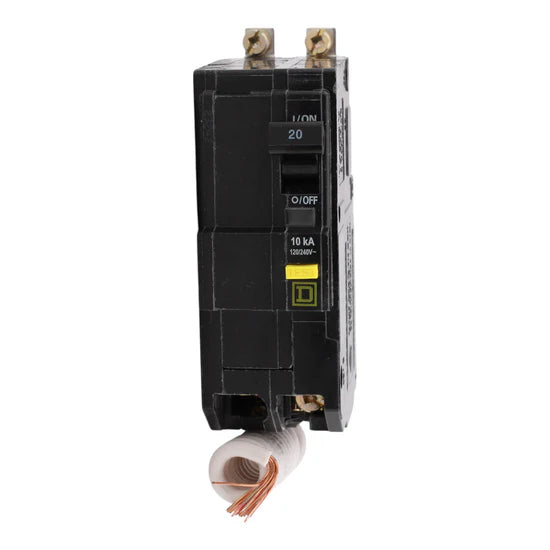

Square D QOB220GFI 20A 2-Pole GFCI Circuit Breaker – Bolt-On – 120/240V

The Square D QOB220GFI 20 Amp 2-Pole GFCI Circuit Breaker provides Class A (6mA) ground-fault protection for residential electrical systems. Designed for QO load centers, this breaker features a bolt-on mounting style with a pigtail neutral connection for simplified installation. With a 10kA SCCR interrupting rating and UL/CSA listing, it ensures reliable and safe circuit protection.

Voltage and Rating

• Voltage Rating: 120/240V AC
• Amperage Rating: 20A
• Interrupt Rating: 10kA

Key Specifications

• Breaker Type: Ground Fault Circuit Interrupter (GFCI), Class A 6mA
• Number of Poles: 2-Pole

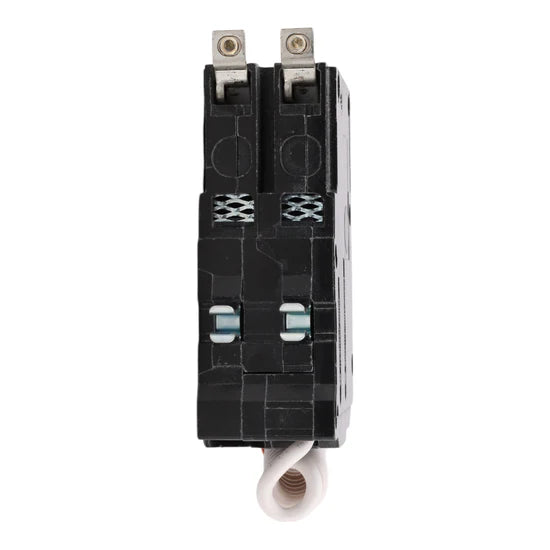

• Mounting Type: Bolt-On
• Number of Panel Spaces Required: 2

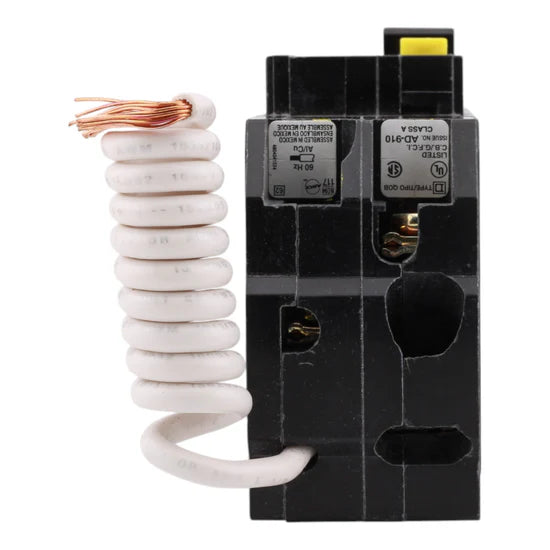

• Connection Type: Pressure Plate with Pigtail Neutral
• Wire Size Compatibility: 14-8 AWG Copper, 12-8 AWG Aluminum
• Tightening Torque: 35.4 lbf.in for small wire sizes, 40.7 lbf.in for 12-4 AWG

Technical Specifications

• Ambient Temperature Rating: 104°F (40°C) Maximum
• Certifications: UL Listed, CSA CertifiedProduct Data



• Product Data

• Manufacturer: Schneider Electric
• Brand: Square D
• Model Number: QOB220GFI
• UPC: 785901563020
• Dimensions (H × W × D): 4.1 in × 1.5 in × 2.9 in
• Weight: 0.959 lbs
