Square D

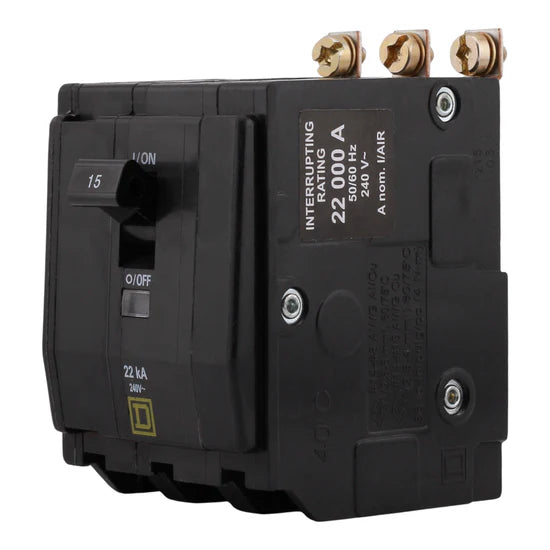

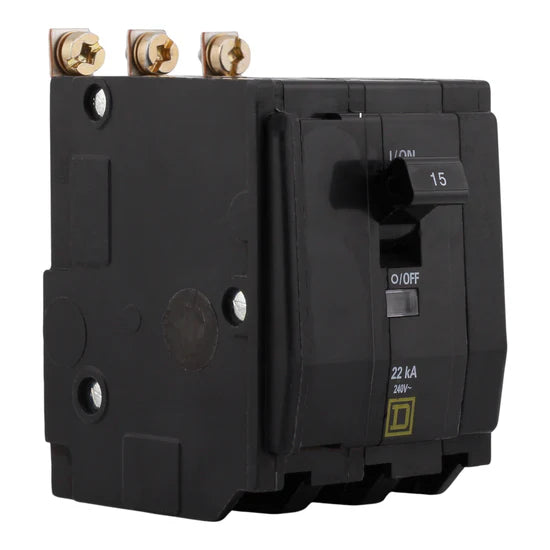

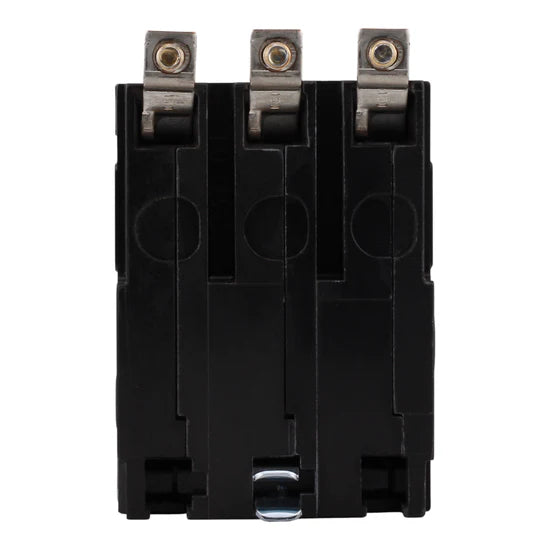

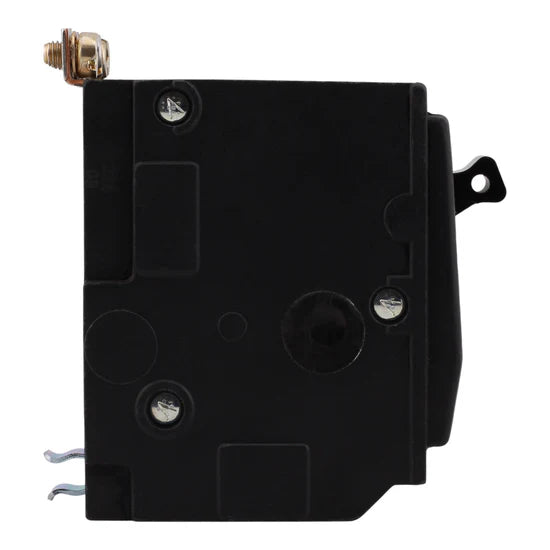

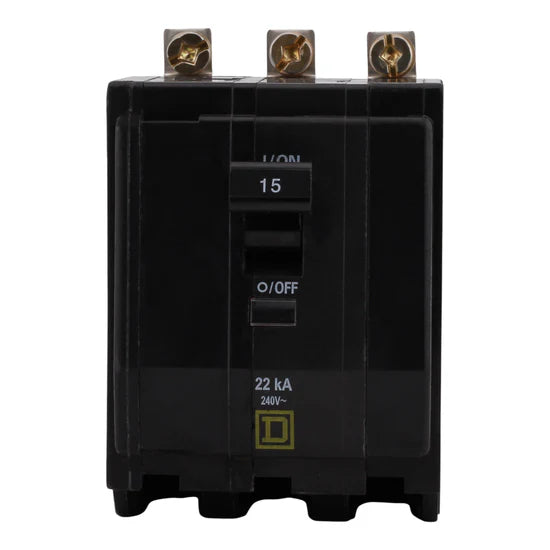

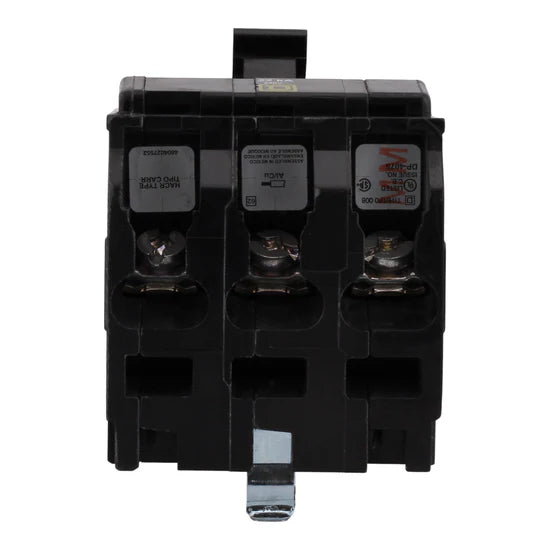

Square D QOB315VH 15A 3-Pole Standard Bolt-On Circuit Breaker – Bolt-On – 120/240V AC

In stock
SKU: QOB315VH GTIN/UPC: 785901371953
$72.50

Select product select item condition:

SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
10 day returns

Ask an expert

Email 866-972-6370

The Square D QOB315VH is a 15 Amp, 3-pole standard thermal-magnetic circuit breaker designed for 120/240V AC circuits in QO loadcenters. Featuring bolt-on mounting with pressure plate terminals, it delivers dependable overcurrent protection with a 22kA interrupt rating. The breaker includes a VisiTrip indicator and an overcenter toggle mechanism for quick trip identification, ensuring reliable performance in both residential and commercial applications.

Electrical Ratings:

  • Amperage: 15 Amps
  • Voltage: 120/240V AC
  • Interrupt Rating: 22 kAIC
  • Frequency: 50/60 Hz

Key Specifications:

  • Breaker Type: Standard Thermal-Magnetic
  • Poles: 3-Pole
  • Product Range: QO
  • Mounting Mode: Bolt-On
  • Terminal Type: Pressure Plate
  • Application: Residential and commercial overcurrent protection
  • Special Rating: HACR Rated

Technical Specifications:

  • Wire Size: (1) #14–8 AWG Cu/Al
  • Tightening Torque: 49.6 lb-in
  • Dimensions: 3.0" H × 2.2" W × 2.9" D
  • Weight: 0.800 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated

Product Data:

    • Manufacturer: Schneider Electric
    • Brand: Square D
    • Model Number: QOB315VH
    • UPC: 785901371953
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
