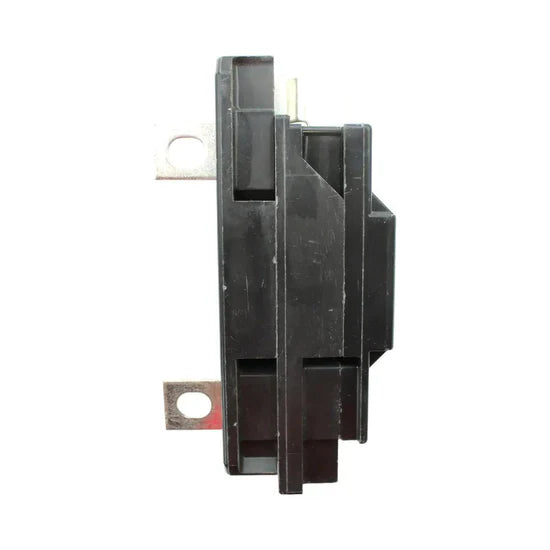

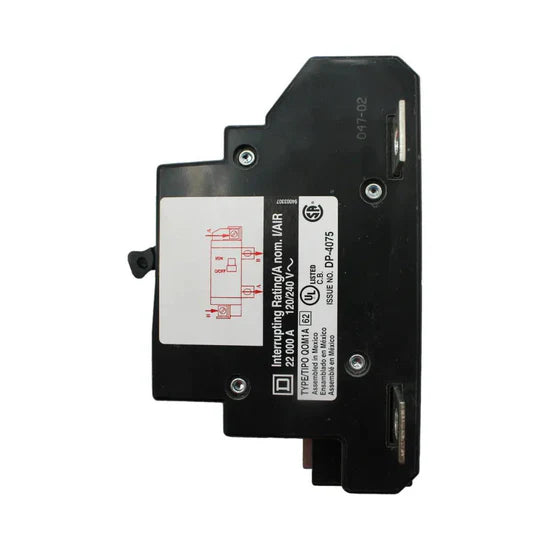

Square D QOM100VH 100A 2-Pole Main Breaker – Bolt-On – 120/240V AC
Couldn't load pickup availability
Ask an expert
The Square D QOM100VH main breaker, manufactured by Schneider Electric, is engineered to provide reliable overcurrent protection for 120/240V AC electrical systems. Its bolt-on mounting design ensures a secure and stable installation in compatible load centers.
Equipped with thermal-magnetic trip protection and a Visi-Trip visual indicator, this breaker allows quick identification of a tripped condition while maintaining consistent and dependable circuit performance.
Voltage and Ratings
- Voltage Rating: 120/240 Volts AC
- Current Rating: 100 Amps
- Poles: 2-Pole
- Interrupting Capacity: Up to 22 kA at 240V
Key Specifications
- Manufacturer: Schneider Electric – Square D
- Breaker Type: Main Circuit Breaker
- Series: QOM
- Mounting Type: Bolt-On
- Trip Mechanism: Thermal-Magnetic
- Trip Indicator: Visi-Trip indicator
- Reset Type: Manual reset
- Compatibility: Designed for QO and Homeline load centers
Technical Specifications
- Construction: Durable design with high-conductivity internal components
- Application: Main disconnect and overcurrent protection
- Enclosure Compatibility: Suitable for indoor and outdoor enclosures (commonly NEMA Type 3R rated)
- Operation: Manual reset after trip
Product Data
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: QOM100VH
- Product Type: Main Breaker
- Certifications: UL Listed
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
