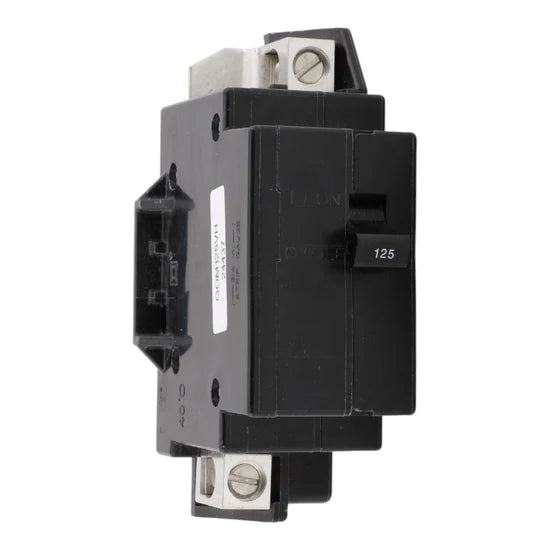

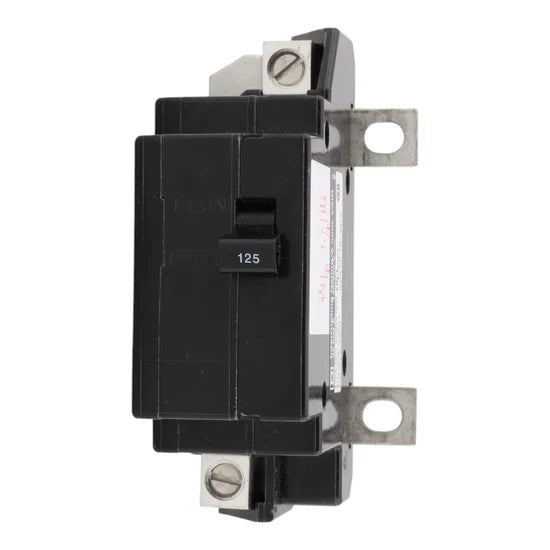

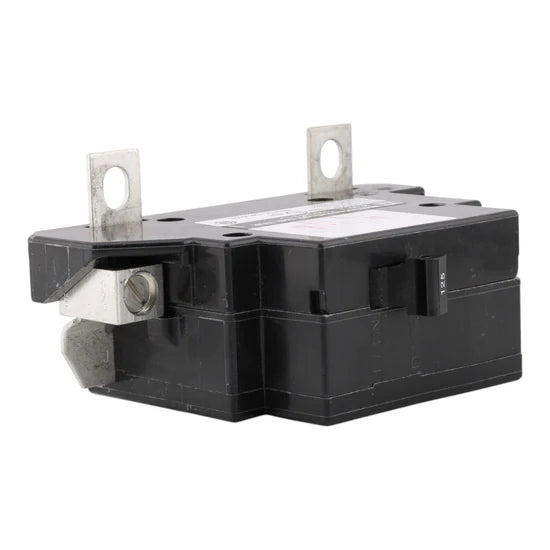

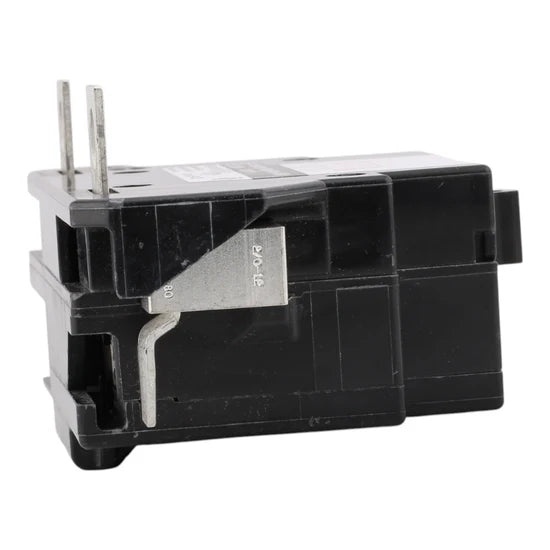

Square D QOM125VHCP 125A 2-Pole Main Circuit Breaker – Bolt-On – 120/240V

The Square D QOM125VHCP 125 Amp 2-Pole Main Circuit Breaker is designed to provide reliable main disconnect protection for QO load centers. Featuring a bolt-on mounting design and lug connections, it supports single-phase electrical systems and delivers a 22kA SCCR interrupting rating. UL and CSA listed, this main breaker ensures dependable performance for residential and light commercial applications.

Voltage and Rating

• Voltage Rating: 120/240V AC
• Amperage Rating: 125A
• Interrupt Rating: 22kA

Key Specifications

• Breaker Type: Main Breaker
• Number of Poles: 2-Pole
• Mounting Type: Bolt-On
• Frame Size: QOM1
• Connection Type: Lugs
• Load Center Type: Primary Main Breaker
• Number of Phases: Single Phase
• For Use With: QO Load Centers
• Wire Size Compatibility: 4-2/0 AWG Copper or Aluminum

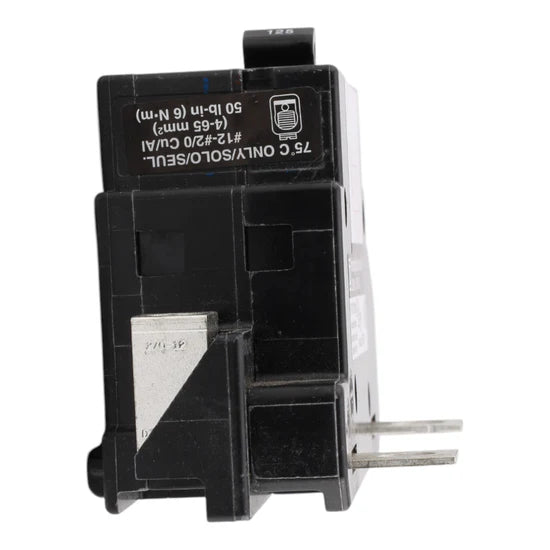

• Tightening Torque: 53.1 lbf.in for 12-2/0 AWG

Technical Specifications

• Ambient Temperature Rating: 104°F (40°C) Maximum
• Certifications: UL Listed, CSA Certified

Product Data

• • Manufacturer: Schneider Electric
  • Brand: Square D
  • Model Number: QOM125VHCP
  • UPC: 047569034619
  • Dimensions (H × W × D): 5.08 in × 5.0 in × 3.5 in
  • Weight: 1.301 lbs
