Square D

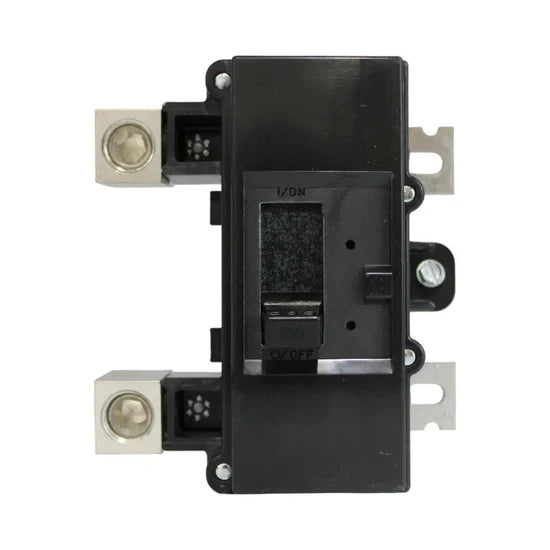

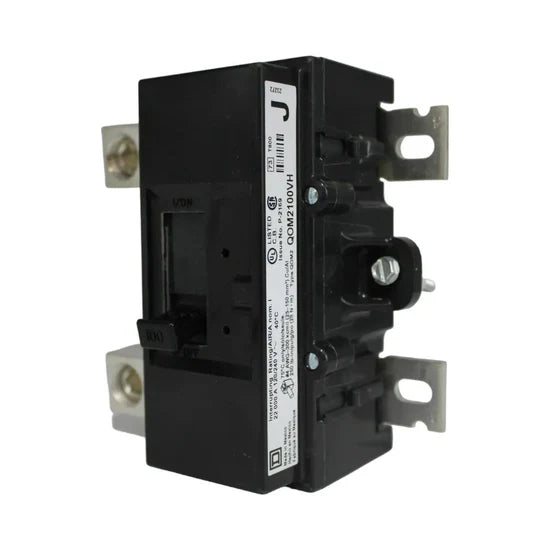

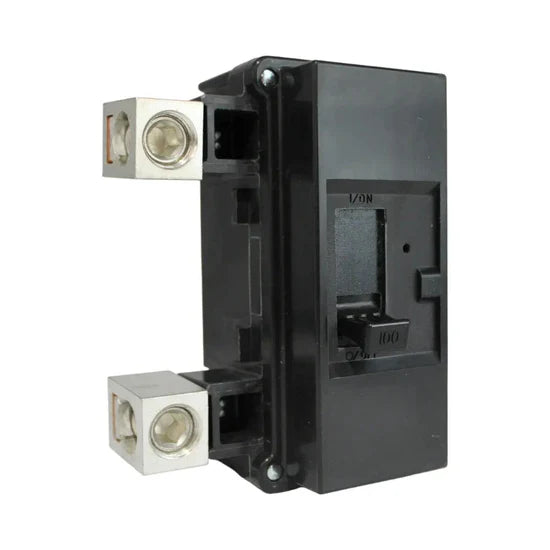

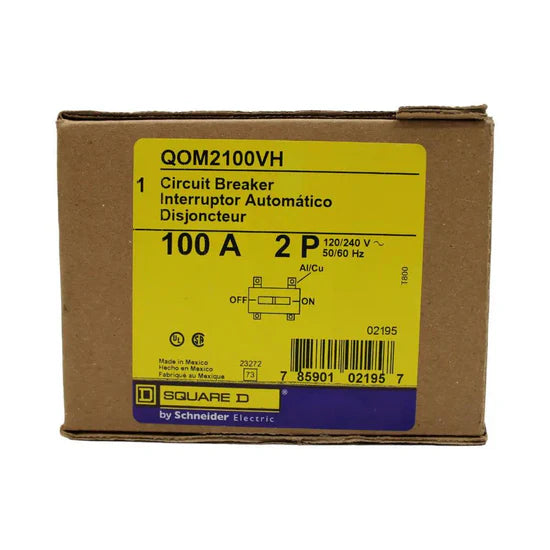

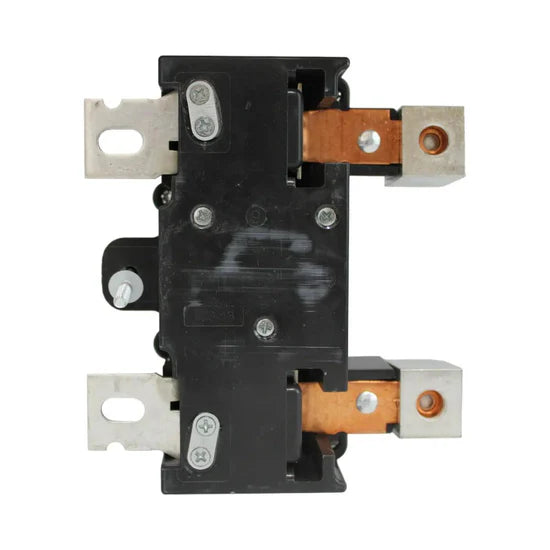

Square D QOM2100VH 100A 2-Pole Main Circuit Breaker – Bolt-On – 120/240V

In stock
SKU: QOM2100VH GTIN/UPC: 785901021957
$193.75
SELECT ITEM CONDITION
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
30 day returns

Ask an expert

Email 866-972-6370

The Square D QOM2100VH is a 2-pole main breaker from Schneider Electric under the Square D brand, designed for 120/240V AC systems. Built for QO and Homeline load centers, it provides reliable thermal-magnetic protection with a 22kA interrupt rating. The bolt-on mounting simplifies installation, and the Visi-Trip indicator offers instant visual confirmation of trips, making it ideal for residential and light commercial main service applications.

Voltage and Ratings

  • Voltage Rating: 120/240 Volts AC
  • Amperage Rating: 100 Amp
  • Poles: 2-Pole
  • Interrupt Rating: 22 kAIC
  • Trip Type: Standard Thermal-Magnetic

Key Specifications

  • Mounting Type: Bolt-On
  • Series/Range: QO
  • Compatibility: QO and Homeline load centers
  • Visi-Trip Indicator: Yes
  • Frame Size: QOM2

Technical Specifications

  • Wire Size Range: 4 AWG – 300 kcmil (Al/Cu)
  • Tightening Torque: 53.1 lbf.in
  • Dimensions (L×W×H): 5.08 × 3.60 × 5.60 in
  • Weight: 2.57 lbs
  • Certifications: UL Listed, CSA Certified

Product Data

    • Brand: Square D

    • Manufacturer: Schneider Electric

    • Model Number: QOM2100VH

    • UPC: 785901021957
  • Type Circuit Breakers
  • Vendor Square D
  • Brand Square D
