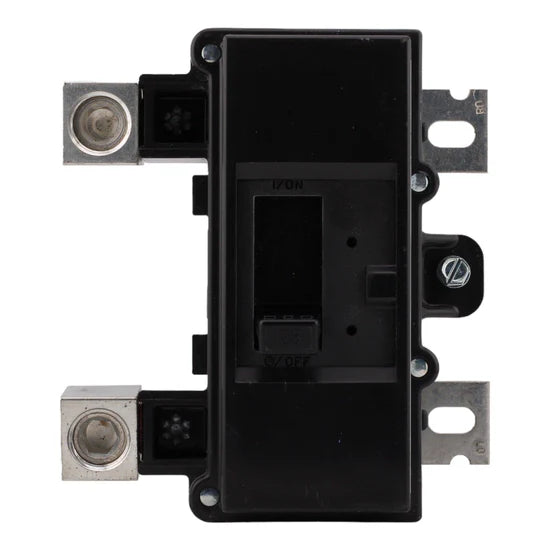

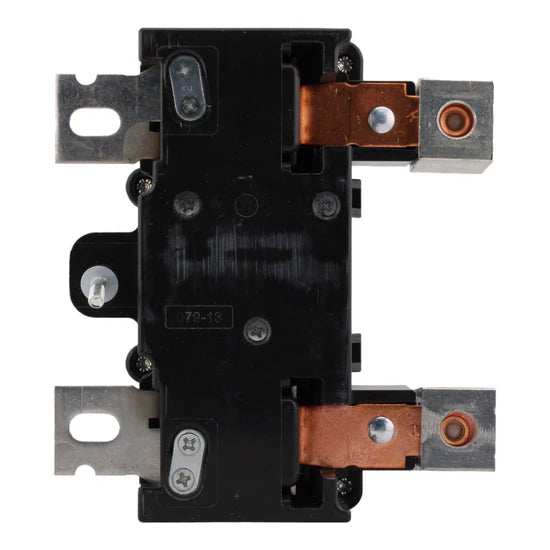

The Square D QOM2125VH is a 125-amp, double-pole main circuit breaker manufactured by Schneider Electric under the Square D product line. Designed for use in QO load centers, this bolt-on breaker provides reliable thermal-magnetic protection for residential and light commercial service entrance applications.
Voltage and Ratings
- Voltage Rating: 120/240 Volts AC
- Amperage Rating: 125 Amp
- Poles: 2-Pole
- Interrupt Rating: 22 kA
- Trip Type: Thermal-Magnetic
Key Specifications
- Breaker Type: Main Circuit Breaker
- Mounting Type: Bolt-On
- Frame Size: QOM2
- Compatibility: Square D QO load centers
Technical Specifications
- Wire Size: #4 to #2/0 AWG (Copper or Aluminum)
- Dimensions (H × W × D): 6.47 in × 3.75 in × 2.98 in
- Certifications: UL Listed, CSA Certified
Product Data
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: QOM2125VH
- UPC: 785901021971
- Condition: New
- Type Circuit Breakers
- Vendor Square D
- Brand Square D
