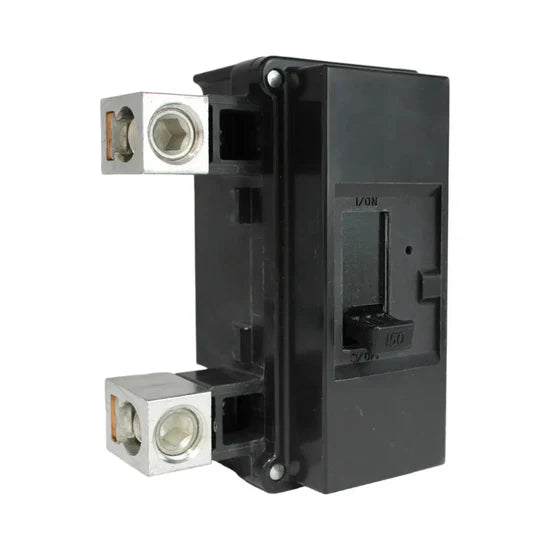

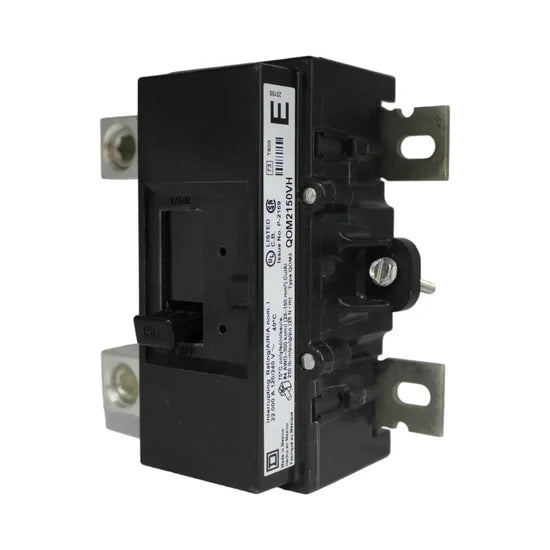

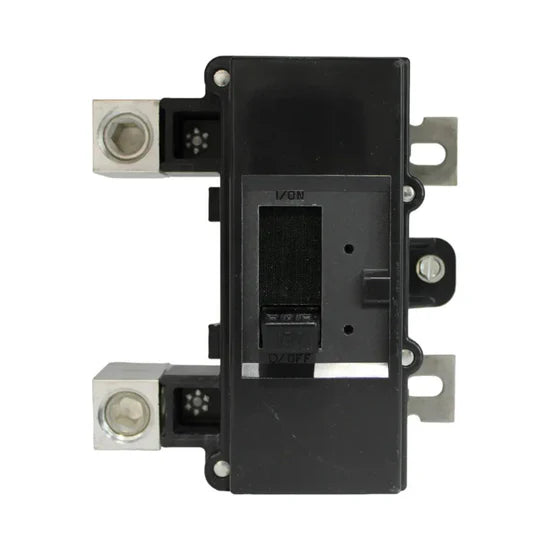

The Square D QOM2150VH is a 2-pole main breaker engineered by Schneider Electric under the Square D brand for 120/240V AC systems. Designed for QO and Homeline load centers, it delivers reliable thermal-magnetic protection with a 22kA interrupt rating. The bolt-on mounting ensures quick installation, while the Visi-Trip indicator allows instant visual identification of trips, making it ideal for residential and light commercial main service applications.
Voltage and Ratings
- Voltage Rating: 120/240 Volts AC
- Amperage Rating: 150 Amp
- Poles: 2-Pole
- Interrupt Rating: 22 kAIC
- Trip Type: Standard Thermal-Magnetic
Key Specifications
- Mounting Type: Bolt-On
- Series/Range: QO
- Compatibility: QO and Homeline load centers
- Visi-Trip Indicator: Yes
- Frame Size: QOM2
-
Technical Specifications
- Wire Size Range: 4 AWG – 300 kcmil (Al/Cu)
- Tightening Torque: 53.1 lbf.in
- Dimensions (L×W×H): 5.08 × 3.60 × 5.60 in
- Weight: 2.57 lbs
- Certifications: UL Listed, CSA Certified
Product Data
-
-
Brand: Square D
-
Manufacturer: Schneider Electric
-
Model Number: QOM2150VH
-
UPC: 785901004059
-
