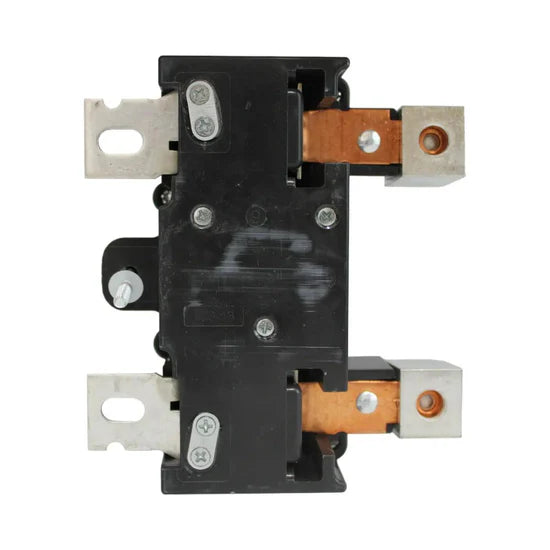

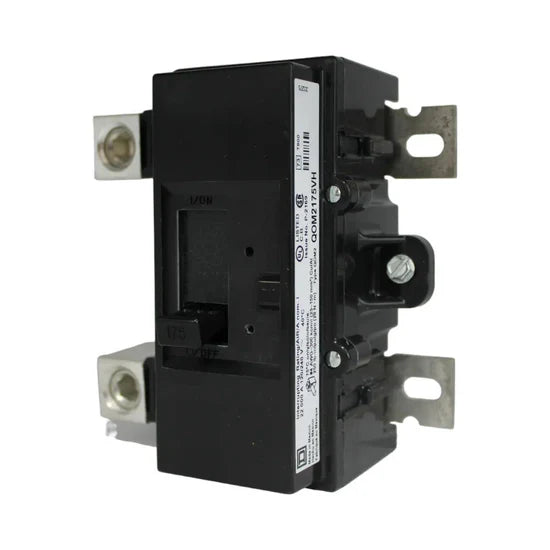

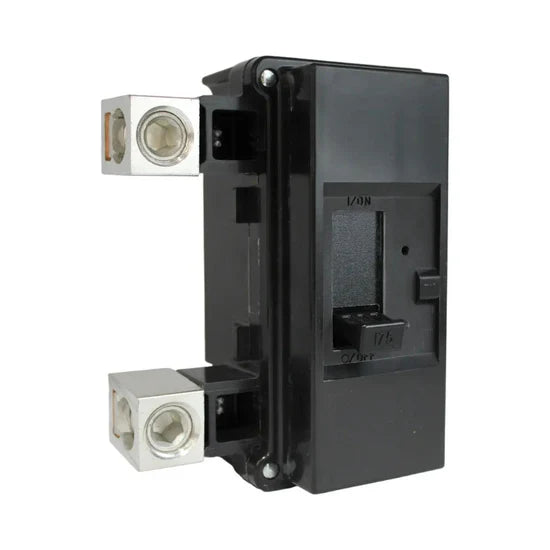

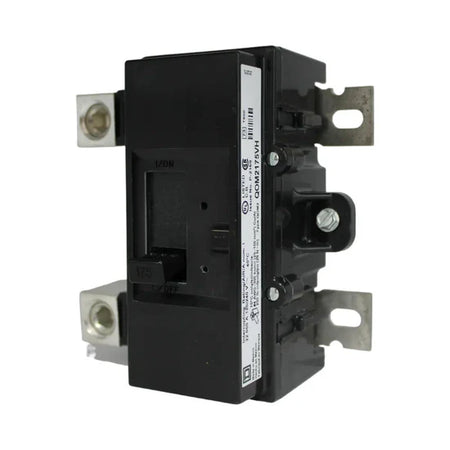

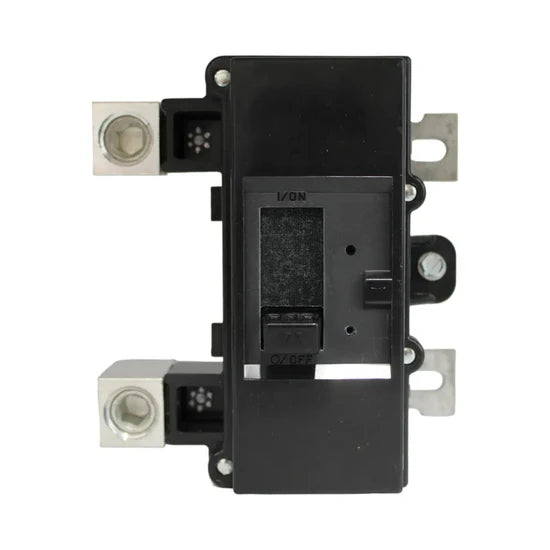

The Square D QOM2175VH is a 2-pole main circuit breaker engineered by Schneider Electric under the Square D brand for 120/240V AC systems. Designed for QO and Homeline load centers, it delivers reliable thermal-magnetic protection with a 22kA interrupt rating. Its bolt-on mounting ensures secure installation, while the Visi-Trip indicator provides a clear visual alert in case of a trip, making it ideal for residential and light commercial main service applications.
Voltage and Ratings
- Voltage Rating: 120/240 Volts AC
- Amperage Rating: 175 Amp
- Interrupt Rating: 22 kAIC
- Poles: 2-Pole
- Trip Type: Standard
Key Specifications
- Mounting Type: Bolt-On
- Series/Range: QO
- Compatibility: QO and Homeline load centers
- Frame Size: QOM2
- Visi-Trip Indicator: Yes
Technical Specifications
-
Wire Size Range: 4 AWG – 300 kcmil (Aluminum/Copper)
- Tightening Torque: 53.1 lbf.in
- Dimensions (L×W×H): 5.08 × 3.60 × 5.60 inches
- Weight: 2.5 lbs
- Certifications: UL Listed, CSA Certified
Product Data
-
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: QOM2175VH
- UPC: 785901848585
