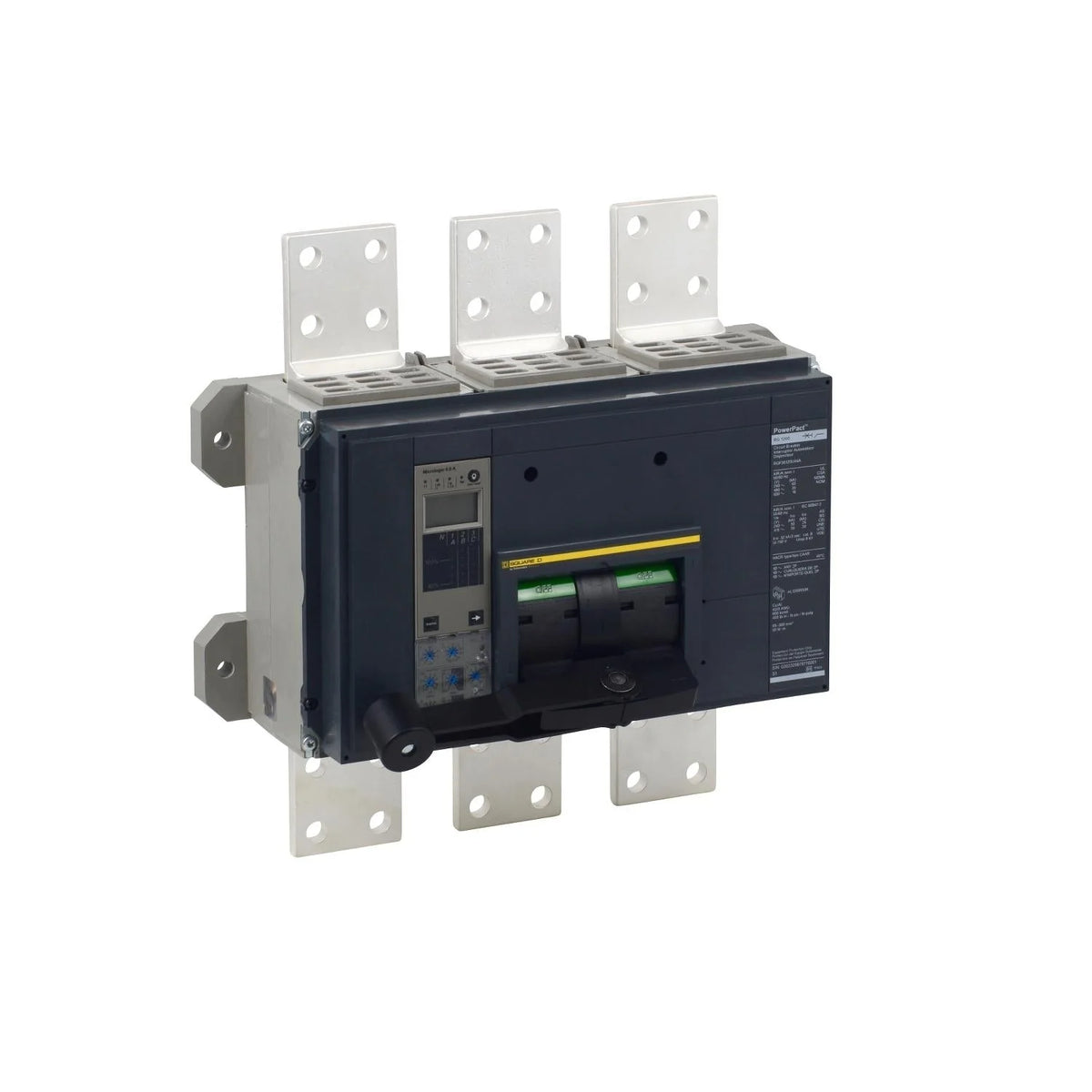

Square D RGF36300U41A 3000A 3-Pole 600V PowerPacT R-Frame Circuit Breaker

Product Description

• Brand: Square D / Schneider Electric
• Catalog Number: RGF36300U41A
• Product Family: PowerPacT
• Series: R-Frame
• Product Type: Molded Case Circuit Breaker
• Amperage: 3000A
• Poles: 3
• Maximum Voltage: 600VAC
• Trip Unit: Micrologic 3.0A
• Trip Unit Type: Electronic Ammeter Trip Unit
• Trip Functions: LI – Long-Time and Instantaneous
• Trip Unit: Interchangeable
• Continuous Current Rating: 80%
• Mounting: Unit Mount
• Connection Type: Busbar
• Designed for commercial and industrial electrical distribution applications

Technical Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: RGF36300U41A
• Frame: PowerPacT R-Frame
• Rated Current: 3000A
• Number of Poles: 3
• Maximum Voltage Rating: 600VAC
• Interrupting Rating @ 240VAC: 65kA
• Interrupting Rating @ 480VAC: 35kA
• Interrupting Rating @ 600VAC: 18kA
• Trip Technology: Electronic
• Trip Unit Model: Micrologic 3.0A
• Protection Functions: LI
• Long-Time Protection: Yes
• Instantaneous Protection: Yes
• Ammeter Function: Yes
• Continuous Rating: 80%
• Terminal Connection: Busbar
• Mounting Style: Unit Mount

Product Data

• MPN: RGF36300U41A
• Manufacturer: Schneider Electric
• Brand: Square D
• Series: PowerPacT R
• Frame Size: R-Frame
• Breaker Type: Molded Case Circuit Breaker (MCCB)
• Application: Commercial / Industrial Power Distribution
• Condition: New
