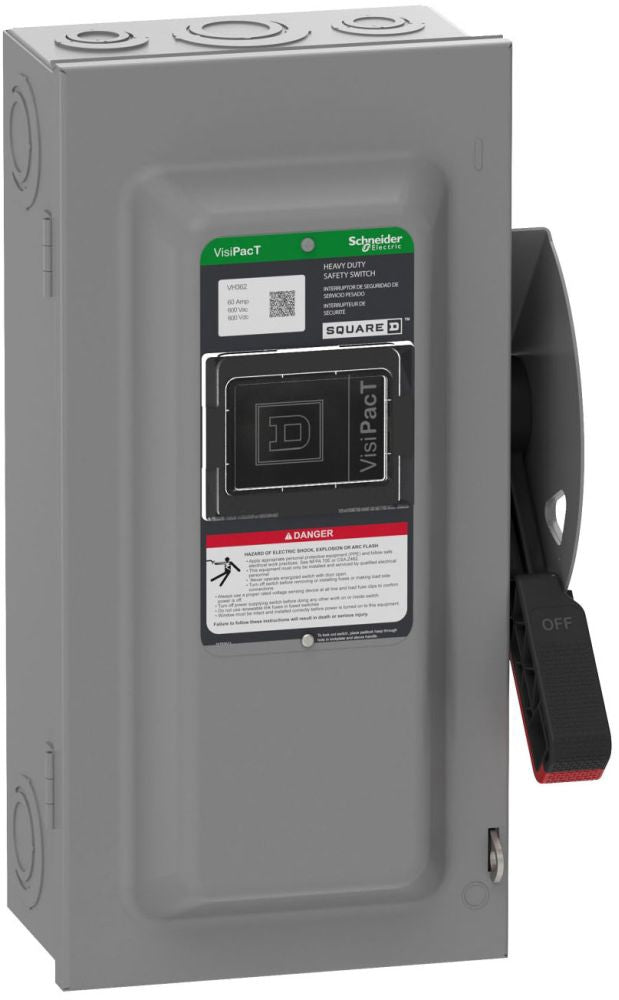

The Square D VH361NRB Safety Switch is a heavy-duty fusible disconnect switch designed for reliable circuit isolation and overcurrent protection in commercial, industrial, and service entrance applications. Manufactured by Schneider Electric under the Square D brand, this 30 Amp, 3-Pole safety switch provides dependable performance in both indoor and outdoor environments. With a rugged NEMA 3R enclosure and dual cover interlock, it is well-suited for power distribution, motor control, and equipment maintenance applications requiring safe and reliable electrical isolation.
Voltage and Rating
- Current Rating: 30 Amps
- Voltage Rating: 600 Volts AC / DC
- Phase: 3-Phase
Key Specifications
- Brand: Square D
- Manufacturer: Schneider Electric
- Model Number: VH361NRB
- Series: F Series
- Product Type: Safety Switch
- Disconnect Type: Fusible
- Number of Poles: 3-Pole
- Contact Configuration: 3PST
- Action: Single Throw
- Duty Rating: Heavy Duty
- Mounting Type: Surface Mount
- Configuration: Single
- Number of Wires: 4
- Terminal Connection: Lugs
- Enclosure Rating: NEMA 3R
- Enclosure Material: Galvannealed Steel
- Application: Service Entrance, Heavy-Duty Indoor and Outdoor Use
Technical Specifications
- Wire Gauge Range:
- AWG 12 to AWG 6 Copper or Aluminum
- AWG 14 to AWG 6 Copper or Aluminum
- Connection Type: Lug Terminals
- Dual Cover Interlock for Enhanced Operator Safety
- Suitable for Indoor and Outdoor Installations
- Designed for Reliable Circuit Isolation and Protection
Certifications and Standards
- UL Approved
- RoHS Compliant
- EU Standards Compliant
Features and Benefits
- Fusible design provides both disconnect functionality and overcurrent protection.
- Heavy-duty construction ensures reliable performance in demanding environments.
- NEMA 3R enclosure allows safe outdoor and indoor use.
- Dual cover interlock improves safety during maintenance operations.
- 3-pole configuration supports three-phase electrical systems.
- Surface-mount design allows convenient installation and accessibility.
- Suitable for service entrance and industrial power distribution applications.
- Manufactured by Schneider Electric under the trusted Square D brand.
Applications
- Commercial Buildings
- Industrial Facilities
- Manufacturing Plants
- Service Entrance Installations
- Power Distribution Systems
- Motor Control Applications
- Equipment Isolation and Maintenance Disconnects
- Indoor and Outdoor Electrical Installations
Product Summary
- Brand: Square D
- Model: VH361NRB
- Current Rating: 30A
- Voltage Rating: 600V AC/DC
- Poles: 3
- Fusibility: Fusible
- Mounting Type: Surface Mount
- Enclosure: NEMA 3R Galvannealed Steel
- Duty Rating: Heavy Duty
- Series: F Series
- Contact Configuration: 3PST
- Type Switches
- Vendor Square D
- Brand Square D
