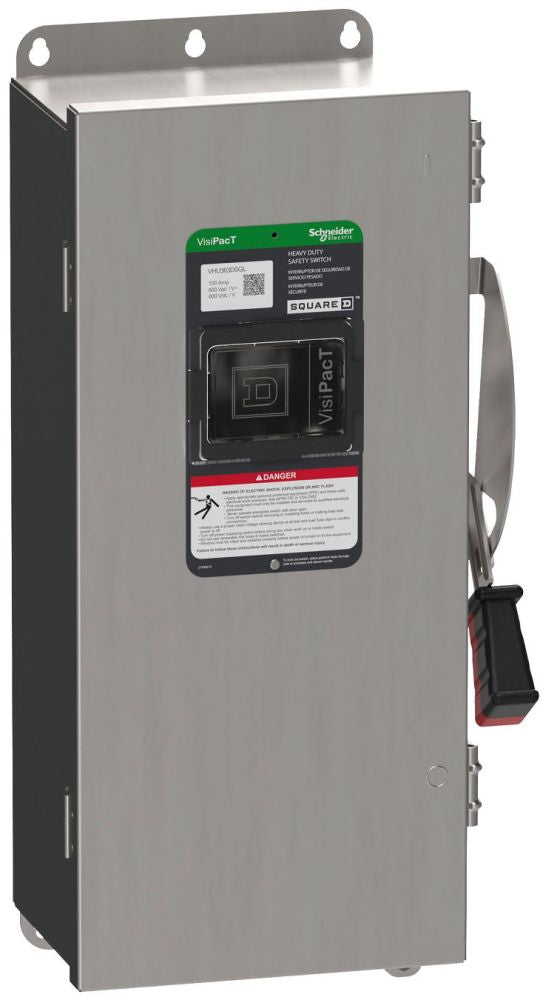

Square D VH362DSGL 600A 3-Pole Fusible Safety Switch – Surface Mount – 600V AC/DC

The Square D VH362DSGL Safety Switch is a heavy-duty fusible disconnect switch designed for demanding commercial, industrial, and service entrance applications. Manufactured by Schneider Electric under the Square D brand, this 3-Pole safety switch provides reliable circuit isolation and overcurrent protection when used with appropriate fuses. Featuring a Type 4X enclosure constructed from 304 stainless steel, it offers exceptional resistance to corrosion, moisture, and harsh environmental conditions, making it suitable for both indoor and outdoor installations.

Voltage and Rating

• Current Rating: 600 Amps
• Voltage Rating: 600 Volts AC/DC
• Phase: 3-Phase

Key Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Model Number: VH362DSGL
• Series: VH Series
• Product Type: Safety Switch
• Disconnect Type: Fusible
• Number of Poles: 3-Pole
• Contact Configuration: 3PST
• Action: Single Throw
• Duty Rating: Heavy Duty
• Mounting Type: Surface Mount
• Number of Wires: 3
• Terminal Connection: Lugs
• Enclosure Rating: NEMA 4X
• Enclosure Material: 304 Stainless Steel
• Application: Service Entrance, Heavy-Duty, Indoor and Outdoor Applications

Technical Specifications

• Wire Gauge Range:
  • Copper: AWG 14 to AWG 3
  • Aluminum: AWG 12 to AWG 3
• Connection Type: Lug Terminals
• Dual Cover Interlock for Enhanced Safety
• Suitable for Indoor and Outdoor Installations
• Designed for Harsh and Corrosive Environments

Certifications and Standards

• UL Listed
• RoHS Compliant
• EU Compliant

Features and Benefits

• Fusible design provides both disconnect functionality and overcurrent protection.
• Heavy-duty construction ensures reliable performance in demanding industrial environments.
• Type 4X stainless steel enclosure offers superior corrosion and weather resistance.
• Dual cover interlock enhances operator safety during maintenance and operation.
• Surface-mount design allows easy installation and accessibility.
• 3-pole configuration supports three-phase electrical systems.
• Suitable for service entrance, power distribution, and motor control applications.
• Designed for both indoor and outdoor installations requiring maximum environmental protection.

Applications

• Industrial Facilities
• Manufacturing Plants
• Food and Beverage Processing Facilities
• Water and Wastewater Treatment Plants
• Marine and Coastal Installations
• Service Entrance Applications
• Power Distribution Systems
• Equipment Isolation and Maintenance Disconnects

Product Summary

• Brand: Square D
• Model: VH362DSGL
• Current Rating: 600A
• Voltage Rating: 600V AC/DC
• Poles: 3
• Fusibility: Fusible
• Mounting Type: Surface Mount
• Enclosure: NEMA 4X, 304 Stainless Steel
• Duty Rating: Heavy Duty
• Series: VH Series
• Contact Configuration: 3PST
• Application: Indoor and Outdoor Heavy-Duty Disconnect Applications
