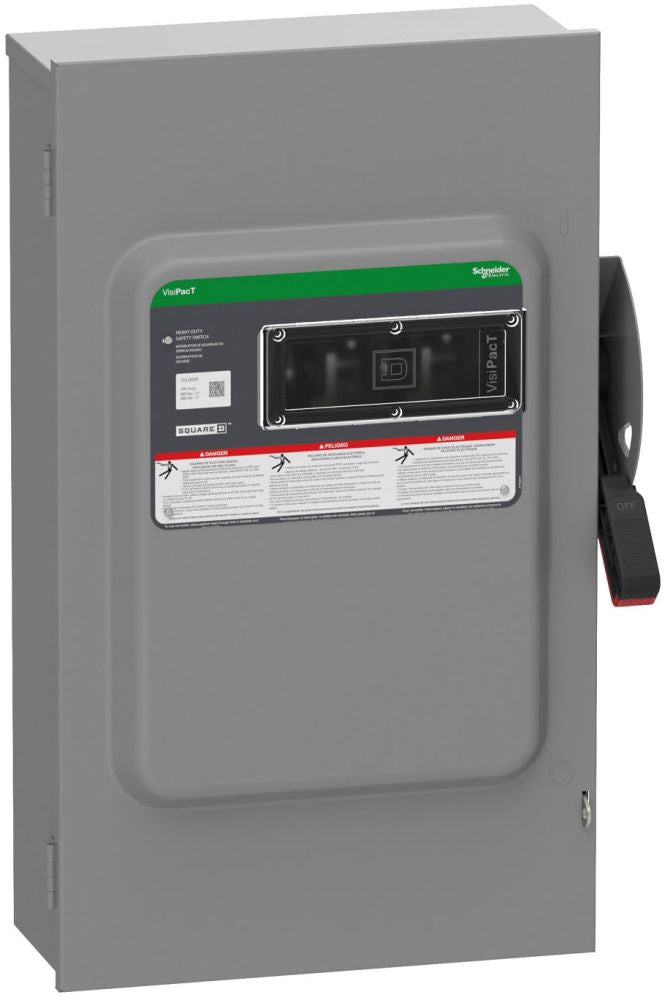

The Square D VH363N Safety Switch is a heavy-duty fusible disconnect switch designed for commercial, industrial, and service entrance applications. Part of the Square D VisiPacT Series by Schneider Electric, this 100 Amp, 3-Pole safety switch provides reliable circuit isolation and overcurrent protection when used with appropriate fuses. Featuring a durable galvanized steel NEMA 1 enclosure, dual cover interlock, and surface-mount design, the VH363N is ideal for power distribution, motor control, and equipment maintenance applications requiring dependable safety and performance.
Voltage and Rating
- Current Rating: 100 Amps
- Voltage Rating: 600 Volts AC / DC
- Phase: 3-Phase
Key Specifications
- Manufacturer: Square D / Schneider Electric
- Model Number: VH363N
- Series: VisiPacT
- Product Type: Safety Switch
- Disconnect Type: Fusible
- Number of Poles: 3-Pole
- Contact Configuration: 3PST
- Action: Single Throw
- Duty Rating: Heavy Duty
- Mounting Type: Surface Mount
- Number of Wires: 4
- Terminal Connection: Lugs
- Enclosure Rating: NEMA 1
- Enclosure Material: Galvanized Steel
- Application: Service Entrance and Heavy-Duty Applications
Technical Specifications
- Wire Gauge Range:
- AWG 12 to AWG 1/0 Copper or Aluminum
- AWG 14 to AWG 1/0 Copper or Aluminum
- Connection Type: Lug Terminals
- Dual Cover Interlock for Enhanced Safety
- Suitable for Indoor Installations
Certifications and Standards
- UL Listed
- RoHS Compliant
- REACh Compliant
- Meets Applicable International Standards
Features and Benefits
- Fusible design provides circuit protection and disconnect functionality in a single device.
- Heavy-duty construction ensures long service life in demanding environments.
- Dual cover interlock enhances operator safety during maintenance and operation.
- Surface-mount configuration allows convenient installation.
- 3-pole design supports three-phase electrical systems.
- Galvanized steel enclosure offers durability and corrosion resistance.
- Suitable for service entrance, power distribution, and motor control applications.
- Part of the trusted Square D VisiPacT Series for dependable performance.
Applications
- Commercial Buildings
- Industrial Facilities
- Manufacturing Plants
- Service Entrance Installations
- Motor Control Centers
- Power Distribution Systems
- Equipment Isolation and Maintenance Disconnects
- Electrical Infrastructure Projects
Product Summary
- Brand: Square D
- Model: VH363N
- Current Rating: 100A
- Voltage Rating: 600V AC/DC
- Poles: 3
- Fusibility: Fusible
- Mounting: Surface Mount
- Enclosure: NEMA 1 Galvanized Steel
- Duty Rating: Heavy Duty
- Series: VisiPacT Series
- Type Switches
- Vendor Square D
- Brand Square D
