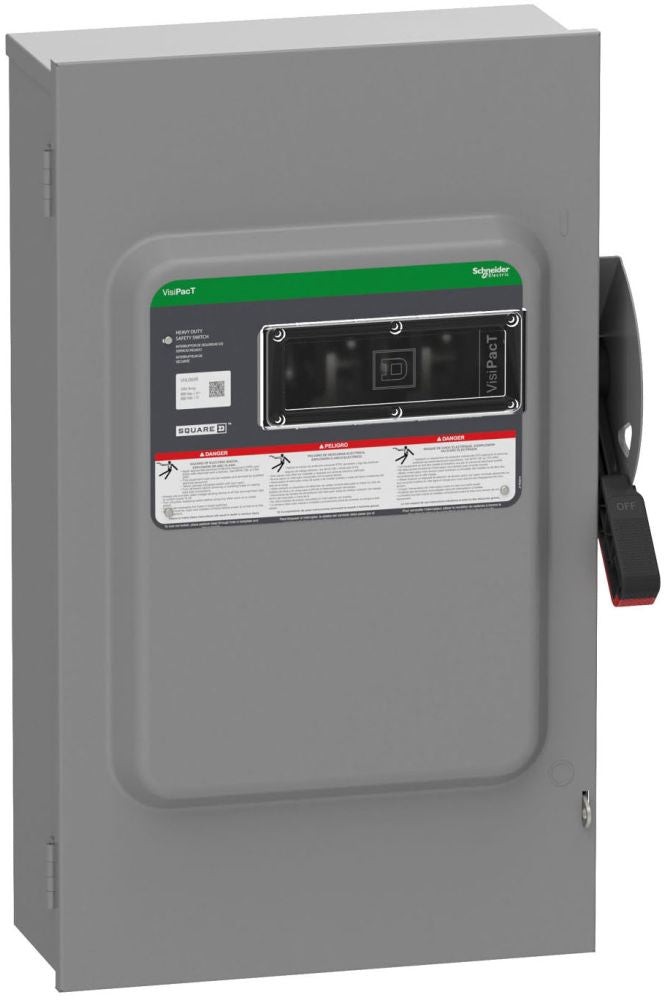

The Square D VH364R Safety Switch is a heavy-duty disconnect switch designed for reliable power isolation in commercial, industrial, and service entrance applications. Part of the Square D VisiPacT Series by Schneider Electric, this 200 Amp, 3-Pole safety switch features a NEMA 3R enclosure suitable for indoor and outdoor installations. Its rugged construction, surface-mount design, and dependable disconnect mechanism make it ideal for power distribution systems, motor control applications, and equipment maintenance operations.
Voltage and Rating
- Current Rating: 200 Amps
- Maximum Current: 200 Amps
- Voltage Rating: 600 Volts AC/DC
Key Specifications
- Manufacturer: Square D / Schneider Electric
- Model Number: VH364R
- Product Type: Safety Switch
- Series: VisiPacT Series
- Number of Poles: 3-Pole
- Mounting Type: Surface Mount
- Terminal Type: Lugs
- Enclosure Rating: NEMA 3R
- Enclosure Type: Type 3R
- Unit of Measure: EA
Technical Specifications
- Wire Size: 6 AWG
- Operating Temperature: -30°C to 40°C
- Pole Configuration: 3-Pole
- Connection Type: Lug Terminals
- Suitable for Indoor and Outdoor Applications
- Designed for Reliable Circuit Isolation and Equipment Protection
Dimensions and Weight
- Height: 19.37 in
- Width: 8.31 in
- Length: 30.00 in
- Weight: 54.45 lbs
Product Data
- Brand: Square D
- Manufacturer Part Number: VH364R
- Manufacturer: Schneider Electric
- UNSPSC Code: 39120000
Features and Benefits
- Heavy-duty construction for demanding commercial and industrial environments.
- NEMA 3R enclosure provides protection against rain, sleet, and outdoor weather conditions.
- Surface-mount design allows convenient installation and accessibility.
- 200A current rating supports high-capacity power distribution applications.
- 3-pole configuration is suitable for three-phase electrical systems.
- Lug terminals provide secure conductor connections.
- Operates reliably in temperatures ranging from -30°C to 40°C.
- Part of the trusted Square D VisiPacT Series for durability and long-term performance.
Applications
- Commercial Buildings
- Industrial Facilities
- Manufacturing Plants
- Service Entrance Installations
- Power Distribution Systems
- Motor Control Applications
- Equipment Isolation and Maintenance Disconnects
- Indoor and Outdoor Electrical Installations
- Type Switches
- Vendor Square D
- Brand Square D
