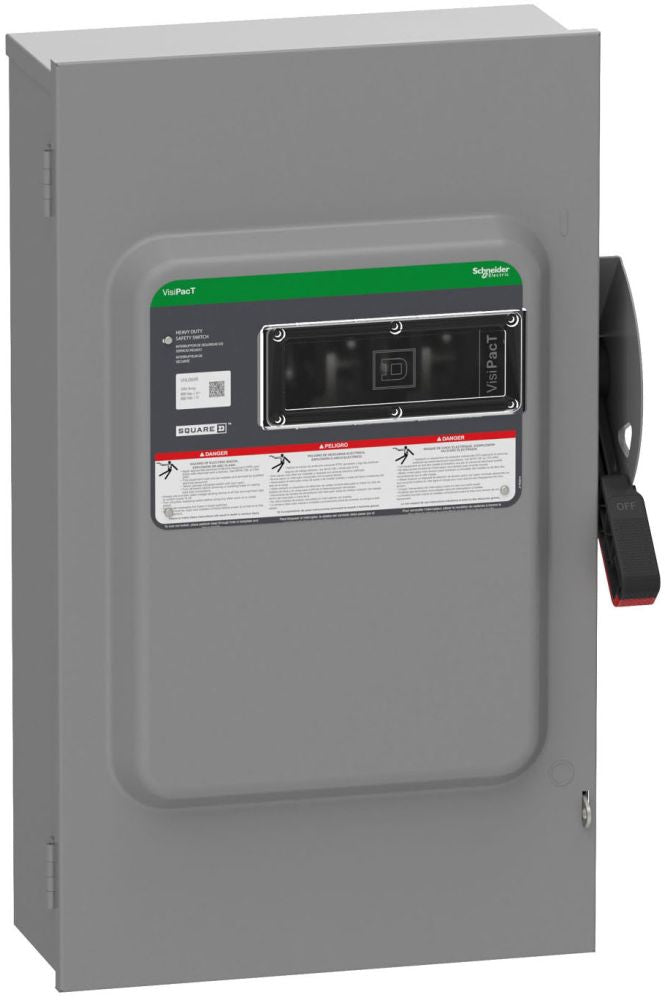

Square D VHU363DSGL 100A 3-Pole Safety Switch – Surface Mount – 600V AC/DC

The Square D VHU363DSGL Safety Switch is a heavy-duty disconnect switch designed for demanding commercial and industrial applications. Part of the VisiPacT Series from Schneider Electric, this 100 Amp, 3-Pole safety switch features a durable NEMA 4X enclosure that provides superior protection against corrosion, dust, water, and harsh environmental conditions. Its surface-mount design and rugged construction make it an ideal solution for power distribution, motor control, and equipment isolation applications requiring reliable performance and long service life.

Voltage and Rating

• Current Rating: 100 Amps
• Voltage Rating: 600 Volts AC/DC

Key Specifications

• Brand: Square D
• Manufacturer: Schneider Electric
• Model Number: VHU363DSGL
• Series: VisiPacT Series
• Product Type: Safety Switch
• Number of Poles: 3-Pole
• Mounting Type: Surface Mount
• Enclosure Rating: NEMA 4X
• Enclosure Type: Type 4X
• Unit of Measure: EA

Technical Specifications

• Operating Temperature: -30°C to 40°C
• Suitable for Commercial and Industrial Applications
• Designed for Reliable Circuit Isolation and Equipment Protection
• Heavy-Duty Construction for Harsh Environments

Dimensions and Weight

• Height: 7.50 in
• Width: 11.37 in
• Length: 22.62 in
• Weight: 24.03 lbs

Product Data

• Manufacturer Part Number: VHU363DSGL
• UNSPSC Code: 39120000

Features and Benefits

• NEMA 4X enclosure provides excellent protection against corrosion, moisture, dust, and washdown environments.
• Surface-mount design allows convenient installation in industrial and commercial facilities.
• 3-pole configuration is suitable for three-phase electrical systems.
• 100A current rating supports a wide range of disconnect and isolation applications.
• Designed for dependable operation in temperatures ranging from -30°C to 40°C.
• Part of the trusted Square D VisiPacT Series for enhanced durability and performance.
• Ideal for power distribution, motor control, and equipment maintenance applications.

Applications

• Industrial Facilities
• Manufacturing Plants
• Food and Beverage Processing
• Water and Wastewater Facilities
• Commercial Buildings
• Power Distribution Systems
• Equipment Isolation and Maintenance Disconnects
• Corrosive and Washdown Environments Requiring NEMA 4X Protection
